• Model NO.：TQSF-80
• Warranty：Remove Stones, Glass, Metal, Soilblocks
• Voltage：220-600V Can Be Customized
• Has Been Exported to：Australia, Africa, Southest Asia
• Factory Production Equipment：American Plasma Cutter, Laser Cutter,
• Transport Package：Wooden Case
• Specification：ISO9001: 2008, TUV, SGS
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：30sets Per Month

Basic Info.

Model NO. TQSF-80 Warranty Remove Stones, Glass, Metal, Soilblocks Voltage 220-600V Can Be Customized Has Been Exported to Australia, Africa, Southest Asia Factory Production Equipment American Plasma Cutter, Laser Cutter, Transport Package Wooden Case Specification ISO9001: 2008, TUV, SGS Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 30sets Per Month

Product Description

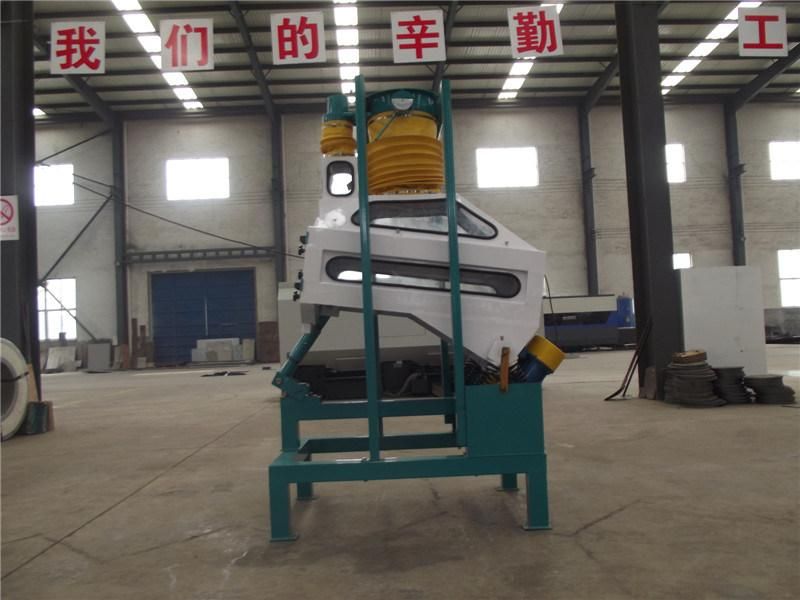

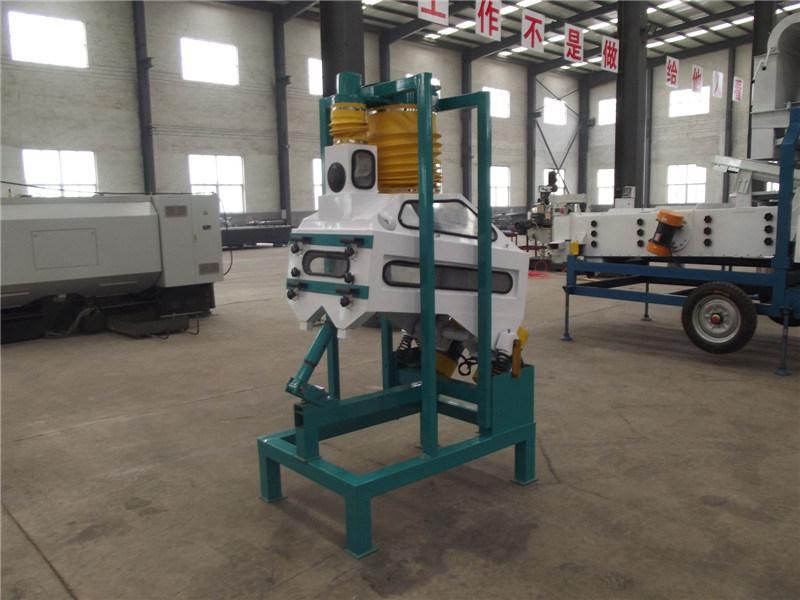

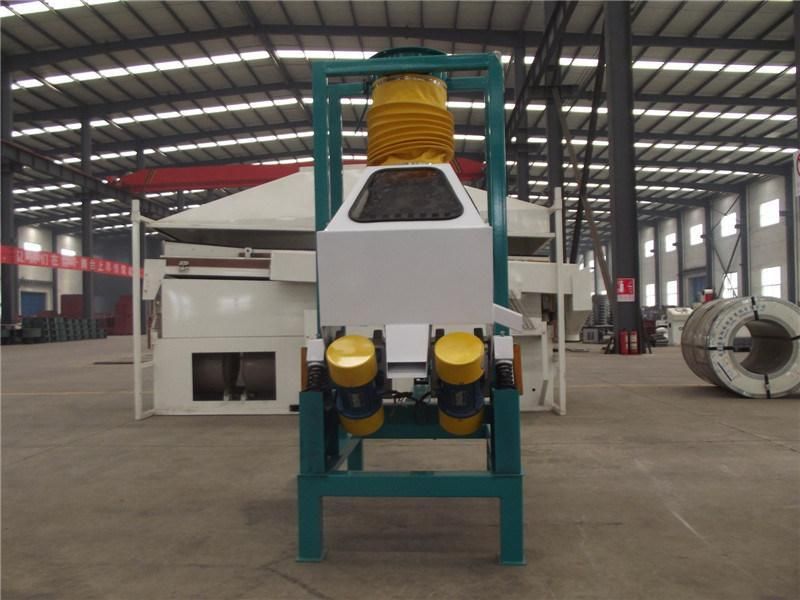

stone removing machine

Model: TQSF-80
Capacity: 7500kg/h
Function: remove stones, glass, metal , soilblock etc from grain

Introduction of TQSF-80 stone removing machine
TQSF-80 stone removing machine is applied for efficient separation of stones and pebbles, glass, and other high-density impurities from the grain or seed.

Principle of TQSF-80 stone removing machine
TQSF-80 stone removing machine is the suction type destoner, and its work principle is based on the difference in specific weight of materials. The working table is covered with a woven wire mesh bed, through which air flows from below. Heavy impurity such as stone is not lifted by the air cushion and stay on the mesh bed. The vibratory motion of the table causes the heavy impurity transported to the beginning of the regulating plate at far end of the machine.

Features of TQSF-80 stone removing machine
The TQSF-80 stone removing machine is widely used for processing all kinds of grains or seeds, and it has the reliable performance and large capacity. This destoner with small size is very convenient to operate.

There are two sieve layers in inside the vibrating body. The first sieve layer is mainly used for removing large impurities. The second sieve layer is used to remove the stones.


Model	TQSF-60 Destoner	TQSF-80 Destoner	TQSF-100 Destoner
Capacity	5000 kg	7500 kg	10000 kg
Power	3.5 KW	3.5 KW	3.5 KW
Dimension (L*W*H)	1450×876×1800 mm	1450×1046×1800 mm	1450×1216×1800 mm
Weight	320 kg	400 kg	480 kg
