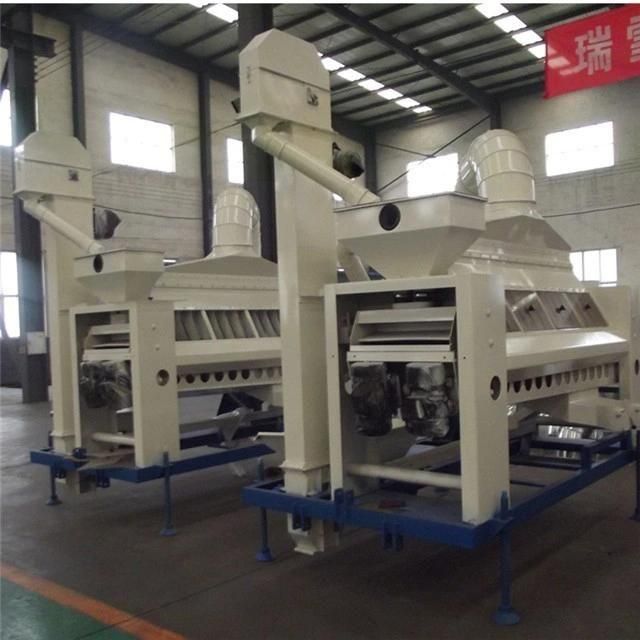

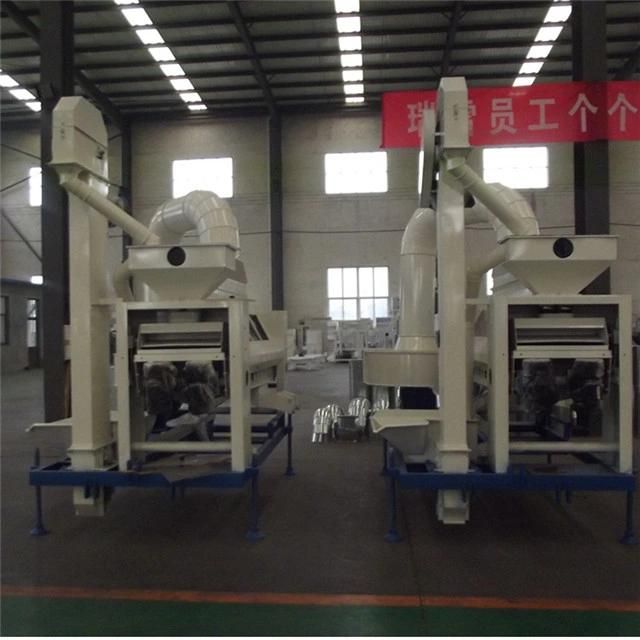

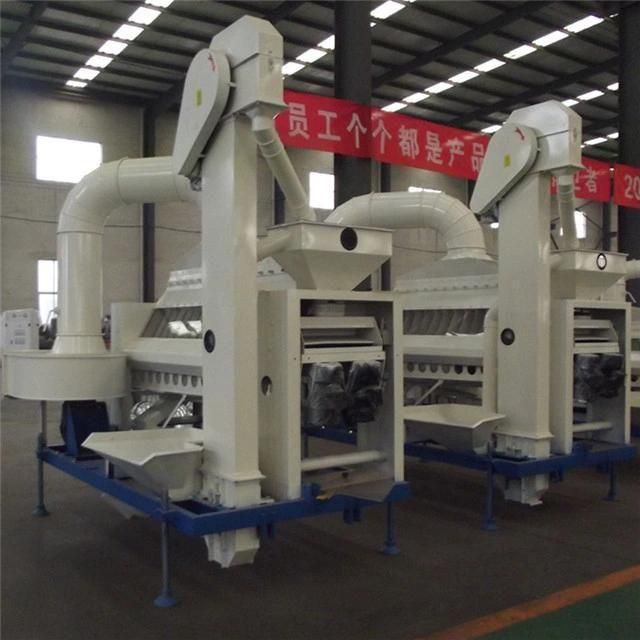

Suction Type Seed Grain Gravity Separator Machine (5XZ-5B)
Hebei Ruixue Grain Selecting Machinery Company Limited- Color：Green or White
- Power(Kw)：9
- Weight(Kg)：1550
- Capacity(T/H)：5
- Dimension：4000*1900*3100
- MOQ：1
Base Info
- Model NO.：5XZ-5B
- Cleaning Rate：98%
- Warranty：1 Year
- Application：Wheat, Maize, Barley, Paddy etc
- Function：Remove Immature, Moldy , Worm-Damaged Seed
- Transport Package：Wooden Case or Container
- Specification：ISO9001-2008, TUV, SGS SONKAP
- Trademark：SYNMEC
- Origin：China
- HS Code：84371090
- Production Capacity：1000 Set,Year
Description
Basic Info.
Model NO. 5XZ-5B Cleaning Rate 98% Warranty 1 Year Application Wheat, Maize, Barley, Paddy etc Function Remove Immature, Moldy , Worm-Damaged Seed Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/YearProduct Description
Suction Type Seed Grain Gravity Separator Machine (5XZ-5B)Introduction of Suction Type Seed Grain Gravity Separator Machine (5XZ-5B)
Suction Type Seed Grain Gravity Separator Machine (5XZ-5B) is the Suction Type with Dust Cyclone Separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed and grain which will be used for sowing.
Application of Suction Type Seed Grain Gravity Separator Machine (5XZ-5B)
Suction Type Seed Grain Gravity Separator Machine (5XZ-5B) can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The Beans Gravity Separator can be used to separate most kinds of seed and grains, such as coffee bean, wheat, barely, maize, corn, sunflower seed, etc.
Working Principle of Suction Type Seed Grain Gravity Separator Machine (5XZ-5B)
By air aspiration and sieve oscillation, the seed is fluidized and stratified. Heavy seed (good seed) sink into bottom layer of material on the sieve while the bad seed (light seed) suspends to the top layer. After stratified, materials go forward to the discharging part. Bottom layer good seed fall through the sieve discharge from outlets. The light seed with bad quality will be discharged directly. Mixture quality seed through sieves and return back to feeding hopper via vibrating material reflow gear.
| Model | Capacity (ton/hour) | Power (KW) | Weight (KG) | Dimension Length*Width*Height(mm) | Sieve Size Length*Width(mm) | Remarks |
| 5XZ-5B | 5 | 9 | 1550 | 4000*1900*3100 | 2000*625 | Air Suction Type |
