• Model NO.：5XZ-6
• Function：Remove Immature, Insect-Damaged Seed
• Warranty：1 Year
• Delivery Time：5-15 Days After Receiving Advance Payment
• Feature：Blowing Type Gravity Separator
• Transport Package：Usually Wooden Case or as to Order
• Specification：ISO9001-2008, TUV, SGS
• Trademark：SYNMEC
• Origin：China
• HS Code：8437109000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 5XZ-6 Function Remove Immature, Insect-Damaged Seed Warranty 1 Year Delivery Time 5-15 Days After Receiving Advance Payment Feature Blowing Type Gravity Separator Transport Package Usually Wooden Case or as to Order Specification ISO9001-2008, TUV, SGS Trademark SYNMEC Origin China HS Code 8437109000 Production Capacity 50 Sets Per Month

Product Description

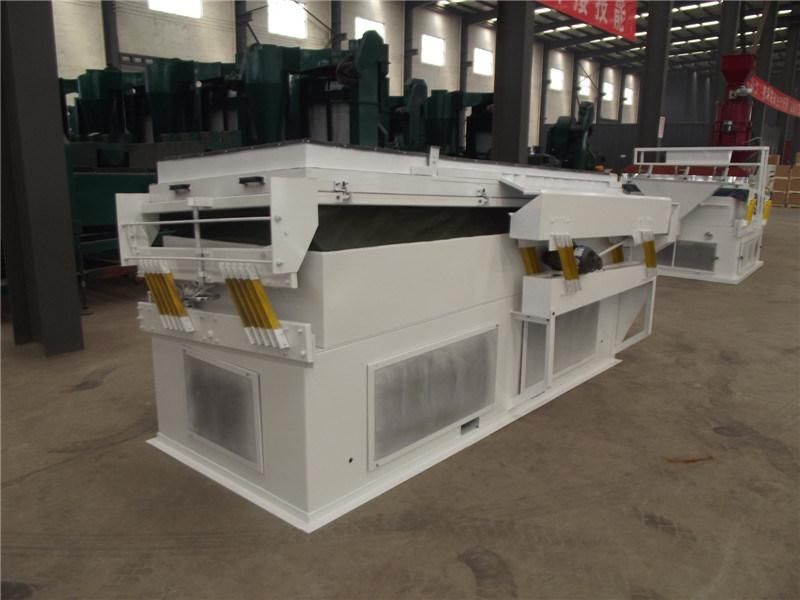

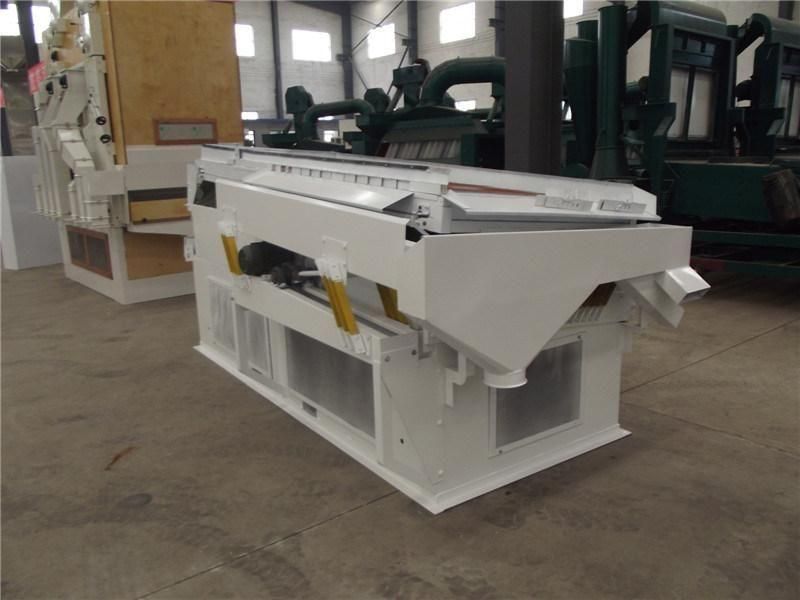

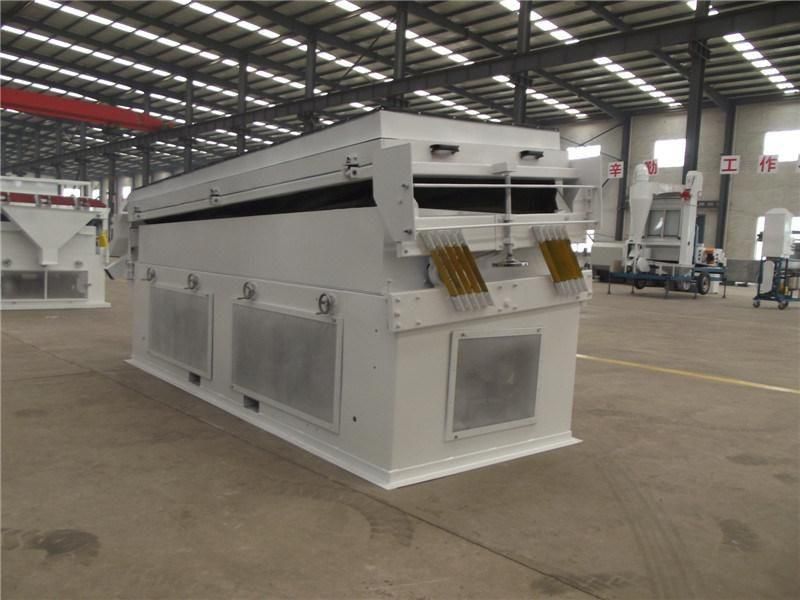

5XZ-6 separating pulp and seed machine

Introduction of 5XZ-6 separating pulp and seed machine
5XZ-6 separating machine is the blowing type , used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.

Application of 5XZ-6 separating pulp and seed machine
The separating machine can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product.it can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
The gravity separating machinery also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.

Working Principle of 5XZ-6 separating pulp and seed machine
The separating machine works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.


Model No.	Capacity(T/H)	Power(KW)	Weight(KG)	Sieve Size	Dimensions(MM)	Remarks
5XZ-3B	3	4.25	1100	2000×325	4000×1800×2900	Suction Type
5XZ-5B	5	9	1550	2000×625	4000×2050×3100	Suction Type
5XZ-3A	3	5	1200	2000×325	4000×1800×2750	Suction Type with Dust Cylone Separator
5XZ-5A	5	9.75	1600	2000×475	4000×1900×3100	Suction Type with Dust Cylone Separator
5XZ-6	5	8.95	2500	3900×1550	4300×1960×2500	Blow Type
