Alfalfa Azuki Bean Peanut Gravity Seed Separator
Hebei Ruixue Grain Selecting Machinery Company Limited- Model：5xz-3
- Capacity(T/H)：3000 Kg,H
- Dimension (L*W*H)：2600*1500*2100
- Weight (Kg)：1300kg
- Function：Remove Immature, Moldy , Insect Damaged Seed
- Application：All Kinds of Seed Grain Bean Pulse and Cereals
Base Info
- Model NO.：5XZ-3
- Warranty：1 Year
- Delivery Time：10-15 Days After Receiving Advance Payment
- Color：White Color
- Advantage：Blowing Type Gravity Separator
- Transport Package：Wooden Case or Container
- Specification：ISO9001: 2008, TUV, SGS SONKAP
- Trademark：SYNMEC
- Origin：China
- HS Code：84371090
- Production Capacity：50 Set,Month
Description
Basic Info.
Model NO. 5XZ-3 Warranty 1 Year Delivery Time 10-15 Days After Receiving Advance Payment Color White Color Advantage Blowing Type Gravity Separator Transport Package Wooden Case or Container Specification ISO9001: 2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 50 Set/MonthProduct Description

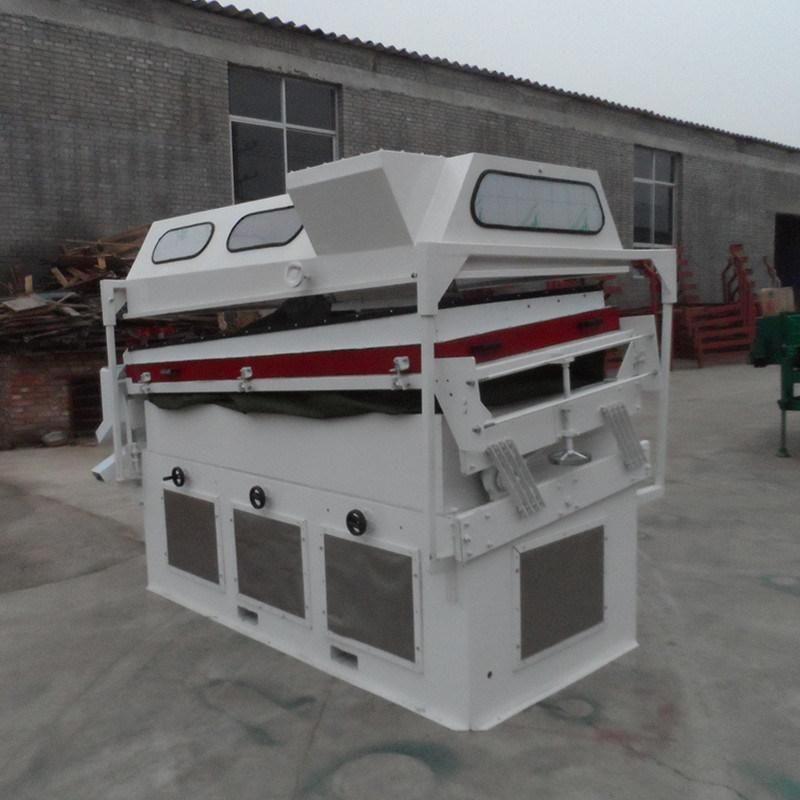

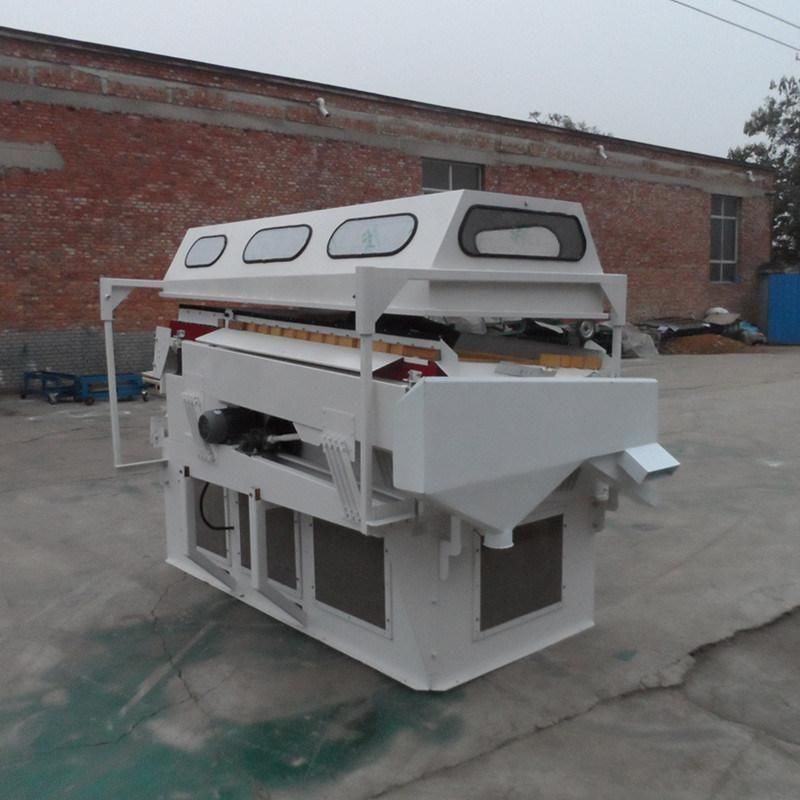

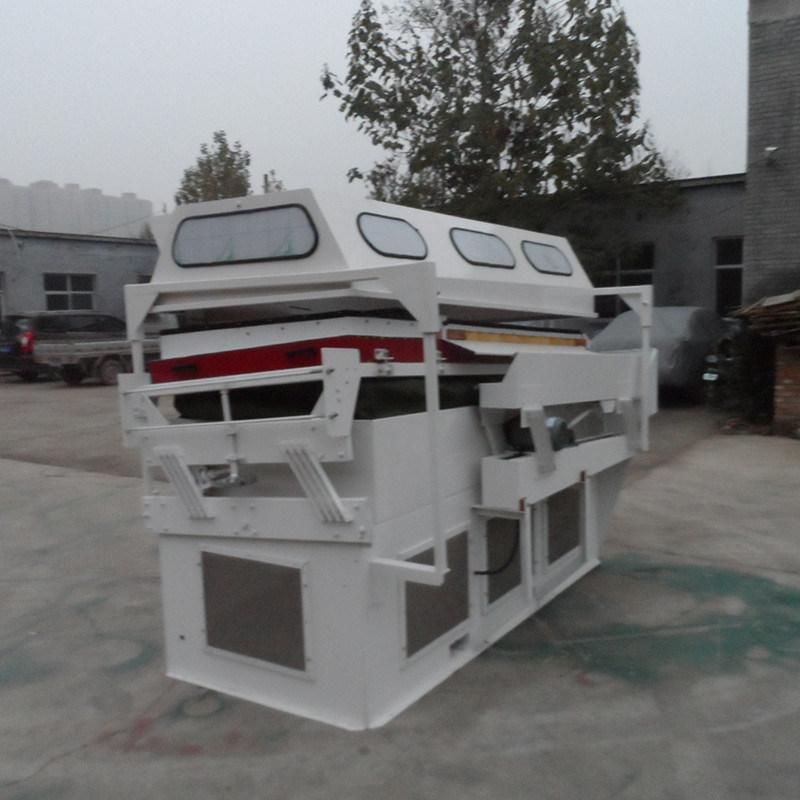

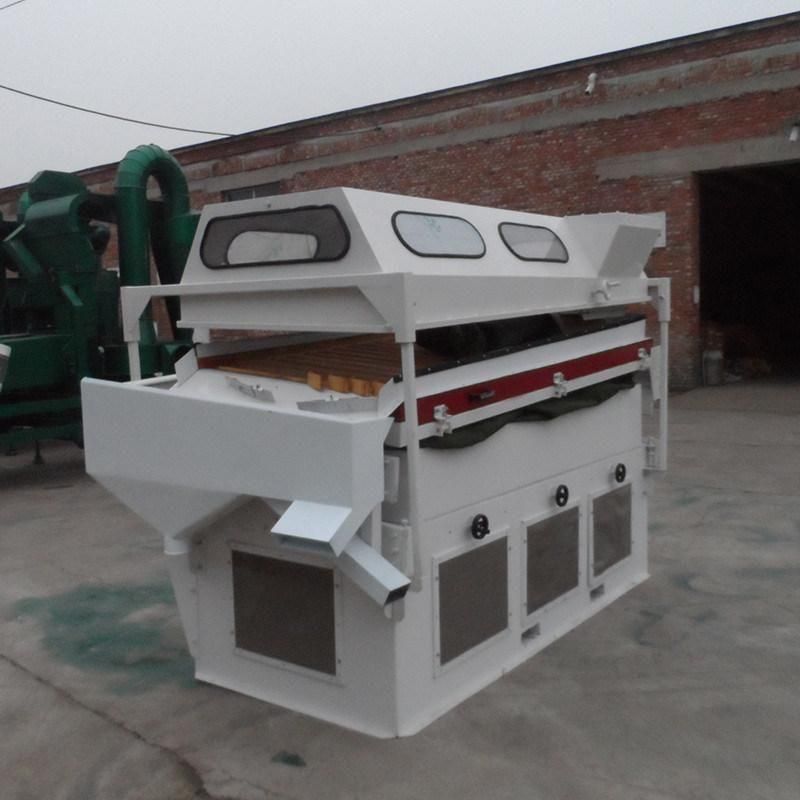

5XZ-3 gravity seed separatorIntroduction of 5XZ-3 gravity seed separator
5XZ-3 Gravity Seed Separator is the blowing type .Gravity Seed Separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.
Application of 5XZ-3 gravity seed separator
The Gravity Seed Separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The High Quality Stanard Gravity Separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
The Gravity Seed Separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.
Working Principle of 5XZ-3 gravity seed separator
The Gravity Seed Separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Specification of 5XZ-3 gravity seed separator
| Model | Capacity (KG/H) | Power(KW) | Weight(KG) | Dimension(mm) |
| 5XZ-3 | 3000 | 7.45 | 1300 | 2600*1500*2100 |
| 5XZ-6 | 5000 | 8.95 | 2000 | 3440*1630*1900 |
| 5XZ-10 | 10000 | 15 | 2500 | 4300*1960*2500 |
