• Model NO.：5XZ-5B
• Features：Suction Type Gravity Separator
• Warranty：1 Year
• Delivery Time：5-15 Days After Receiving Advance Payment
• Min Order Qty：1 Set
• Transport Package：Wooden Case or Container
• Specification：ISO9001: 2008, SGS, TUV
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：50sets,Month

Basic Info.

Model NO. 5XZ-5B Features Suction Type Gravity Separator Warranty 1 Year Delivery Time 5-15 Days After Receiving Advance Payment Min Order Qty 1 Set Transport Package Wooden Case or Container Specification ISO9001: 2008, SGS, TUV Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 50sets/Month

Product Description

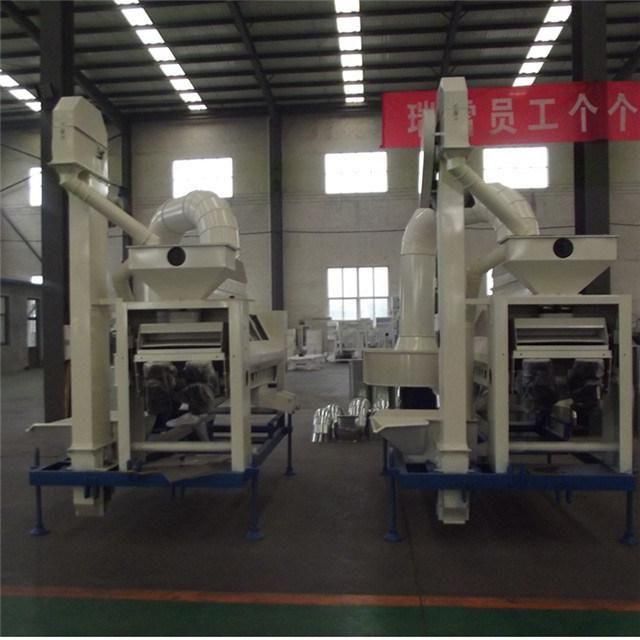

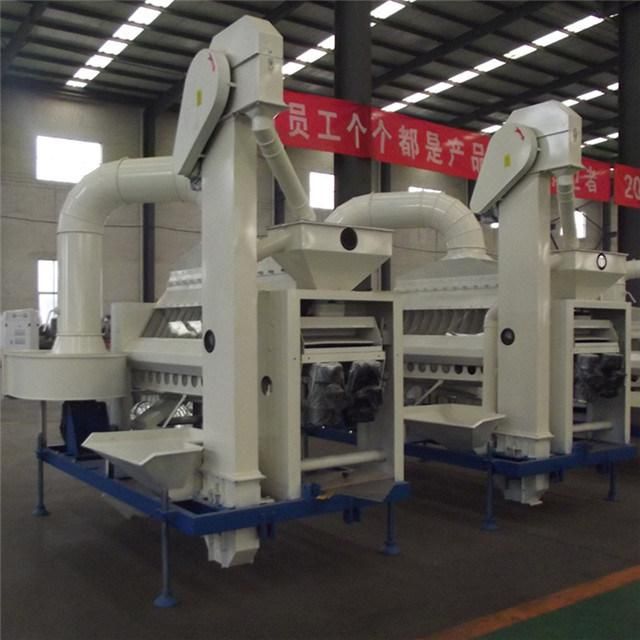

grain separator machine (5XZ-5B)

Introduction of grain separator machine

Our 5XZ-5B has double vibratory motors. The best separator for wheat in the world, it can separate the barley and oat from wheat. It has the perfect performance as far as the blow type.

Functions: It can remove budding seed, damaged seed (by insect), moldy seed, non-viable seed, seed with smut and seed with shell etc.

The 5XZ-5B grain separator machine has upgraded, which has two vibratory motors. The gravity separator works without rubber vibration absorbers. It proves to be time-saving, more efficient and durable.

Application of 5XZ-5B grain separator machine
The grain separator machine can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The gravity separator can be used to separate most kinds of seed and grains, such as coffee bean, wheat, barely, maize, corn, sunflower seed, etc.

Working Principle of 5XZ-5B grain separator machine
By air aspiration and sieve oscillation, the seed is fluidized and stratified. Heavy seed (good seed) sink into bottom layer of material on the sieve while the bad seed (light seed) suspends to the top layer. After stratified, materials go forward to the discharging part. Bottom layer good seed fall through the sieve discharge from outlets. The light seed with bad quality will be discharged directly. Mixture quality seed through sieves and return back to feeding hopper via vibrating material reflow gear.




Model No.	Capacity(T/H)	Power(KW)	Weight(KG)	Sieve Size	Dimensions(MM)	Remarks
5XZ-3B Gravity Separator	3	4.25	1100	2000×325	4000×1800×2900	Suction Type
5XZ-5B Gravity Separator	5	9	1550	2000×625	4000×2050×3100	Suction Type
5XZ-3A Gravity Separator	3	5	1200	2000×325	4000×1800×2750	Suction Type with Dust Cylone Separator
5XZ-5A Gravity Separator	5	9.75	1600	2000×475	4000×1900×3100	Suction Type with Dust Cylone Separator
5XZ-5 Gravity Separator	5	13.2	2350	3360×1420	3900×1700×1750	Blow Type
