• Material：PVC
• Type：Push Sprayer
• Working Width：6-12m
• Matching Power：15-100HP Tractor
• Color：Customized
• Transport Package：Iron Shelf
• Specification：800L, 1000L,1200L
• Trademark：OEM
• Origin：Shandong, China
• Production Capacity：100000 Units, Year

Basic Info.

Material PVC Type Push Sprayer Working Width 6-12m Matching Power 15-100HP Tractor Color Customized Transport Package Iron Shelf Specification 800L/ 1000L/1200L Trademark OEM Origin Shandong, China Production Capacity 100000 Units/ Year

Product Description

Introduction of 3W series pensile sprayer:
1. The 3W series pensile spray-bar spray-spraying machine is a new type of spray-spraying machine with three points suspended behind the tractor.The sprayer is flexible in use and simple in operation, and is suitable for spraying chemical herbicide, insecticide and leaf surface fertilizer on various dryland crops.Widely used in soybean, wheat, rice, cotton, potato and other crops as well as forage grass, garden flowers and other plants pre-sowing soil treatment, seedling period of grass, and pest control.
2. Special anticorrosive materials are used in the potion pipeline with excellent corrosion resistance.The liquid pump USES the double cylinder diaphragm pump, the working pressure is stable, the spray is even.The height of spray rod is adjustable.Spray parts are equipped with drip proof nozzle to avoid leakage of residual liquid in pipeline.
Technical parameters:


Model	3W-200-6	3W-300-6	3W-400-6	3W-400-8	3W-500-10	3W-650-10	3W-1000-10	3W-500-12	3W-650-12	3W-1000- 12	3W-1000-14
Medicine chest volume (liter)	200	300	400	400	500	650	1000	500	650	1000	1000
Spray amplitude (m)	6	6	6	8	10	10	10	12	12	12	14
Nozzle arm	3	3	3	5	5	5	5	5	5	5	7
Nozzles number (PCS)	13	13	13	17	21	21	21	25	25	25	29
Input shaft speed (RPM)	540	540	540	540	540	540	540	540	540	540	540
Rated spray pressure (kg/cm 2)	25~45	25~45	25~45	25~45	25~45	25~45	25~45	25~45	25~45	25~45	25~45
Liquid pump flow rate (l/min)	30~100	30~100	30~100	30~100	30~100	30~100	30~100	30~100	30~100	30~100	30~100
Working efficiency (ha/h)	4.2	4.2	4.2	5.6	7	7	7	8.4	8.4	8.4	9.8
Supporting power (horsepower)	15~30	20~40	20~40	20~40	25~50	65~80	70~100	25~50	65~80	70~100	70~100



Our Services

    Prompt attention to all of your inquiries and positive attitude;

    Most competitive cost and superior quality;

      We win good reputation because adhering to "Survival by Quality, Development by Technology & Credit".

      Welcome OEM.

      Provide complete technical guide after-sale services.



FAQ

    About the package: Iron frame or iron frame box. We try to save a space, and ensure easy installation after the arrival of the goods.

    About MOQ: The machine MOQ is one set. The spare part MOQ is 500 pieces.

    About customize service:We welcome OEM, processing with supplied drawings and samples.

    About shipping: We ship the goods by sea in Qingdao port. If you have no a shipper, we will choose a reliable and cheap one to ship.

    About payment: 1.T/T 30% deposit, 70% before shippment ( after inspection); 2.L/C at sight; FOB Qingdao price, because the different goods so different weight, volume, for saving time to calculate.

What We Ensure

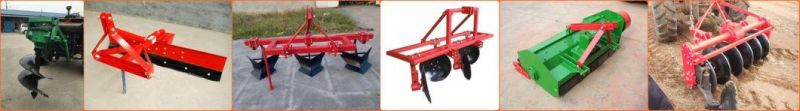

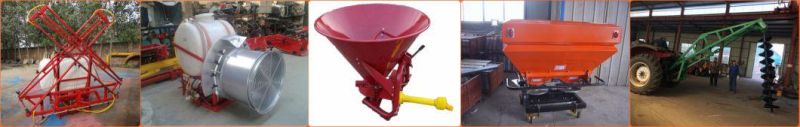

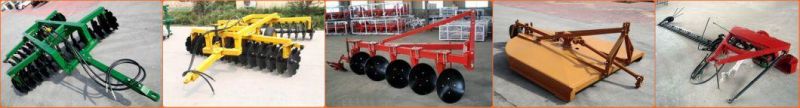

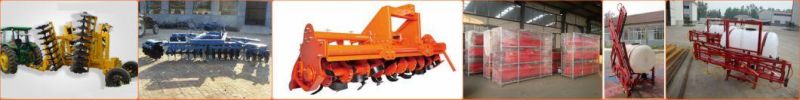

Other Agricultural Machinery
