• Model NO.：FGSX-00
• Material：Galvanizing
• Ambient Temperature：-10ºC~+40ºC
• Transport Package：Other
• Specification：3360× 1270× 3550mm
• Trademark：Jianhua
• Origin：Shandong
• HS Code：8438500000
• Production Capacity：600 Head,Hour

Basic Info.

Model NO. FGSX-00 Material Galvanizing Ambient Temperature -10ºC~+40ºC Transport Package Other Specification 3360× 1270× 3550mm Trademark Jianhua Origin Shandong HS Code 8438500000 Production Capacity 600 Head/Hour

Product Description

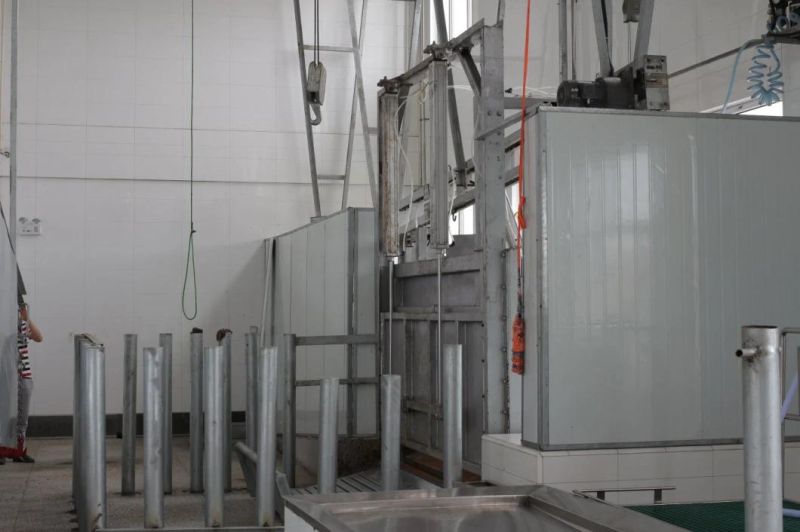

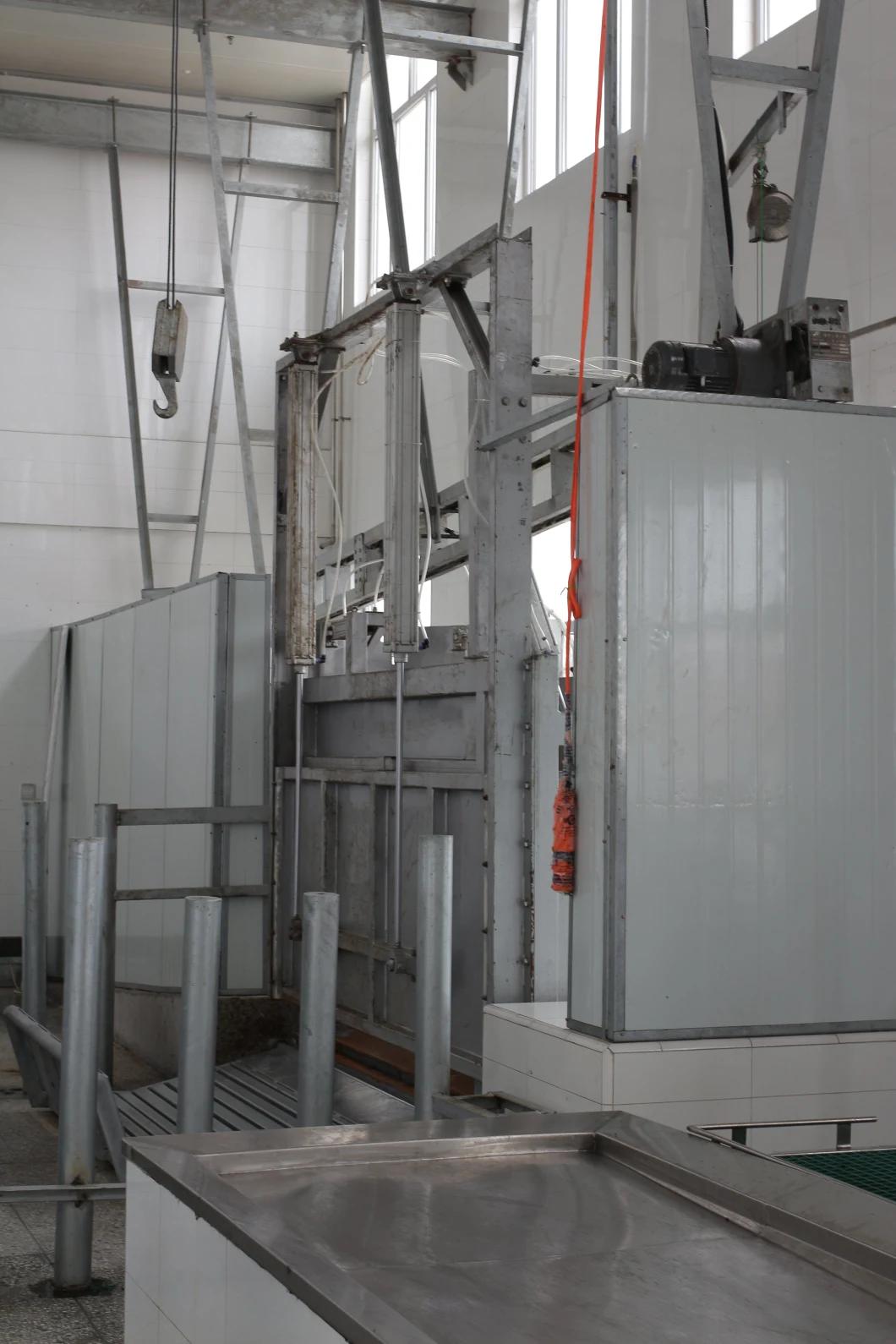

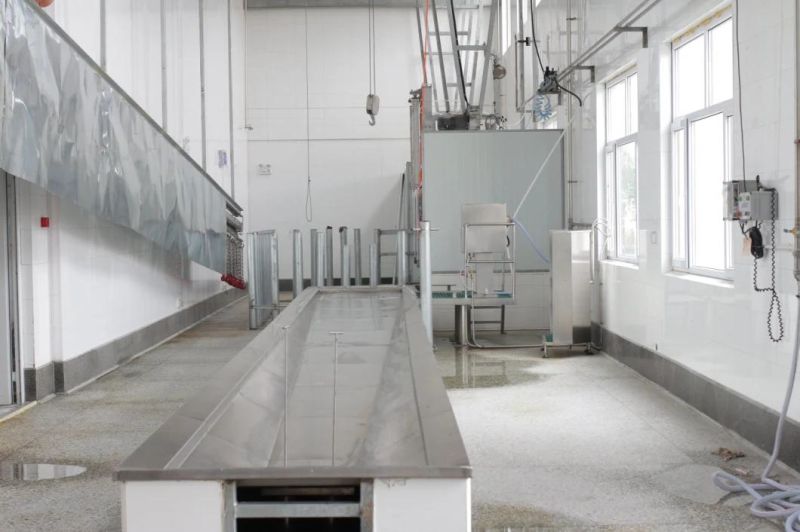

Cattle/Cow Fully New Bloodletting Orbital Delivery System Slaughtering Machine
The system is an advanced automatic line introduced by our company, which is suitable for all large and medium-sized slaughterhouses. The full set of equipment consists of drive mechanism, tightening mechanism, rotary mechanism, transmission chain and so on. The automatic transmission line adopts the adjustment of driving mechanism, tightening mechanism and rotary mechanism to make the transmission chain move evenly and smoothly in the double-groove steel track. After the assassination, the cattle are promoted to the bloodletting and skinning conveyor by the lifting mechanism, and the push head on the transmission chain drives forward the bloodletting chain on the pipe rail and drives the cattle carcass forward. The cattle carcass can reach every working station, and the cattle will be transported automatically in the process, and the whole process will not stop continuously, which has very high production efficiency. It solves a series of problems such as pushing cattle carcass forward manually, consuming a lot of energy and low efficiency when other push lines are used in China.




 the point of operation safety
1) It is strictly forbidden to extend other things such as hands into the machine when the machine is in operation, so as to prevent injury to the person or damage the machine;
2) If the machine has abnormal working sound, stop the machine immediately to prevent the machine from being damaged, and the personnel are injured;
3) the machine must be cleaned and maintained at the time of stopping, and make sure that the power supply has been cut off and the signboard is hung;
4) when the work is finished, turn off the power supply;
5) the operator shall have knowledge of the operation of machinery and electrical appliances and be in good health;
6) The operator shall be familiar with the structure, service performance, safety procedures and the instructions of the machine;
7) The operators shall be subject to post training and work with certificates;
8) daily inspection before each shift operation;
9) The user must establish the necessary rules and regulations and safety operation procedures.




repair
Repair, adjust or replace parts immediately if they do not meet the requirements. The following requirements should be achieved in maintenance:
1) the replacement should be the same as the raw material performance during maintenance;
2) maintenance and repair shall not be allowed when the machine is in working condition.

Inspection, maintenance, maintenance and troubleshooting methods:
1) Lubricating the rotating part frequently;
2) cleaning the equipment after each work to keep the body clean inside and outside;
3) because the machine is working in vibration state, the connecting bolt should be checked for looseness in the process of use.
