• Model NO.：4G150
• Portable Harvester Type：Side Hanging Type
• Certification：ISO9001:2008, CE
• Color：Red
• Condition：New
• Application Field：Agriculture
• Engine：9 Horsepower
• Warranty Time：1 Year After Shipment at The Port of Destination
• Delivery Time：15-30 Days
• Payment：T,T30% in Advance, 70% Before Shipment
• Transport Package：SKD,CBU
• Specification：1800*1070*650
• Trademark：FUBANG
• Origin：Shandong, China
• HS Code：8701921000
• Production Capacity：2000 PCS,Year

Basic Info.

Model NO. 4G150 Portable Harvester Type Side Hanging Type Certification ISO9001:2008, CE Color Red Condition New Application Field Agriculture Engine 9 Horsepower Warranty Time 1 Year After Shipment at The Port of Destination Delivery Time 15-30 Days Payment T/T30% in Advance, 70% Before Shipment Transport Package SKD/CBU Specification 1800*1070*650 Trademark FUBANG Origin Shandong, China HS Code 8701921000 Production Capacity 2000 PCS/Year

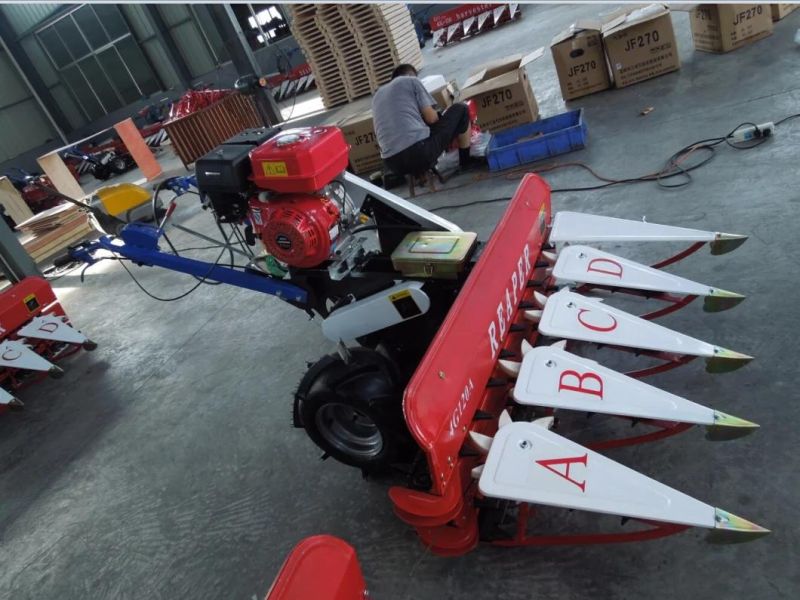

Product Description



Model	4G100	4 G 120	4G150
Type of Cutting Table	Standing-Typed	Standing-Typed	Standing-Typed
Cutting Width (mm)	1000	1200	1500
Min Cutting Height (mm)	≥50	≥50	≥50
Placing Type	Sidewise & Banded Placed	Sidewise & Banded Placed	Sidewise & Banded Placed
Productivity (M2)	2000-2300square meters per hour	2000-2300square meters per hour	2000-2300square meters per hour
Overall        Dimensions        (mm) (L*W*H)	1300*1070*650	1450*1070*650	1800*1070*650
Total Weight (Kg)	G.W.:210KGS    N.W.: 180KGS	G.W.:260KGS    N.W.: 210KGS	G.W.:290KGS    N.W.: 250KGS
Matched Power (kw) diesel engine	3.64    (4.5 horsepower) (choice 1) Diesel consumption:1.5L-2.4L/ACRE	3.64    (4.5 horsepower)        (choice 1) Diesel consumption:1.5L-2.4L/ACRE	3.64    (4.5 horsepower)  (choice 1) Diesel consumption:1.5L-2.4L/ACRE
Matched      power(kw)     gasoling engine	6.6      (9 horsepower)  (choice 2)Gasoline consumption:3.3L-4.9L/ACRE	6.6      (9 horsepower)          (choice 2) Gasoline consumption:3.3L-4.9L/ACRE	6.6      (9 horsepower) (choice 2) Gasoline consumption:3.3L-4.9L/ACRE
Teeth Space (mm)	127	127	127
Running Speed of Crank (r/min)	550	550	550
Diameter of Star Wheel (mm)	280	280	280
Working Speed (km/h)	2.6~3.6	2.6~3.6	2.6~3.6
Chain Speed (m/s)	2.24	2.24	2.24
Number of Operator	1	1	1
	Loading capacity: 24pcs /20ft container 54pcs/40ft GP container. 72 pcs/40ft HC container. Each machine packed in a ply wooden case:    1.3*1.07*0.65M	Loading capacity: 24pcs /20ft container 48pcs/40ft GP container. 64 pcs/40ft HC container. Each machine packed in a ply wooden case:    1.45*1.07*0.65M	Loading capacity: 18pcs /20ft container 39pcs/40ft GP container. 52 pcs/40ft HC container. Each machine packed in a ply wooden case:    1.8*1.07*0.65M

About FUERWO

Shandong Fuerwo Agricultural Equipment Co.,Ltd is a big agricultural equipment manufacture company in domestic market, which integrates development, manufacture sales and service. Its main products are rice transplanter series,30-200 HP tractor series, and parts for tractors such as tractor gear box, rear axle. Products sold to all over the country. Our products Exported to Southeast Asia and South Asia like Indonesia, Myanmar, Thailand, India, Vietnam,Iran and many countries of South America, Africa.

We have got the outstanding achievement of selling over 6000 sets rice transplanter and 1000 sets tractor in the year 2017 .With fixed assets of RMB 238 million an area of more than 50 acres, and a staff of  500 , our company has strong technology power, and product development ability .

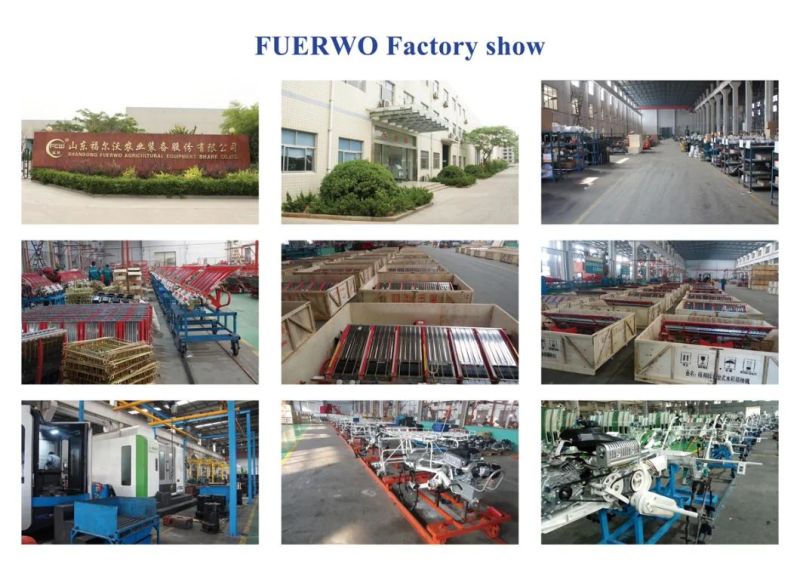

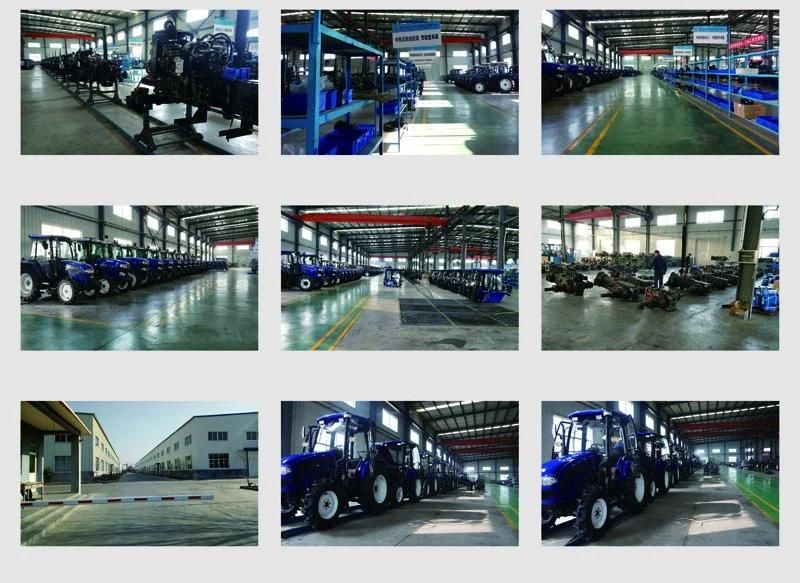

Factory Profile and Tractor Production Line







After Sale Service:
1) Spare Parts Service
100% original spare parts assure good quality; Professional and accurate package and logistics assure safe and relieved transportation.
2) Training Service
Invite the technicians of dealers to FUERWO for training, send FUERWO engineers to dealers for training.
3) Technical Support

FAQ:

Why choose us?
 1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2) Good quality with cheap price for other brand. More substantial for farmers.

Other terms:
1). Delivery: 30 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
