• Model NO.：DGP 40-C
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Keywords 1：Animal Feed Machine
• Keywords 2：Feed Pellet Machine
• Keywords 3：Fish Feed Machine
• Keywords 4：Fish Feed Extruder
• Keywords 5：Feed Pellet Machine
• Capacity：120-150 Kg,Hour
• Main Power：15kw
• Feeding Power：0.4kw
• Cutting Power：0.4kw
• Screw Diameter：60mm
• Certification：Ce, SGS
• Transport Package：Standard Export Package, Wooden Case
• Specification：1400*1030*730
• Trademark：AG Mach
• Origin：China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. DGP 40-C Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Keywords 1 Animal Feed Machine Keywords 2 Feed Pellet Machine Keywords 3 Fish Feed Machine Keywords 4 Fish Feed Extruder Keywords 5 Feed Pellet Machine Capacity 120-150 Kg/Hour Main Power 15kw Feeding Power 0.4kw Cutting Power 0.4kw Screw Diameter 60mm Certification Ce, SGS Transport Package Standard Export Package, Wooden Case Specification 1400*1030*730 Trademark AG Mach Origin China Production Capacity 100 Sets Per Month

Product Description

China Manufacturer Fish Feed Plant Machinery Automatic Fish Feed Mill



Induction of Fish Feed Machine:

1.    The Floating Fish Feed Pellet Machine can make many kinds of fodder for different kinds of animal fodder.
2.    It can make poultry and pet fodder, as well as aquaculture-fodder and fishery feed, which is also called floating -feed.
3.    It is applied to the pretreatment of the animal fodder; so as to reduce loss of nutrition, advance the protein content, so the fodder will be digested easier by animals.
4.    The poultry-fodder can feed chicken, rabbit, sheep, pig, and horse cattle's and so on.
5.    The pet-fodder can feed dogs, cats; goldfish etc The Fishery-feed can feed the fish, shrimps, crab, eel, catfish, and batrachians etc.

Specification of fish food making machine:

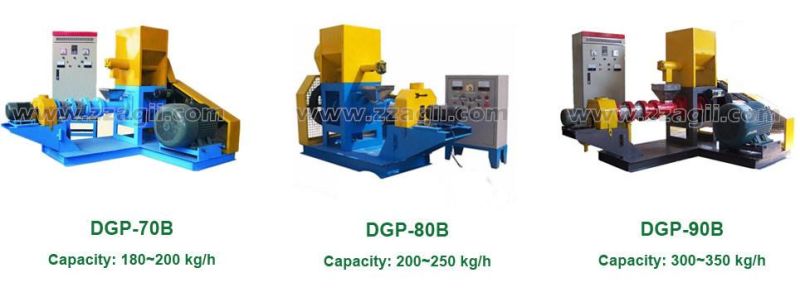

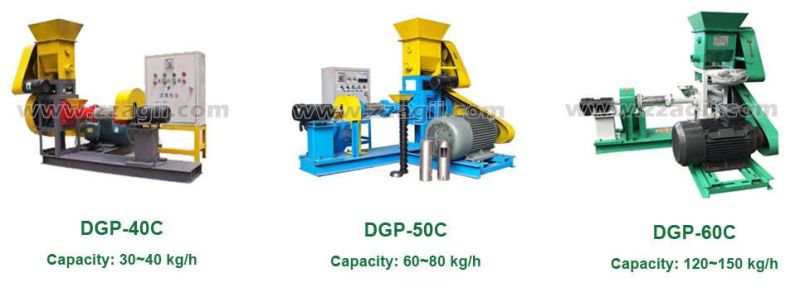

Model	Output	Main Power (kw)	Feeding Power (kw)	Cutting Power (kw)	Dimension (mm)	Weight (kg)
DGP 40-C	30~40 kg/h	5.5	0.4	0.4	1400*1030*730	240
DGP 50-C	60~80 kg/h	11	0.4	0.4	1470*1100*1250	320
DGP 60-C	100~150 kg/h	15	0.4	0.4	1470*1120*1250	350
DGP 70-B	180~200 kg/h	18.5	0.4	0.4	1650*1400*1300	580
DGP 80-B	200~300 kg/h	22	0.6	0.6	1800*1450*1300	695
DGP 90-B	300~400 kg/h	37	0.6	0.8	2100*1450*1350	950
DGP 120-B	500~600 kg/h	55	1.1	1.5	2400*1950*1600	1700
DGP 135-B	700~800 kg/h	75	1.1	2.2	2550*2050*1650	1900
DGP 160-B	1-1.2 t/h	90	1.5	3.0	3100*2650*1800	3200
DGP 200-B	1.8-2 t/h	132	2.2	3.0-4.0	3100*2850*1900	3800

Features of floating fish feed machine:

1.This floatingfish food machine is mainly used for producing floating feed pellets of all kinds of animals including fish, pets, live stock and poultry, etc.The floating pet fish fodder machine adopts combined modular spindle, which suits the extrusion of different raw materials, easy operation and maintenance.

2.This floating pet fish fodder machine adopts international advanced technology, the pellets are very even, and we can adjust the cutter to get the different diameter and the length; Screw sleeve of this floating pet fish fodder machine adopts enchase alloy steel strip structure, which guarantees long service life.

3.Main components of this floating pet fish fodder machine use special alloy materials made of heattreated, strong abrasive resistance and long service life.

4.This floating pet fish fodder machine is widely used for extrusion of beans, corns, pig feed and other livestock feed pellets. It is also used for rice husk fresh keeping and cotton seeds detoxication. It is and ideal tool fro feed processing industry.

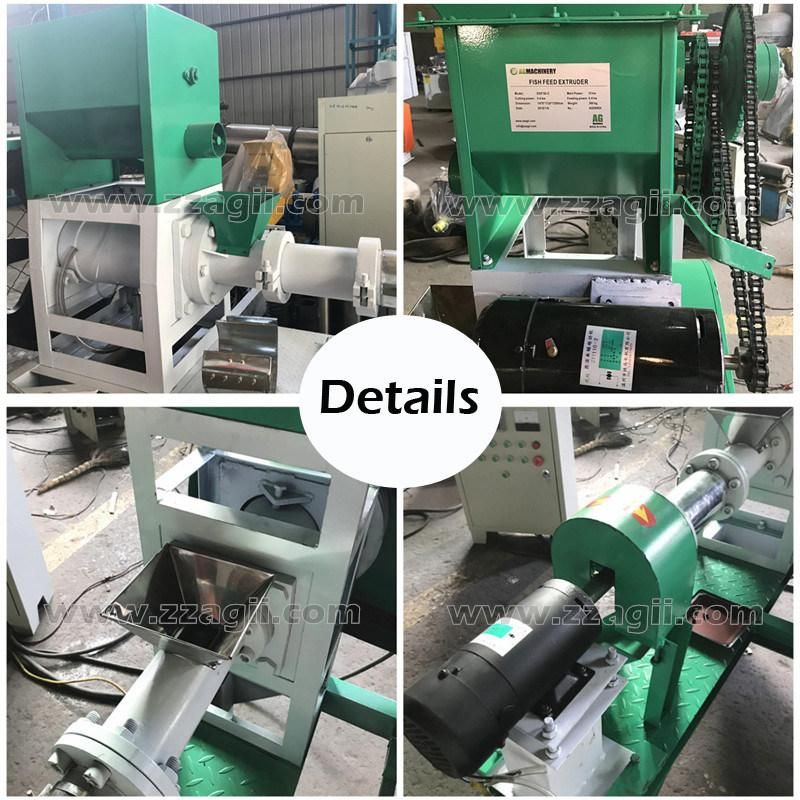

Detailed of fish feed extruder machine:

Raw Material of Fish Feed Extruder Machine:

1).  Raw materials can be: Corn, Wheat, Soybean, Grain, Bone powder, etc.

Common Raw Materia for Making Nutritional Fish Feed:

Rice Dust: contain about 10-14% of protein and aso contain vitamin B1, B2, B6 and small quantity of enzyme.
Mustard Cake: Mix maximum 40% of cake in the fish feed. But don't use dry cake more than 20%. Mustard cake contains 30-32% protein. It aso contains a high rate of fat.
Wheat Chaff: contain fiber, contro many types of fish diseases.
Maize: contain protein, carbohydrate, fat, vitamin A and E.
Cotton Seeds: contain about 54% protein. It is a better ingredients for suppementary fish feed.
Fish Powder: easiy digestible to fish. Fishmeal contain about 55-60% protein.
Bone Powder: very necessary for buiding fish-bone. The ratio of calcium and magnesium in bone dust is 2 : 1.
Innards: very suitabe and ideal feed for catfish. It contains 52% protein.

2).  Raw materials need grind into 60-80Mesh.
3).  Raw materials moisture content: 20-30%.
4).  Diameter of Final Pellets: 0.9mm-12mm.
5).  Length of the pellets can be adjustable by control the cutting knife

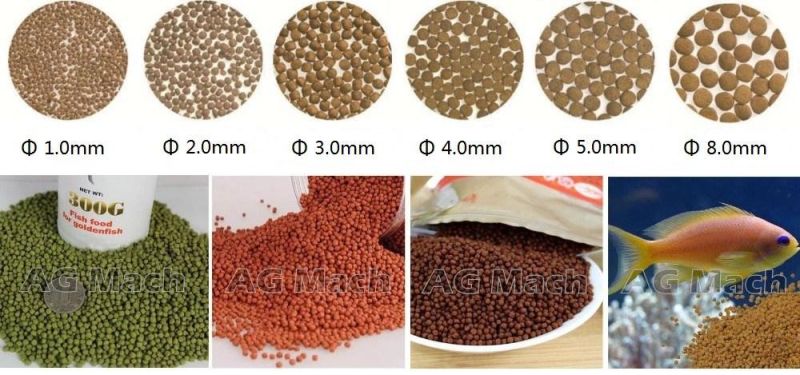

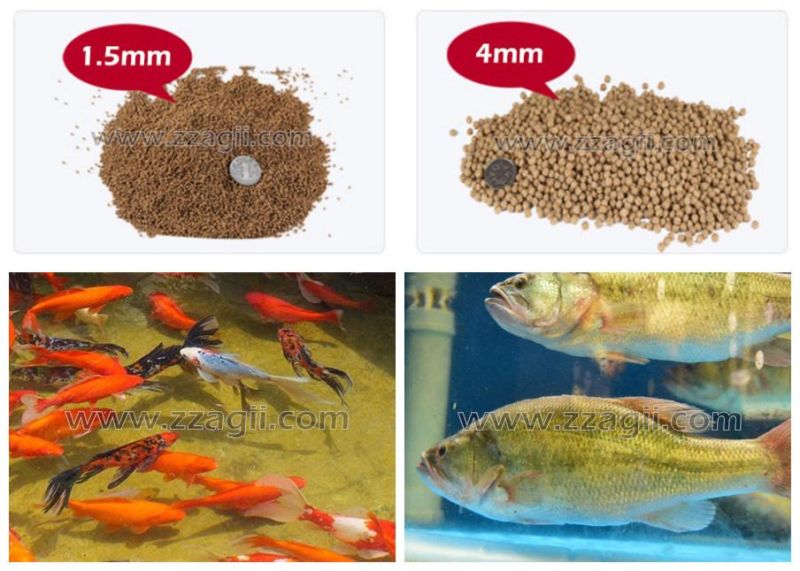

Finished Product:

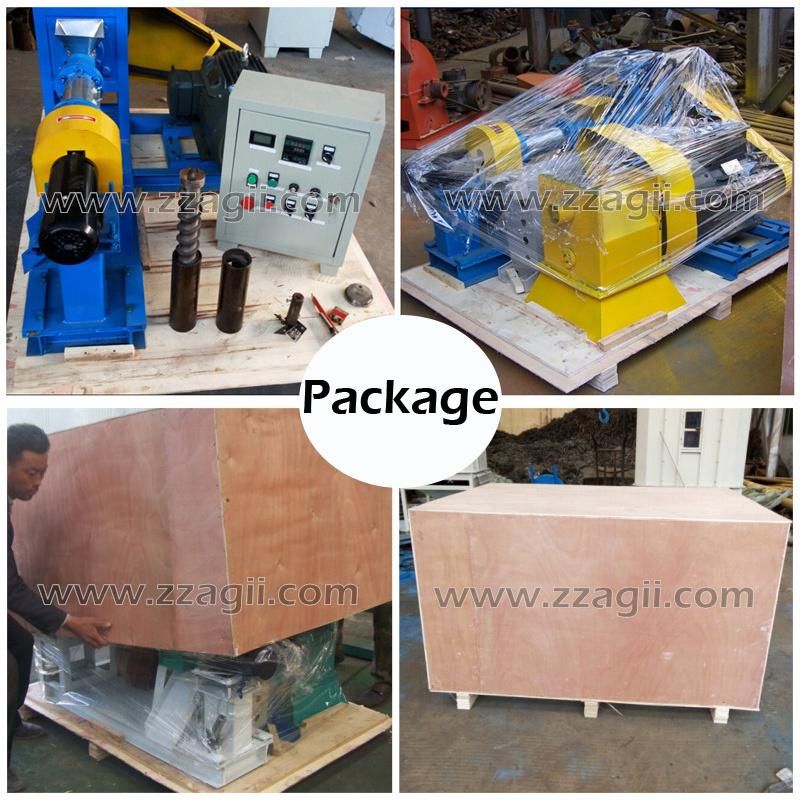

Package of Screw Fish Feed Machine:
