Wood Crusher (9FH) for making Sawdust Good Quality and New
Henan VIC Machinery Co., Ltd.- Type:WOOD CRUSHER
- Power Source:Electric
- Certification:ISO9001, CE
- CE:Yes
- Package:Wood Box
- Is_Customized:Yes
Base Info
- Model NO.:9FH
- English User Manual:Yes
- Warranty Time:1 Year
- Delivery Time:Within 10 Days After The Receipt of Paid Deposit
- Model:6 Models Avaliable
- Transport Package:Wooden Box
- Specification:CE, SGS
- Trademark:VIC
- Origin:China
- Production Capacity:100 Sets Per Year
Description
Basic Info.
Model NO. 9FH English User Manual Yes Warranty Time 1 Year Delivery Time Within 10 Days After The Receipt of Paid Deposit Model 6 Models Avaliable Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China Production Capacity 100 Sets Per YearProduct Description

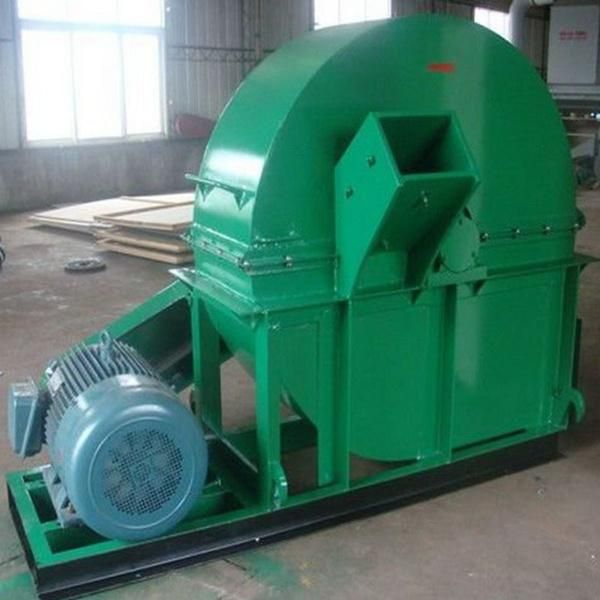

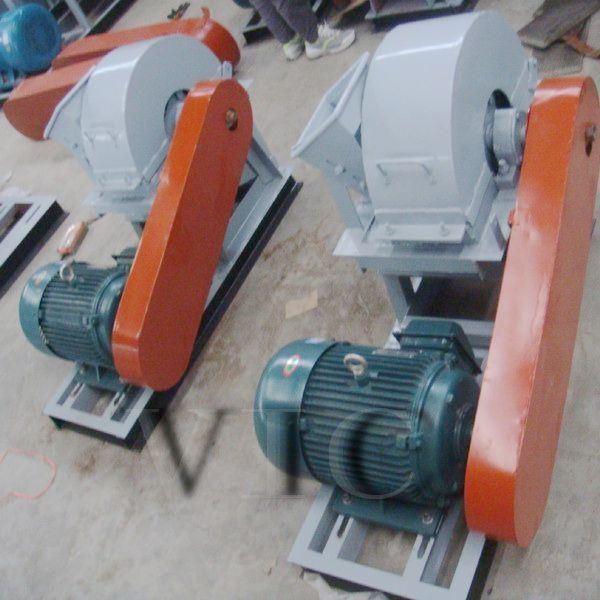

9FH Wood CrusherIntroduction:
1. It can crush the big diameter tree branch such as pine, poplar wood, filed mushroom into pieces like sawdust one time. The machine is simple structure, compact, space-saving footprint, good shaving quality, also is good for bamboo, grass, corn stalk, sorghum stalk and other fibrous materials.
2. Adopt vee belt transmitt, disk cutting and hammer crushing to sawdust, the granularity size can be adjusted by changing the sieve.
3. It is not only be driven by motor, but also can be diesel engine according to the need of clien
Main data:
Model | 9FH-500 | 9FH-600 | 9FH-700 | 9FH-800 | 9FH-900 | 9FH-1000 |
Capacity(kg/h) | 300 | 600 | 800 | 1500 | 3000 | 4000 |
Cutter dia(mm) | 500 | 600 | 700 | 800 | 900 | 1000 |
Cutter pcs | 4 | 4 | 6 | 6 | 6 | 6 |
Cutter length(mm) | 100 | 150 | 200 | 250 | 300 | 350 |
Feeding dia(mm) | 180x200 | 200x200 | 200x250 | 250x300 | 300x400 | 400x500 |
Main shaft speed(min/h) | 2600 | 2500 | 2600 | 2300 | 2000 | 2000 |
Power(kw) | 11 | 15 | 22 | 37 | 45 | 55 |
Size(m) | 1.2x0.85x0.9 | 1.5x1.0x1.1 | 1.6x1.0x1.2 | 2.1x1.1x1.3 | 2.3x1.1x1.4 | 2.6x1.1x1.5 |
