• Model NO.：PX
• main shift speed：480-650 r,min
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：VIC
• Origin：China
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. PX main shift speed 480-650 r/min Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China Production Capacity 1000 Sets/Year

Product Description

Instruction
It is one special equipment for making wood chips. It is widely used in stock workshop section of industrial manufacture, for example, the flakeboard, fibre board, building board, straw power plant.
Its raw materials are mainly small diametre wood which 's diameter is not extend 120mm, leaving thing of wood cutting(branchs, wattle) and process leaving thing of the wood raw materials(board skin, board bar, log core, waste veneer) and so on. It also can cut the non-wood materias, like sugar cane, bulrush, gross bamboo and so on.

Main date

Model	Capacity(t/h)	Matched power(kw)	Weight(kg)	Main shaft rotate speed(r/m)	Blade diameter(mm)	blades
PX420	1-2	7.5	120	600	420	2-4
PX600	2-3	15	380	650	600	2-4
PX700	3-5	22	480	600	700	2-4
PX800	5-6	30	550	480	800	4
PX950	6-8	37	800	550	950	4
PX1100	8-10	45	1650	600	1100	4
PX1210	10-12	55	2100	600	1210	4
PX1410	12-15	75	2800	600	1410	4

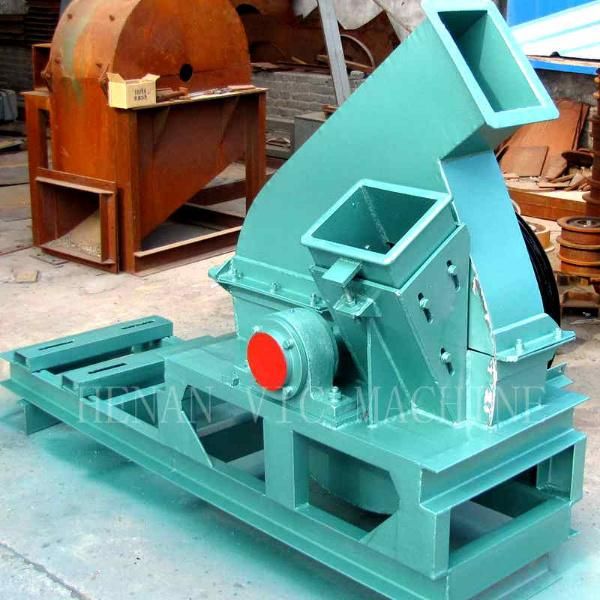

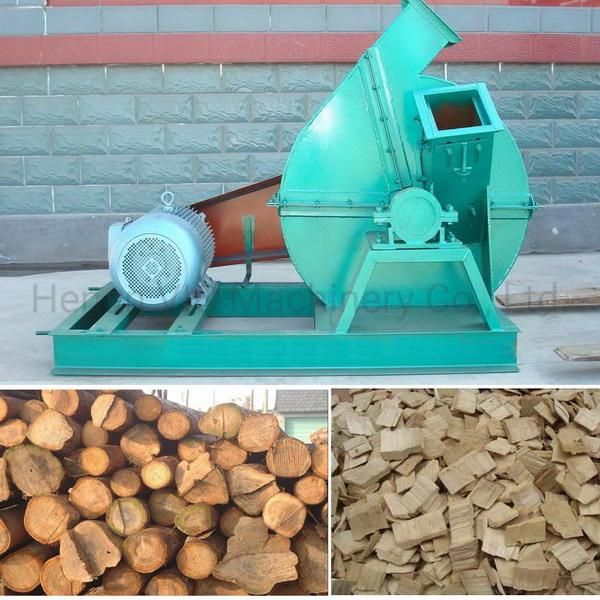

More pictures



More details
Pure copper motor more powerful;

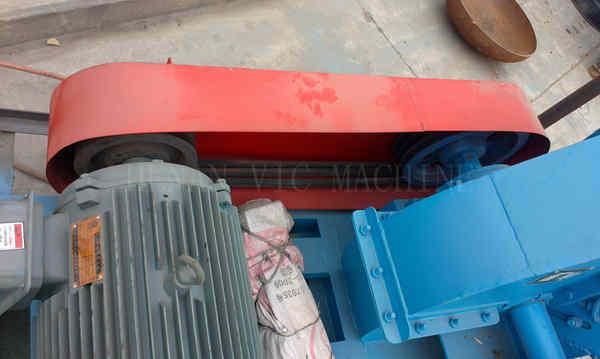

3 belt with three belt transmission system is more reliable, more torque transmission, not easy to jam

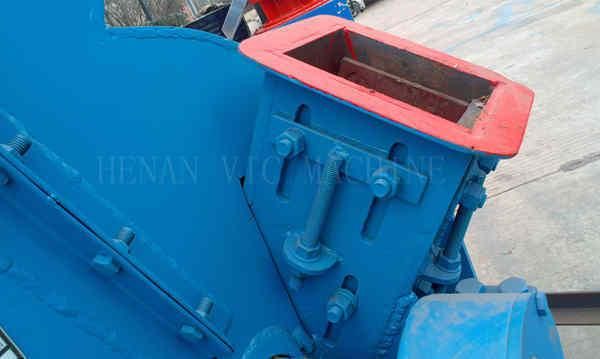

Adjustable feed inlet is more suitable for different shapes of wood

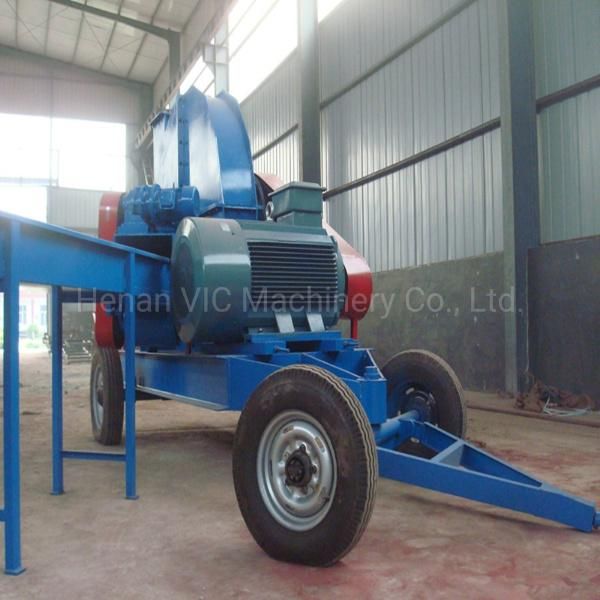

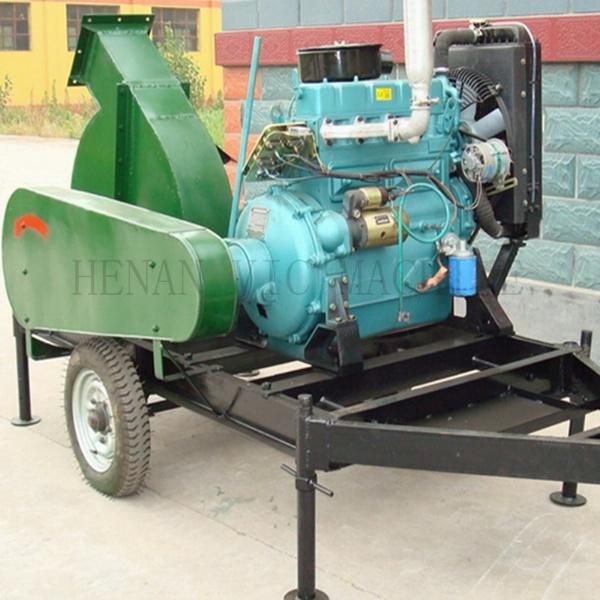

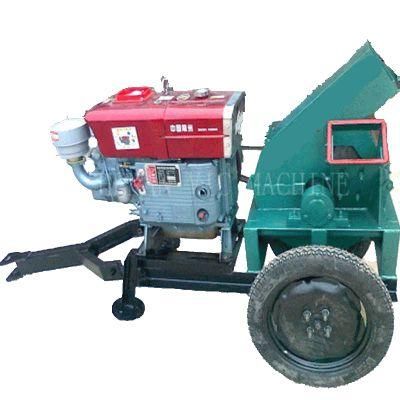

Mobile wood chipper

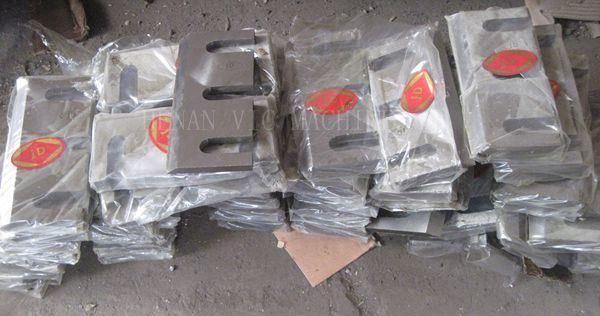

Parts

Package

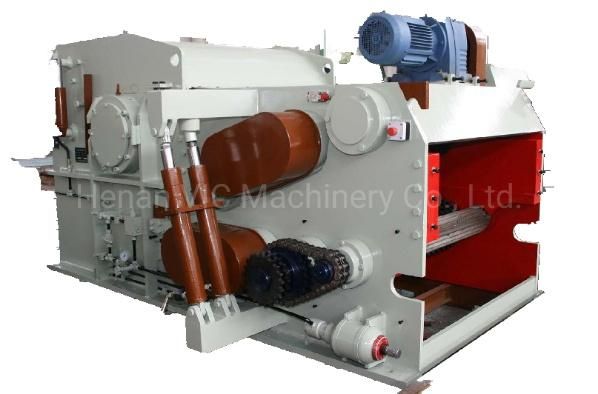

Other dump wood chipper
