500kg/H Biomass Briquette Production Plant Machinery
Henan VIC Machinery Co., Ltd.- After-sales Service：online
- Warranty：1 year
- Structure：Horizontal
- Fuel Size：Briquetting
- Finished Product Shape：Square or Hexagon
- Raw Material Moisture：13%-20%
Base Info
- Model NO.：ZBJX-500
- Finished Product Application：Af Fuel for Boiler or Stove
- Type：Machine-Made Charcoal
- Application：Steam Coal, Coking Coal
- Shape：Briquette
- Material：Hard Wood
- Usage：BBQ, Agriculture Industry
- Certification：CE, ISO
- Transport Package：Wooden Box
- Specification：500KG,H
- Trademark：VIC
- Origin：China
- Production Capacity：1000sets,Year
Description
Basic Info.
Model NO. ZBJX-500 Finished Product Application Af Fuel for Boiler or Stove Type Machine-Made Charcoal Application Steam Coal, Coking Coal Shape Briquette Material Hard Wood Usage BBQ, Agriculture Industry Certification CE, ISO Transport Package Wooden Box Specification 500KG/H Trademark VIC Origin China Production Capacity 1000sets/YearProduct Description
500kg/H Biomass Briquette Production Plant Machinery1.Raw material:
Groundnut shell, Sugarcane Biogases, Caster Shells/Stalk, Saw dust, Coffee Husk, Paddy Straw , Sunflower Stalk, Cotton Stalks, Tobacco waste Mustard Stalk, Jutewaste, Bamboo Dust, Tea wast, Wheat Straw, Palm husk, Soybeans husk, Coir Pitch Barks/Straws, Rice Husks, Forestry wastes, Wood Chips and many other Agro wastes.

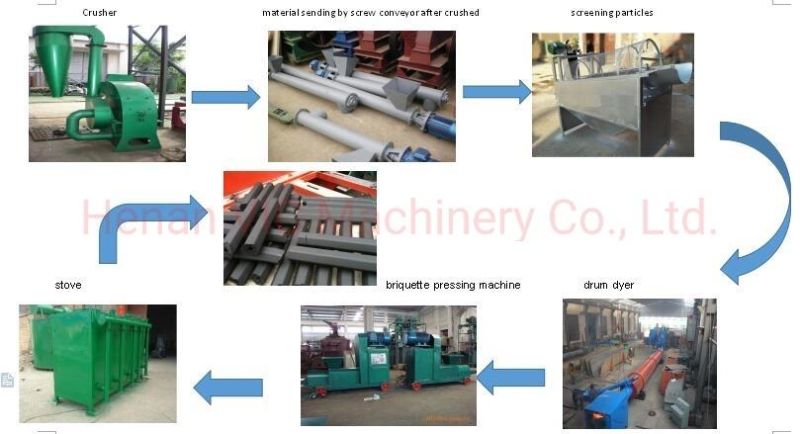

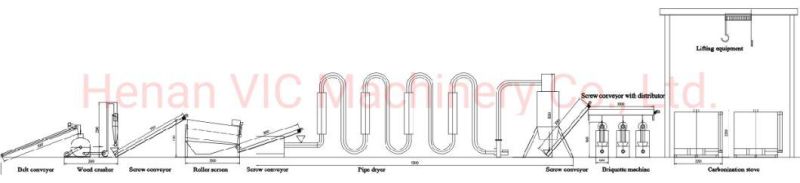

2.Flow chart of the line:
Raw material- crusher--dryer--biomass -charcoal briquette machine--carbon bar furnace--finished
3.Main machine date:
| NO. | Name | Model | Power (kw) | Q'ty (pc) | Capacity(kg/h) | Size (mm) |
| 1 | Hammer mill | HM500-28 | 11 | 1 | 400-500 | 1400*800*1100 |
| 2 | Screw conveyer | LX-II | 1.5 | 1 | 800-1500 | 3500*350*560 |
| 3 | vibrating screen | 6YT-5 | 3 | 1 | 500-600 | 2500*1300*1750 |
| 4 | Pipe dryer | HGJ-II | 5.5 | 1 | 600-700 | 8000*850*2500 |
| 5 | Screw separator | FL-I | 1.5 | 1 | 500-800 | 4540*450*350 |
| 6 | Briquetter | ZBJ-II | 18.5 | 2 | 300-350 | 1800*930*1260 |
| 7 | Carbonization stove | THL-I | 1.5 | 1 | 1000/36h | 2800*1500*2500 |
| 8 | Briquette stick Packager | BZ250 | 18 | 1 | ---------- | 2200*1200*1200 |
4.Parts of projects:

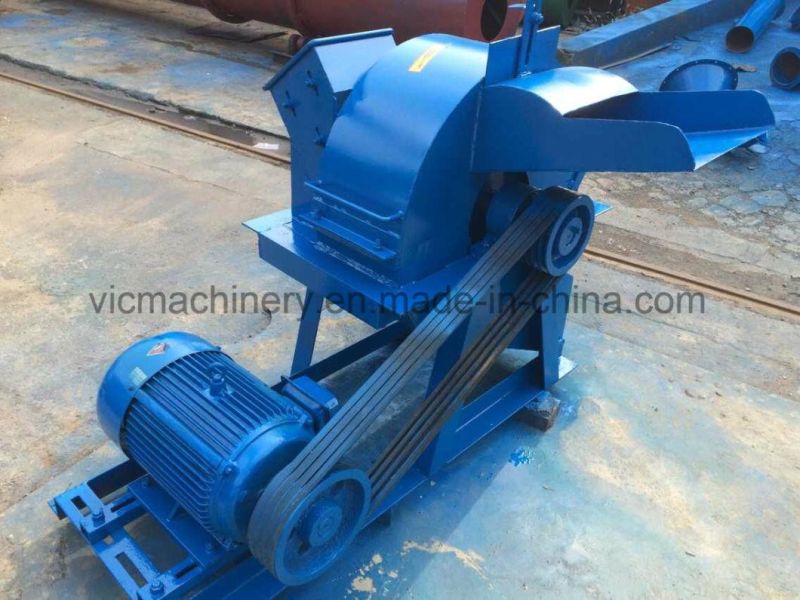

Hammer mill
vibrating screen

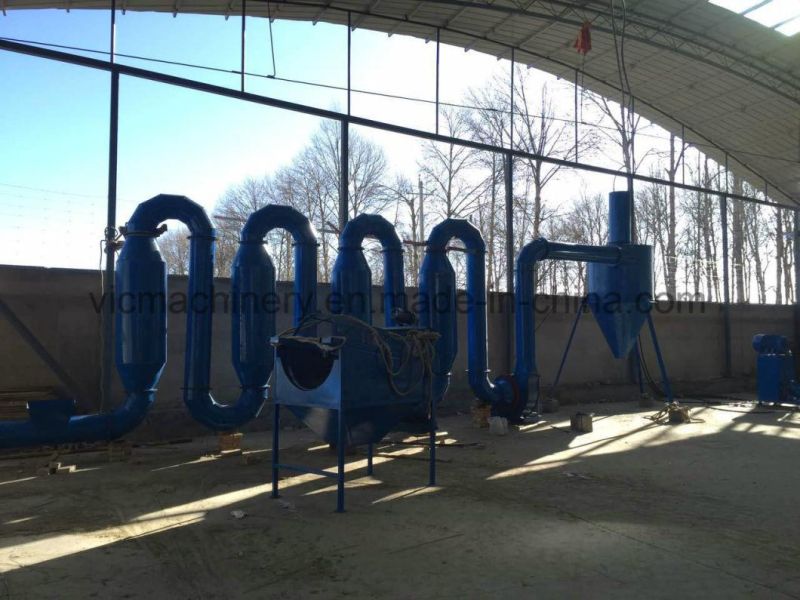

Pipe dryer

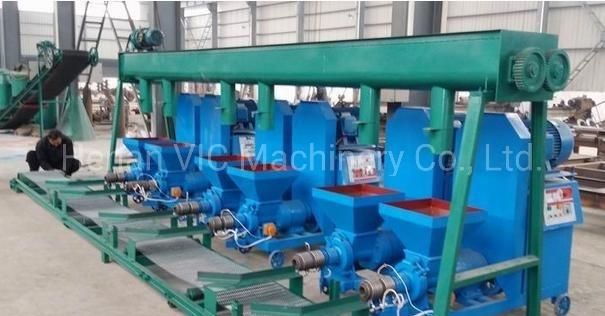

Screw separator and Briquetter

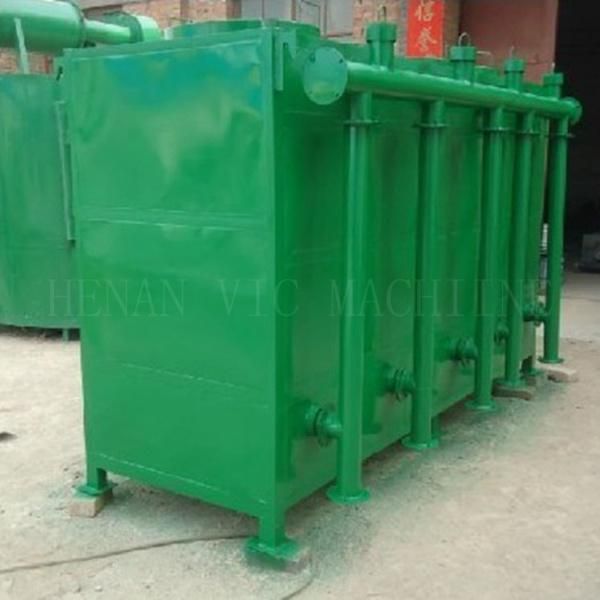

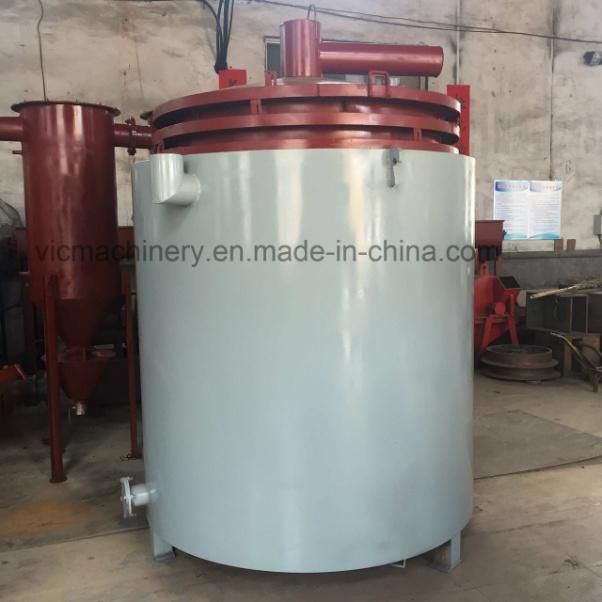

Carbonization stove

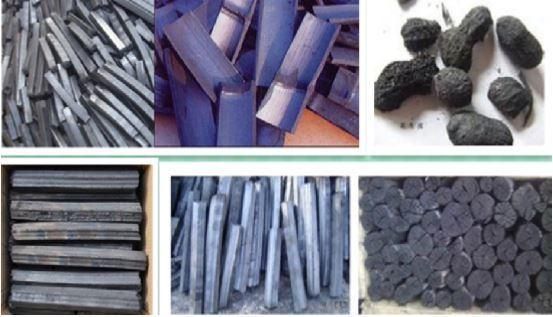

FInal product
Package and shippment
Container shipment
5.Our factory:
We can offer the whole charcoal briquette making plant with different capacity, from 200kg/h-3000kg/h even more. and offer for the wonderful project design according to ur request and condition.Welcome to visit our company and talk over the machinery. Welcome to wirte to me.
