• Model NO.：YG-30 40 50 60 100
• Material：Stainless Steel
• Type：Push Sprayer
• Name：Fog Cannon Dust Suppression
• Application：Fogging Machine Disinfection in Urban Streets
• Function：Sanitation Machine to Spray The Streets
• Related Machine：Thermal Fogger Machine
• Model：Yg-30,40,50,60 Gun Fog Cannon
• Spraying Distance：30,40,50,60,100m
• Wind Motor：11kw
• Pump Motor：5.5kw
• Size of Spraying Drops：40-200
• Stainless Steel Nozzle：10-120
• Working Type：Manual Type or Automatic
• Water Pump Motor：3-7.5kw
• Power：3-22kw
• Engine：Electric or Diesel
• Rotary：360 Rotary
• Transport Package：Wooden Case
• Specification：3m3
• Trademark：YUGONG
• Origin：Henan( China)
• HS Code：8424899990
• Production Capacity：1000 Sets ,Month

Basic Info.

Model NO. YG-30 40 50 60 100 Material Stainless Steel Type Push Sprayer Name Fog Cannon Dust Suppression Application Fogging Machine Disinfection in Urban Streets Function Sanitation Machine to Spray The Streets Related Machine Thermal Fogger Machine Model Yg-30/40/50/60 Gun Fog Cannon Spraying Distance 30/40/50/60/100m Wind Motor 11kw Pump Motor 5.5kw Size of Spraying Drops 40-200 Stainless Steel Nozzle 10-120 Working Type Manual Type or Automatic Water Pump Motor 3-7.5kw Power 3-22kw Engine Electric or Diesel Rotary 360 Rotary Transport Package Wooden Case Specification 3m3 Trademark YUGONG Origin Henan( China) HS Code 8424899990 Production Capacity 1000 Sets /Month

Product Description

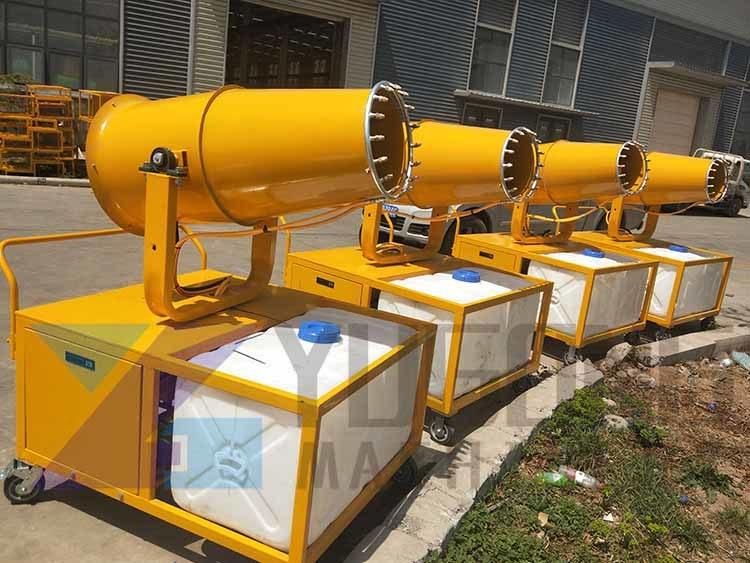

Street sanitation water mist fog cannon disinfection fogging gun sprayer machine
 Fog cannon sprayer can be used for spray disinfectant for sanitation; dust supression urban demolition, mining areas, thermal power plants, port terminals, urban air pollution, excessive dust area, metallurgy, chemical, coal, steel, construction, gardens, public places and other places mist dust, cooling.



Application

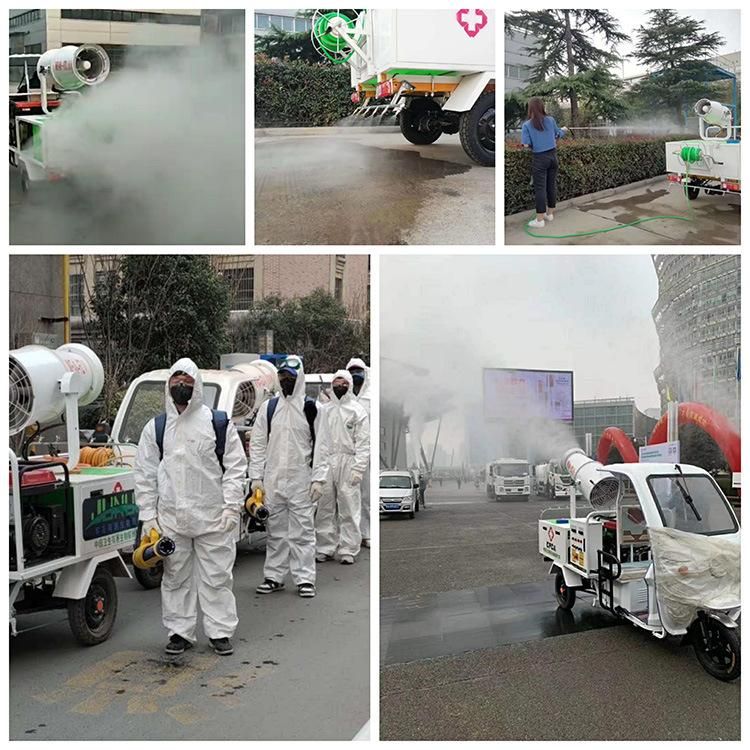

1. Fog Cnanon Spray disinfectant to sterilize streets;
2. Control of excessive urban air, pollution, dust and haze, and urban environment;
3. Dust and temperature reduction in demolition sites, water conservancy dams, highways and bridges.
4. Dust pollution control in coal yard, mining area, coal yard, port coal yard, power plant, steel plant, coke and so on.
5. Large-scale disinfection and epidemic prevention after airports, highways, stations, wharfs, garbage dumps and natural disasters;
6. Dust-lowering, moisturizing and temperature-lowering disinfection in sports venues, hot venues, etc.




Product Features

1. Tricycle fog machine, truck mounted fog cannon, and wheel and portable handheld thermal fogging machine to choose. Can be fixed in the concrete pouring platform, and also supporting diesel generator set installed in the transport vehicle.

2. The dust control machine can spray far range, covering a wide range, high efficiency, precision spray.

3. The spray of fog particles is very small,combined with the dust, forming a moist mist,to suppresses dust.

4. Supporting power is flexible, can be three-phase 380V or 220V or 440V of electricity. Gasoline or Diesel generator sets can also be the supporting
power supply.

5. Flexible operation, remote control or manual control, and free to adjust the level of rotation and spray angle, ensure safty and reliable.

6. Water consumption compared to other dust suppression equipment (spray gun, sprinkler) can save 70% -80%, and the water mist coverage area is far widely than other dust suppression spraying equipment.



Structure

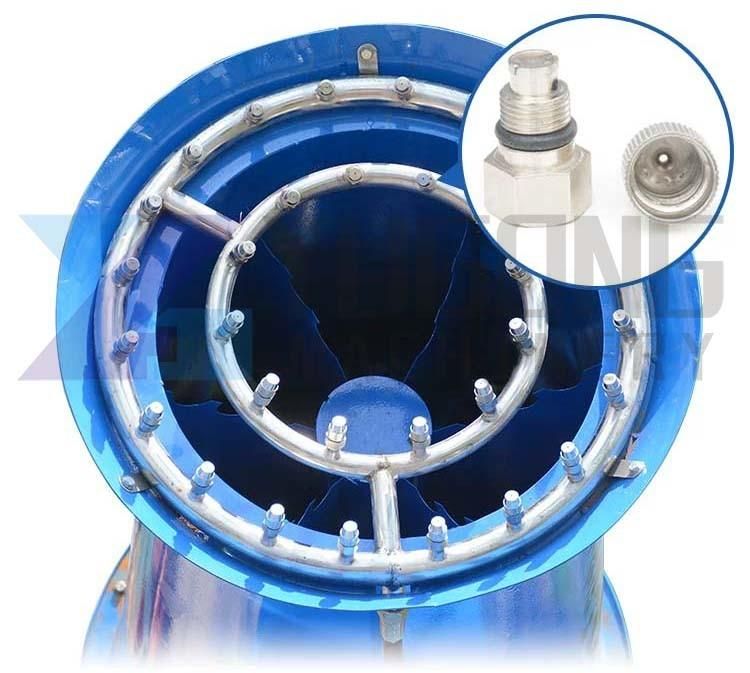

The dust suppression fog cannon has water tanks, water pipes, plunger pumps, nozzles, fans, generators(Petrol or diesel), the level of steering, vertical pitching device, electronic control box, remote control and other components.



Wind-sent fog gun is the use of the principle of the fan into water 50-200 microns mist, the formation of long-range range of jet air, combined with the dust particles to increase its weight, so that dust particles sank. Can be 350 ° rotation, sprinkler no blind spot, spray evenly, less water consumption, there is no large area of water, can reduce dust pollution.


Parameter

Model	YG-30	YG-40	YG-50	YG-60
Horizontal range(m)	20-30	30-40	40-50m	50-60m
Consumption(L/min)	10-20L	20-30L	30-40L	40-50L
Size of spraying drops(μm)	40-200	40-200	40-200	40-200
Type	Manual or Semiautomatic or Automatic	Manual or Semiautomatic or Automatic	Manual or Semiautomatic or Automatic	Manual or Semiautomatic or Automatic
Pump power	3KW	4KW	4KW	5.5KW
Fan power	3KW	5.5KW	7.5KW	11KW
Nozzles	10	10	26	26

Besides the YG-30 40 50 60 water mist fog cannon, we also have 70m 80m 100m dust control fog cannon machine, and portable fogging machine for you to choose.

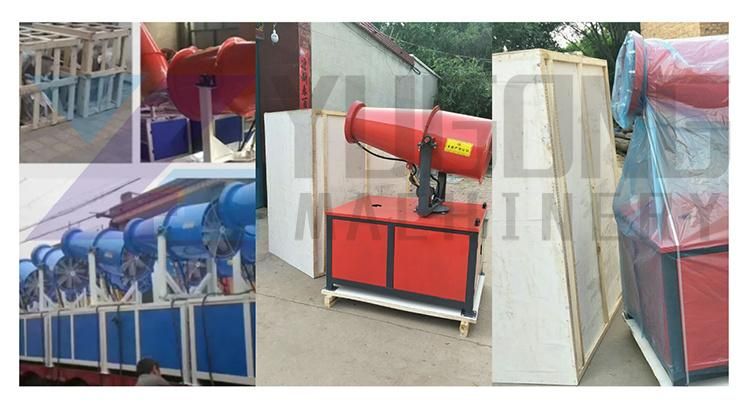

Packaging& Shipping

1. Packaging:  1)Wrapped by proctective film;

                        2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
