• Model NO.：SFSP
• Applicable Materials Shape：Granular
• Motor：Siemens(Beide)
• Bearing：NSK
• Screen Size：Various
• Delivery Time：20-30days
• Transport Package：Iron Pallet
• Trademark：APEX
• Origin：China
• HS Code：8436100000
• Production Capacity：2-20tph

Basic Info.

Model NO. SFSP Applicable Materials Shape Granular Motor Siemens(Beide) Bearing NSK Screen Size Various Delivery Time 20-30days Transport Package Iron Pallet Trademark APEX Origin China HS Code 8436100000 Production Capacity 2-20tph

Product Description

ABOUT US
LIYANG APEX designs, manufactures and trades of feed machines, biofuel machines complete projects and spare parts.
APEX has implemented a strict and comprehensive system to monitor and maintain quality, so each and every APEX product can exceed the expectations of our clients. APEX has a very experienced  team in the areas of machinery production, engineering design and assembly. All of APEX products will be extensively inspected prior to shipment.
PARAMETERS
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.
4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;
5. New type S-shape coupling directly connecting driving results in big offset travel and effectively avoid the heat from the bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
Main Technical Parameters:

Model Parameters	Dia. Of Rotor  (mm)	Width Of Grinding Chamber (mm)	Speed Of Rotor (rpm)	Power  (kW)	Output (t/h)
SFSP568-1	560	360	2940	22	2-3
SFSP568-1	560	360	2940	30	3-5
SFSP568-2	560	400	2940	37	5-6
SFSP998-1	1200	300	1480	55/75	10-15
SFSP998-2	1200	400	1480	90/110	12-20
SFSP998-3	1200	500	1480	110/132/160	25-35
SFSP998-4	1200	600	1480	180/200/220	38-50

Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m³, screen: hole diameter ¢3mm, hole-opening rate not less than 33%.

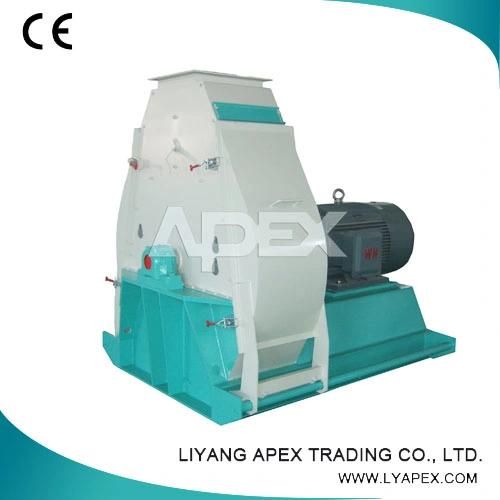

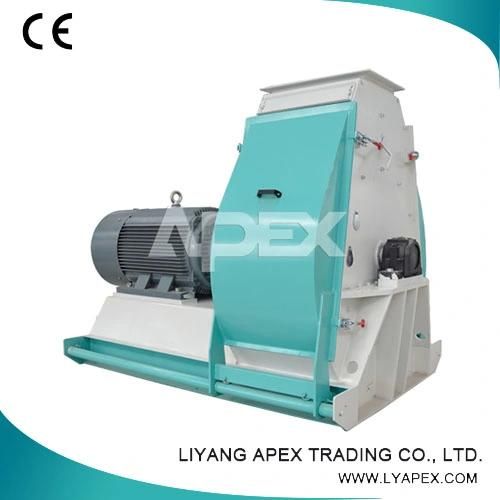

DETAIL PHOTOS

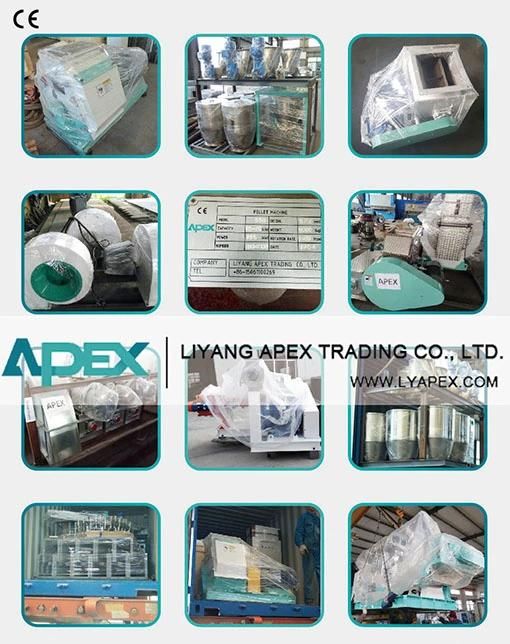

EXPORTED EQUIPMENT



CERTIFICATES
