• Model NO.：DSP160-B
• Pellet Mill Type：Screw Granulator
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：All
• Warranty：13 Months
• Color：Multi
• Usage：Feed Pellet Mill
• Pellet Size：0.9-20mm
• Certification：Ce, ISO
• Capacity：3.0-4.0t,H
• Host Power：132kw
• Feed Pellet Type：Puffed Pellet
• Floating Hour：More Than 12 Hours on Water
• Pellet Shape：Various Mold Can Choose
• Transport Package：Wooden Case
• Specification：warranty: 1 year
• Trademark：YUFCHINA
• Origin：Henan China
• HS Code：84833800
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DSP160-B Pellet Mill Type Screw Granulator Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape All Warranty 13 Months Color Multi Usage Feed Pellet Mill Pellet Size 0.9-20mm Certification Ce, ISO Capacity 3.0-4.0t/H Host Power 132kw Feed Pellet Type Puffed Pellet Floating Hour More Than 12 Hours on Water Pellet Shape Various Mold Can Choose Transport Package Wooden Case Specification warranty: 1 year Trademark YUFCHINA Origin Henan China HS Code 84833800 Production Capacity 50 Sets Per Month

Product Description

Factory Supply fish feed production line with hourly capacity 3 to 4 tons

Description of Fish feed pellet mil

   The machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The puffing pellets can float on water surface for over 12 hours,.According to your capacity and material ,We wil suggest you different model fish feed pellet machine.

Features of Fish feed machine

1. By adjustment of feed formulation and degree of expansion, the fish feed extruder can produce all kinds of floating, sinking, and slow sinking fish feed pellets.
2. Different molds can be chosen to make pellets with different diameters ( 0.9-15mm ) and shapes.
3. the fish feed extruder has the advantage of high efficiency and low power consumption.
4. Two types of pelletizing solution we can do, that is dry type and wet type.
Dry Type Pelletizing Solution:
No boiler needed in this process, even we need to dry the steam while pellet making. Raw material will be grain, soybean, etc.
Wet Type Pelletizing Solution:
Boiler Steam & conditioner are needed in this process, the steam will fully contact with the cereal and other raw materials.
5. Please be understand, whatever you choose dry type or wet type solutions, this fish feed making machine can make fish feed, shrimp feed, catfish feed, golden fish feed etc kinds of fishes and also pet foods.
  Specifications of Fish feed mill

Model	Capacity kg/h	Motor power kw	Cutting power kw	Feeding power kw	Modulator power kw	Screw dia. mm
DSP60-C	150-200	15	0.4	0.7	/	60
DSP70-B	200-350	18.5	0.4	0.4	/	70
DSP70-C	250-350	18.5	0.75	0.75	1.1	70
DSP80-B	400-500	32	1.1	1.1	1.5	80
DSP90-B	600-700	37	1.1	1.1	2.2	90
DSP120-B	700-850	55	1.5	1.5	2.2	120
DSP135-B	1000-1200	75	2.2	1.5	3	135
DSP160-B	1800-2000	90	2.2	2.2	3.5	155
DSP200-B	3000-4000	132	3	3	4.5	195

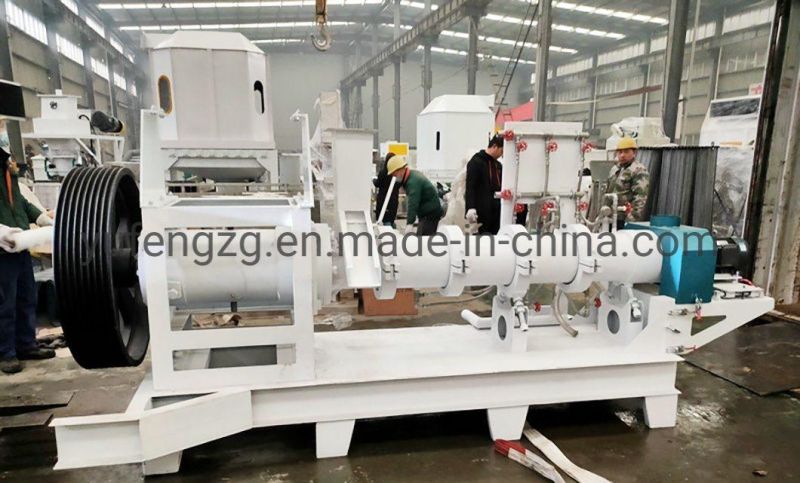

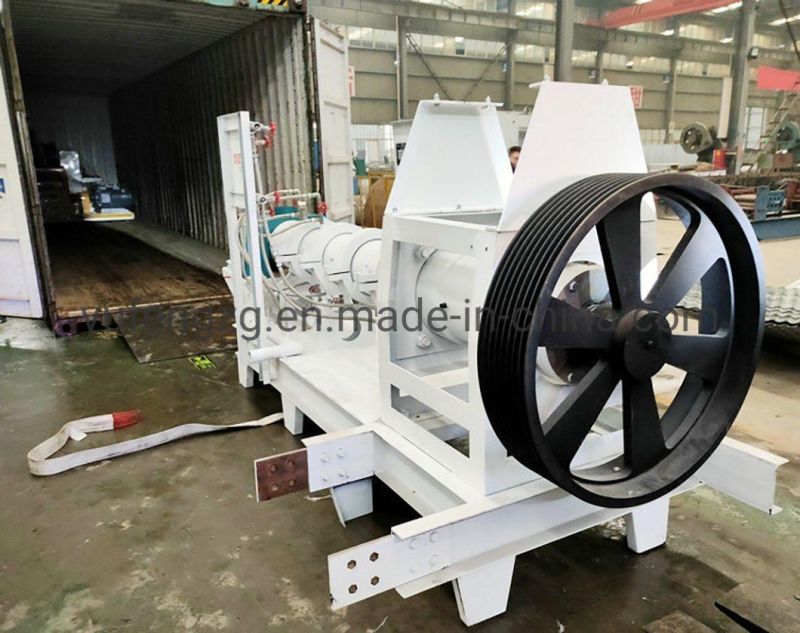

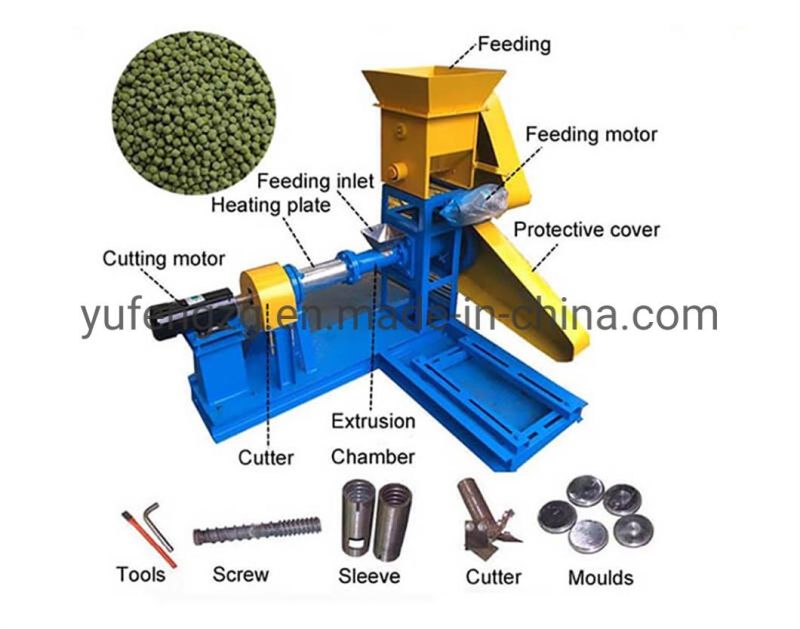

More Pictures:



Welcome to know more about our fish feed processing machine.
