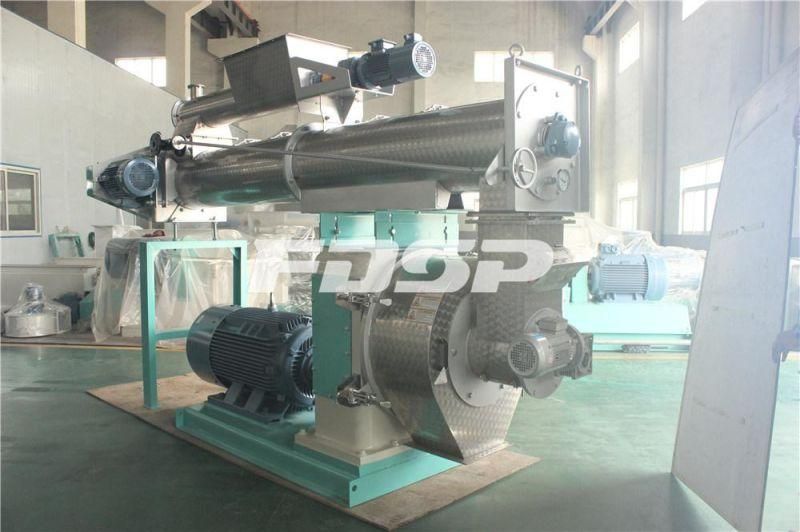

CE ISO Approved Cow Feed Pellet Machine
Jiangsu Liangyou Zhengda Co., Ltd.- After-sales Service：Provided
- Type：Pellet Mill
- Processing Object：Cereals
- Processing Technics：Crushing-before-Mixing
- Screen Mesh：With Screen Mesh
- Grinding Equipment Type：Feed Hammer Mill
Base Info
- Model NO.：SZLH420
- Pellet Mill Type：Ring Die Pelleter
- Bulking Machine Type：Twin Screw Bulking Machine
- Expanding Method：Wet Expansion
- Condition：New
- Applicable Materials Shape：Granular
- Warranty：1 Year
- Output (T/H)：10
- Power of Conditioner (Kw)：5.5
- Power of Feeder (Kw)：1.5
- Material：Customized
- Voltage：380V 50Hz
- Transport Package：pallet
- Specification：1000KG
- Trademark：FDSP
- Origin：Jiangsu China
- HS Code：8436100000
- Production Capacity：3-12t,H
Description
Basic Info.
Model NO. SZLH420 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Output (T/H) 10 Power of Conditioner (Kw) 5.5 Power of Feeder (Kw) 1.5 Material Customized Voltage 380V 50Hz Transport Package pallet Specification 1000KG Trademark FDSP Origin Jiangsu China HS Code 8436100000 Production Capacity 3-12t/HProduct Description
CE ISO Approved Cow Feed Pellet MachineFeatures
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;

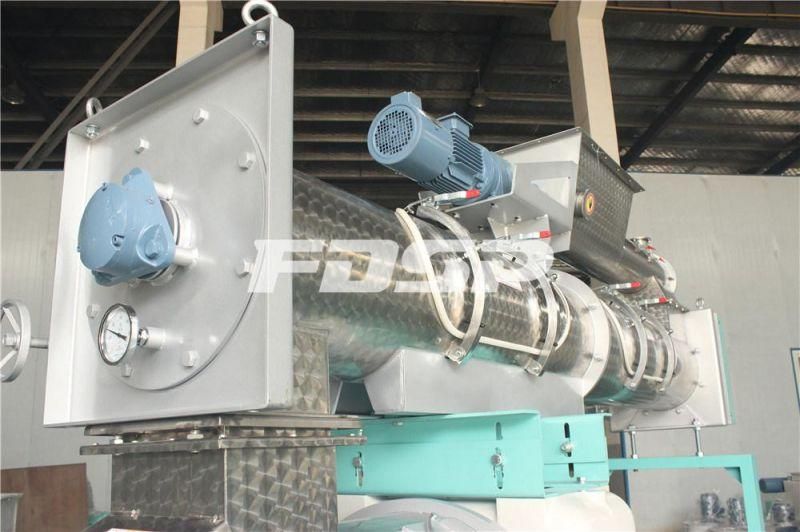

3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 PC quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
| Model | Output (t/h) | Main Power (w) | Power of Conditioner (kw) | Power of Feeder (kw) | ID Of Die (mm) | Pellet Size (mm) |
| SZLH420 | 3-12 | 75/90 | 5.5/7.5 | 1.5 | 400 | 2-18 |
