Agricultural Machinery

Industrial Microwave Bsfl Mealworm Drying Baking Oven Machine

Jinan Kelid Machinery Co., Ltd.
  • Warranty:Provided
  • Movement Way:Fixed

Base Info

  • Model NO.:KLD
  • Material Status:Solution
  • Heating Mode:Transmission
  • Drying Medium:Air
  • Operation Pressure:Atmospheric Pressure
  • Cooling Method:Water Cooling ,Air Cooling
  • Usage:Drying,Sterilization,Puffing
  • Heating Source:Megnetron Generate
  • Feature:High Efficiency
  • Certificate:CE
  • Control System:PLC
  • Magnetron Brand:Toshiba
  • Color:Silver
  • Application Scope:Meat, Tea,Nuts,Fruit,Vegetable
  • Brand Name:Kld
  • Transport Package:Container
  • Specification:Customized
  • Trademark:Jinan Kelid Machinery Co., Ltd.
  • Origin:Jinan, Shandong, China
  • HS Code:8419399090
  • Production Capacity:20- 1500 Kg,H
  • Package size per unit product:22.00cm * 2.00cm * 2.50cm
  • Gross weight per unit product:3000.000kg

Description

Basic Info.

Model NO. KLD Material Status Solution Heating Mode Transmission Drying Medium Air Operation Pressure Atmospheric Pressure Cooling Method Water Cooling /Air Cooling Usage Drying,Sterilization,Puffing Heating Source Megnetron Generate Feature High Efficiency Certificate CE Control System PLC Magnetron Brand Toshiba Color Silver Application Scope Meat, Tea,Nuts,Fruit,Vegetable Brand Name Kld Transport Package Container Specification Customized Trademark Jinan Kelid Machinery Co., Ltd. Origin Jinan, Shandong, China HS Code 8419399090 Production Capacity 20- 1500 Kg/H

Packaging & Delivery

Package size per unit product 22.00cm * 2.00cm * 2.50cm Gross weight per unit product 3000.000kg

Product Description

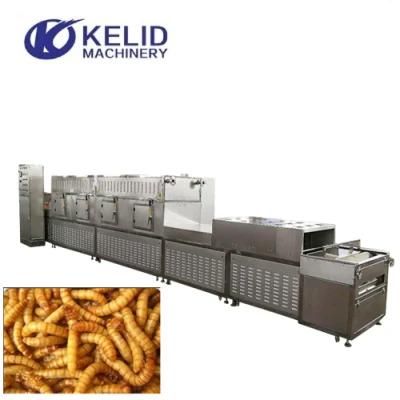

 Industrial Microwave BSFL Mealworm Drying Baking Oven Machine

Product details

Introduction of microwave:
The microwave is an electromagnetic wave has a frequency of 300MHz-300GHz. The moisture in the heated mediu are polar mocules, under the cation of repidly changing high-frequency electromagnetic fields, their polar orientation will change with the change of the external electric field, causing molecular motion and mutual friction effects. At this time, the field energy in the microwave field is converted into thermal energy in the medium, so that the temperature of the material is increased, and a series of physicochemical processes of the heating and expansion are fenerated to achieve the purpose of microwave heating and drying.
Industrial Microwave Bsfl Mealworm Drying Baking Oven Machine

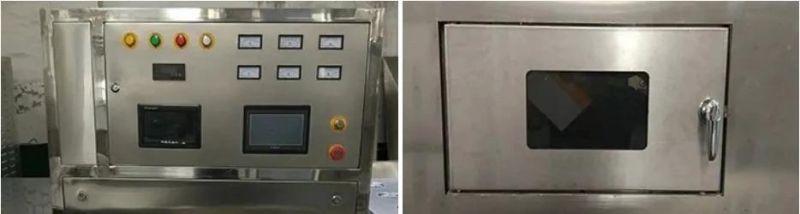

Observation Window

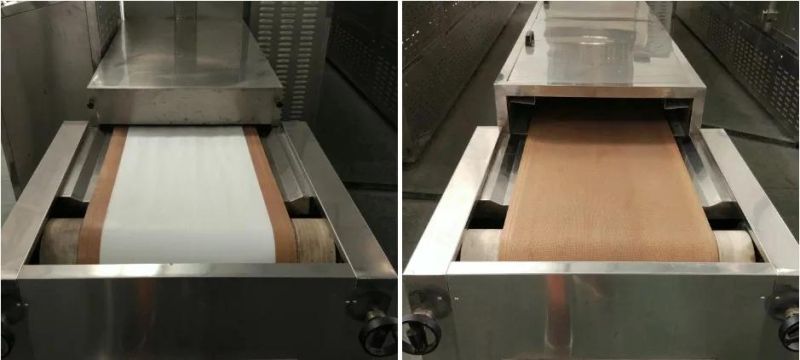

Industrial Microwave Bsfl Mealworm Drying Baking Oven MachineControl Belt
Industrial Microwave Bsfl Mealworm Drying Baking Oven MachineTechnical equipment


Equipment ModelKLD-Microwave Drying EquipmentKLD-Microwave Drying Equipment
Operating frequency2450±50MHZ2450±50MHZ
Rated input apparent power≤60KW≥120KW
Microwave output≥50KW≤110KW
Temperature70-200ºC(controlled)70-200ºC(controlled)
Type of coolingWater-Cooling/Air coolingWater-Cooling/Air cooling
Inlet and outlet height40-100mm40-100mm
Height of conveyor600-1000mm600-1000mm
Transmission speed0~10m/min(adjustable frequency)0~10m/min(adjustable frequency)
Dehydration Rated40-50KG/hour40-50KG/hour
Contour dimension12500mm*1600mm*2200m
(customized)
12500mm*1600mm*2200m
(customized)
Width of conveyor belt750±100mm(customized)1000±100mm(customized)
Microwave leakage standardISO≤5mw/cm²ISO≤5mw/cm²

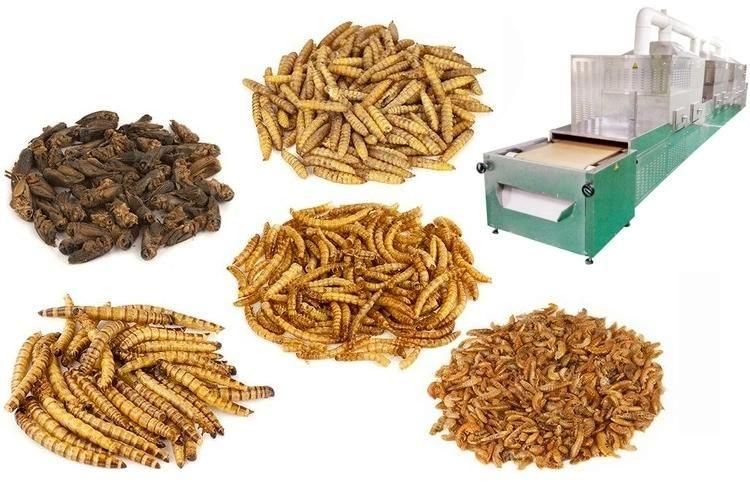

Sample Pictures
Industrial Microwave Bsfl Mealworm Drying Baking Oven Machine

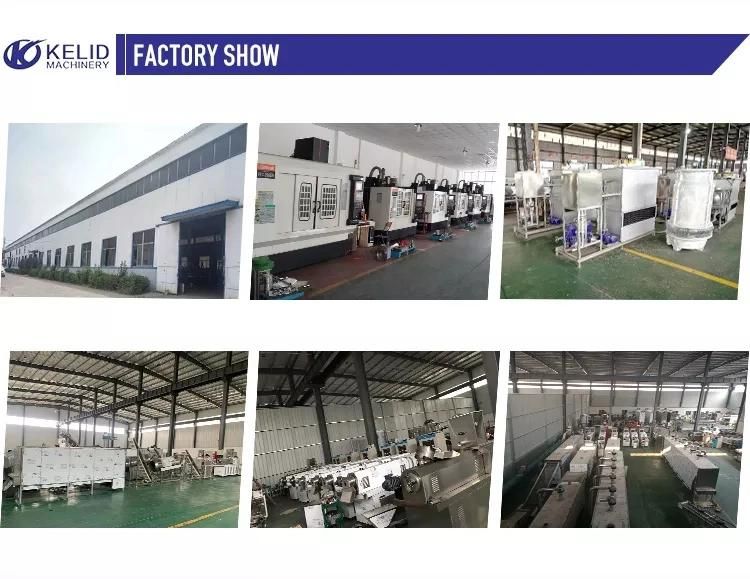

Company information

 Jinan Kelid Machinery Co., Ltd.Jinan Kelid Machinery Co.,Ltd is a modern science and technology enterprise that integrates R&D,manufacturing and sales services.Specializing in the production of microwave drying ,heating, sterilizing, thawing,extracting,equipment.
Kelid is professional manufacturer in the field of industrial microwave design,manufacturing and application.With experienced engineers,strong technical development team and over 10-year' s technology in industrial microwave equipment manufacturing, Kelid has built good cooperative relationship with domestic related research institutions.


Industrial Microwave Bsfl Mealworm Drying Baking Oven MachineService

Pre-sale services
1).Provide professional advisory services
2).Communicating with customer and learn your requirement
3).Welcome to visit our factory


Services during the sales
1).Confirm every terms and details and sign contract with customers
2).Inspect the machine before leaving the factory.
3).Packing machines and delivery on time

After-sale services
1). Provide installation, commissioning and training
2). Provide necessary technical support and update information.


Packing&shiping
Industrial Microwave Bsfl Mealworm Drying Baking Oven Machine
F&A


Q.What's the power source of the machine?
A: Electricity

Q. What's the main material of the machine?
A: SUS

Q: What's the voltage of the machine?
A: The voltage can be designed base on your local voltage.

Q: What's the dimension of the machine?
A: Machines with different power have different dimension. Bigger power, bigger dimension.


Contact us
If you are interested in our products or have some questions,Please contact us.
