• Model NO.：UBT-broiler farm
• Epidemic Prevention Equipment：Spraying Line
• Blade Type：Straight Teeth
• Computerized：Computerized
• Certification：ISO9001:2008, CE
• Condition：New
• Warranty：1 Year
• Main Feeding System：Feed Silo, Feed Hopper
• Feeding Line System：3 or 4 Feeder Per 3m
• Drinking Line System：12 or 15 Nipples Per 3m
• Ventilation System：36" Box Fans, 50" Box Fans, 50" Cone Fans
• Cooling Pad System：Cooling Pad & Aluminum Frame
• Environment Control System：T607, T616, Imageii
• Heating System：Space Heater, Gas Brooder
• Spraying System：Dustproof&, Disinfection
• Curtain System：Side Wall Curtains
• Feeding Range：1-150m
• Drinking Range：1-100m
• Motor Power：0.75kw, 1.1kw, 1.5kw
• Volt：220V, 380V
• Lead Time：<20 Days
• Transport Package：Standard Packages
• Specification：customized
• Trademark：U-Best
• Origin：China
• HS Code：84362900
• Production Capacity：1000 Sets,Year

                                                       8 Main Parts Of chicken farm equipment

   Chiken Farm Equipment Name:

There is a feed sensor at the end of each feeding line which controls motor one and off to achieve automatic feed delivery to each feed pan.

Supply clean water to each nipple steady,

chicken can drink water from 360 degree freely

Make chicken shed keep suitable temperature

for different stage chicken

The longitudinal way of cooling-fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer.

                                                                   (poultry closed system sketch layout drawing)                                                                                                                                       (poultry closed system detailed Layout Drawing)

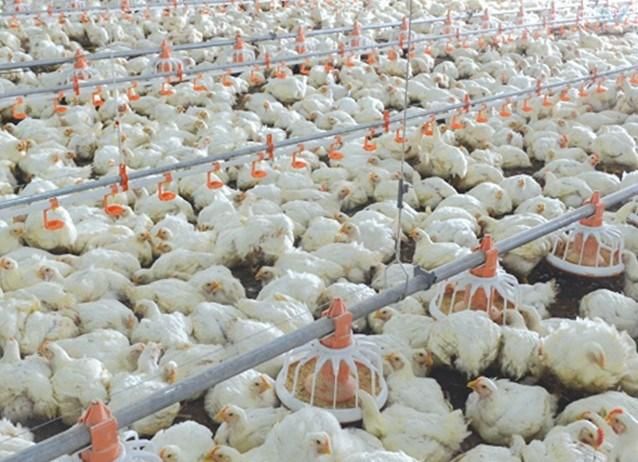

                                                  (poultry closed system chicken house inside)

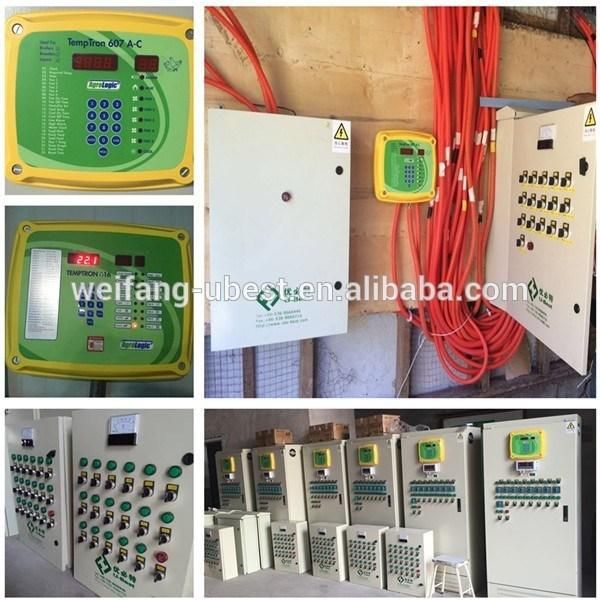

 1.Environment control system

This system could save the labor and reach a most advanced control.

2 Automatic Main Feed Line System

Feed is conveyed from the silo/manpower hopper into each feeding line.

6.2m3-11.2m3-16.4m3-21.6m3-32m3-42m3

Double layer galvanized steel sheet

Life more than 10 years

800-1200kg volume

Double-layers Galvanized Steel Sheet with film

Life more than 10 years

Power:0.75kw or 1.5kw

Voltage:220v/380v

Diameter:75*3.6mm

Material:PVC

4-pan/3m or 3-pan/3m

Diameter:45mm

Thickness:1.2mm

Material:hot-dip galvanized steel pipe

zinc coating 275g/M2

Many kinds of feeder for you choose

Made by origin plastic to make it strong

Taiwan motor

Special motor with reduction gear together

Winch,pully,fixing plate,steel rope and clamp

Convenient to adjust the height

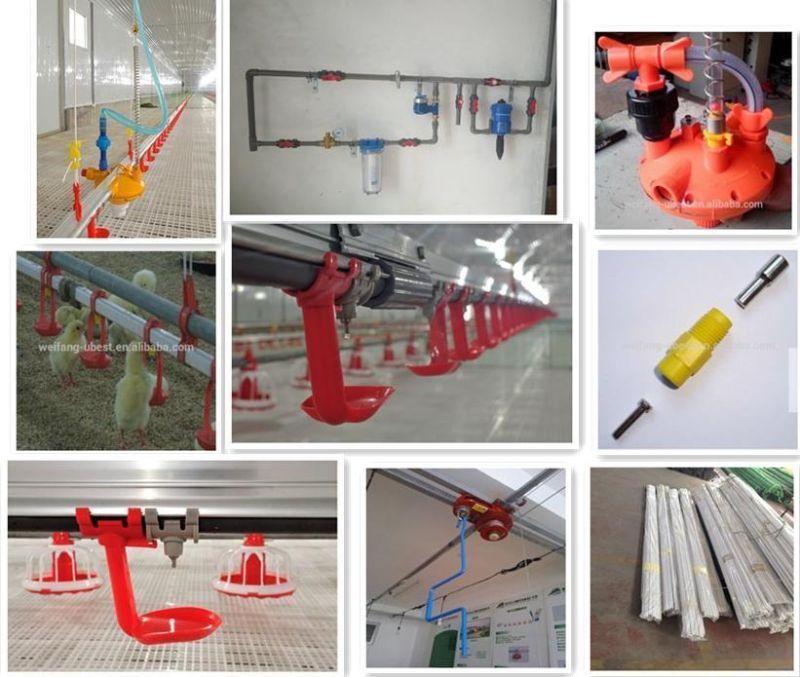

4 Automatic Nipple Drinking System

Supply clean water to nipple drinker and control water capacity steadily.

Outer material:engineering plastic

Inner material:stainless steel

Double-sealing structure with good seal ability

360 degree movable to drink

Double barreled with large flow capacity

Regulating stability

Water supply is sufficient

Sturdy and durable

Easy to take down and clean

Add medicine automaticlly

Economical and reliable

Easy to control and maintain,good corrosion resistance

Winch,pully,fixing plate,rope adn clamp

Convenient to adjust the height

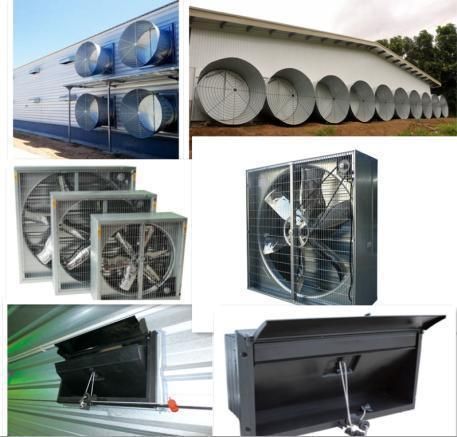

5 Ventilation System

This system controls the climate conditions,humidity and temperature in poultry shed

Power:1.1kw

Air flow:49453m3/h

Dimension:1380x1380x450

Open mode:centrifugal push-pull

Power:1.1kw

Air flow:43170m3/h

Dimension:1380x1380x450

Open mode:centrifugal push-pull

Power:0.4kw

Air flow:20800m3/h

Dimension:1000x1000x450

Open mode:centrifugal push-pull

Strong anti-aging ability,longer service

Wind deflector can prevent cold wind

Double spring ensure excelling sealing

Flexible opening with anti-bird nets

6 Cooling Pad System

It is the most economical and effective way to reduce temperature of chicken house in summer

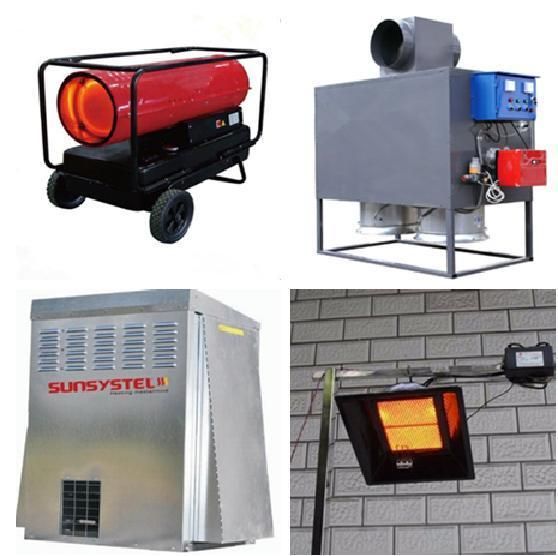

7 Heating System

This system including hot blast heater(fuel or diesel or coal), infrared gas brooder, poultry gas heater and etc.

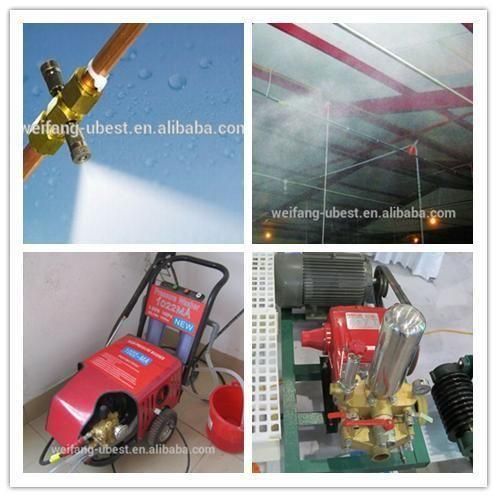

8 Fogging And Disinfection

It is effectively tools for cooling ,darmping,dedusting and dinsinfecting the house.

Customers:

                                                                                                            (Main Customers Distribution)

Contact Sven:

1. Fast response

2. Professional one-step service
