• Model NO.：FL22 MINI pump series
• Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
• Certification：ISO9001:2008, CCC, CE
• Condition：New
• Application Field：Agriculture, Forestry
• Transport Package：Box
• Trademark：LifeSRC
• Origin：China
• HS Code：84137099
• Production Capacity：100000PCS Per Month

Basic Info.

Model NO. FL22 MINI pump series Ground Drainage and Irrigation Machinery Type Pumping Irrigation Certification ISO9001:2008, CCC, CE Condition New Application Field Agriculture, Forestry Transport Package Box Trademark LifeSRC Origin China HS Code 84137099 Production Capacity 100000PCS Per Month

Product Description

Solar Water Pump for Agriculture 12v 40psi Self Priming Pump

Application:
Agriculture/Yacht / RV/Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Cleaning machine, Humidifier, Water purification, Medical apparatus
Food beverage filling & liquid transfer
Any other pressurization system
 1-Year Warranty!
 Colors: Black or required

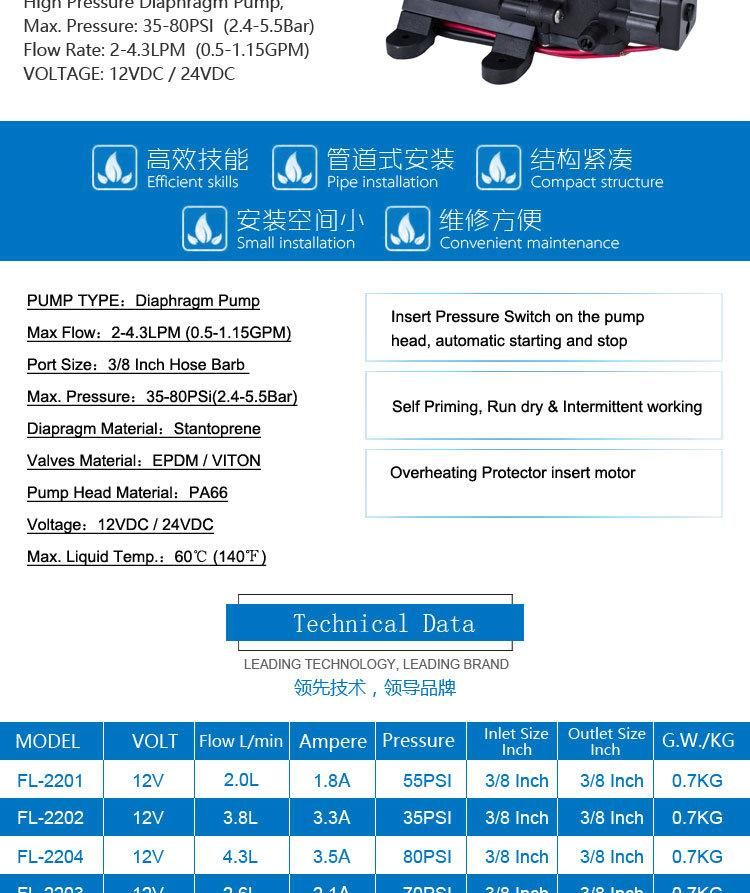

Motor Voltage	12/24V DC
Type	2 Chamber positive displacement diaphragm pump,self priming, capable of being run dry
Mode	Demand
Certifications Option	CE Approval
Liquid Temperature	140°F (60°C) Max.
Priming Capabilities	4 feet(1.2m) suction lift
Max Pressure	80psi(5.5bar)
Max Flow rate	3.8lpm(1.0gpm)
Inlet/Outlet Ports	3/8" Hose barb
Duty Cycle	Intermittent
Lead	18AWG, 13.78" long with 2-pin connector/lead

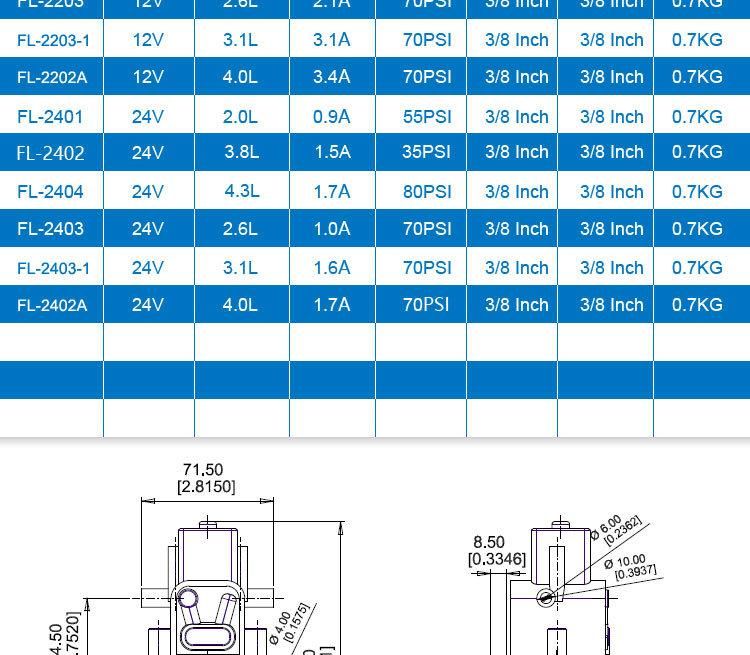

Model	L/min	Amps	PSI	Valves	Diaphragm	Ports	Voltage	Wire Connections
FL-2201	2	1.8	55	Viton	Santoprene	3/8" Barb	12V	2-Pin/Leads
FL-2202	3.8	3.3	35	Viton	Santoprene	3/8" Barb	12V	2-Pin/Leads
FL-2204	4.3	3.5	80	Viton	Santoprene	3/8" Barb	12V	2-Pin/Leads
FL-2203	2.6	2.1	70	Viton	Santoprene	3/8" Barb	12V	2-Pin/Leads
FL-2203-1	3.1	2.2	70	Viton	Santoprene	3/8" Barb	12V	2-Pin/Leads
FL-2202A	4	2.6	70	Viton	Santoprene	3/8" Barb	12V	2-Pin/Leads
FL-2401	2	0.9	55	Viton	Santoprene	3/8" Barb	24V	2-Pin/Leads
FL-2402	3.8	1.5	35	Viton	Santoprene	3/8" Barb	24V	2-Pin/Leads
FL-2402-1	4.3	1.7	80	Viton	Santoprene	3/8" Barb	24V	2-Pin/Leads
FL-2403	2.6	1	70	Viton	Santoprene	3/8" Barb	24V	2-Pin/Leads
FL-2402A	4	1.3	70	Viton	Santoprene	3/8" Barb	24V	2-Pin/Leads
