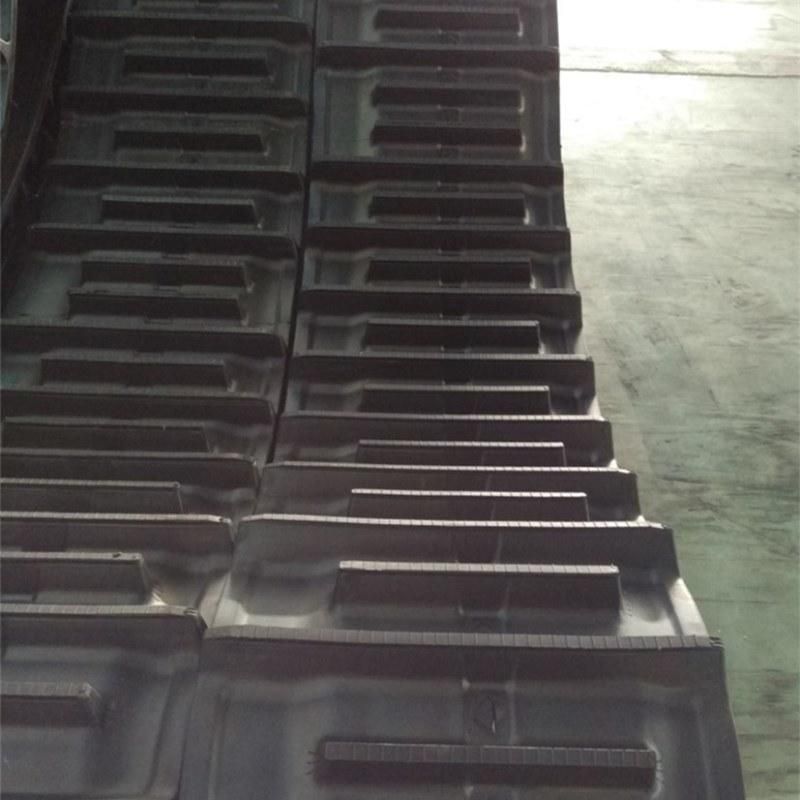

Yanmar Combine Harvesters Aw70V Rubber Track 425*90*51

Shanghai Puyi Industrial Co., Ltd.
  • Type:Shovel
  • Usage:Agricultural Products Processing, Harvester
  • Material:Rubber and Steel
  • Power Source:Gasoline
  • Width:425mm
  • Pitch:90mm

Base Info

  • Model NO.:425*90*51
  • Links:51(Can Be Customized)
  • Color:Black
  • Warranty:Guarantee 12 Months Under Normal Use
  • Delivery Time:with 15 Days After Payment
  • Exported Markets:Global
  • Transport Package:Bare Packing or Wooden Pallets
  • Specification:425*90*51
  • Trademark:No marks or As Buyer′s Requests
  • Origin:Shanghai, China
  • HS Code:8431499900
  • Production Capacity:3500PCS,Month

Description

Basic Info.

Model NO. 425*90*51 Links 51(Can Be Customized) Color Black Warranty Guarantee 12 Months Under Normal Use Delivery Time with 15 Days After Payment Exported Markets Global Transport Package Bare Packing or Wooden Pallets Specification 425*90*51 Trademark No marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 3500PCS/Month

Product Description

Specifications of rubber track
Kubota DC105X Rubber Track for agriculture harverster machinery (575X93X58)

Yanmar Combine Harvesters Aw70V Rubber Track 425*90*51




1). Continuous rubber track

2). Conventional type or interchangeable type rubber track

3). Warranty: Guarantee one year under normal use

4). Conventional and interchangeable type

5). OEM orders of complete track systems are welcome

6). Comprehensive range of standard rubber crawler track systems are available

7). Undercarriages and bases are available for a wide range of machinery

8). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle,

Agriculture machinery, paver and other special machine

9). Warranty: 12 months

10). Certification: ISO9001: 2000

Rubber Track we can supply such as KUBOTA, MOROOKA, YANMAR, TAKEUCHI, BOBCAT, CAT, KOMATSU, KOBELCO, SUMITOMO, DOOSAN, DAEWOO, FIAT, IHI, HITACHI, HYUNDAI, KATO, JCB, JOHN DEERE, YUCHAI, Volvo, TEREX...

1. Installation of the Rubber Tracks
A. Too small strength: Easily causes jumping teeth, riding a tooth or steering failure of the guide wheels and supporting wheels and leads to track derailment or escapes.
B. Too large strength: Track wire will be deformed at the elongation by the excessive strain tensile, which will make the pitch changed, and track core iron and the drive wheels abnormally worn, also will make teeth touched and the track broken, the machine power loss larger, track wear exacerbated, belt crack easier as well as the track life shorter. After the track is strained, the maximum sag distance is 10-15mm, just as the pitch below.

2. Attention
In order to extend the life of rubber tracks, please complete the following work:
A. Never turn urgently on the concrete floor, gravel road, or hard and sharp road, in order to avoid speeding up the wearing, twisting and chapping of the rubber track.
B. Try not to work in the rotten field, to avoid rubber track skid and wear.
C. When the stones or other objects come into the crawler and chassis, stop immediately, and clear gravels or obstacles.

3. Warns
A. Do not travel on the road full of footstone, spinous-stone, scrap iron and other objects.
B. Do not drive in the rivers, streams and on the seacast or any rugged road.
C. Do not make the track unilaterial landing.
D. Forbid aggressive driving.
E. Avoid making a turn rapidly, please slow down and make a turn gradually.

4.Parameters:
Width*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of Links
130*7228-53300*52.5K72-84400*72.5KW68-92
150*6028-49300*52.5KW72-92400*7468-76
150*7229-40KB300*52.572-92400*75.5K74
170*6030-40KB300*52.5N72-98B400*8652-55
180*6030-40JD300*52.5N72-98400*9042-56
180*7230-58300*53K80-84Y400*14236-37
180*72K30-37300*5570-86400*14436-41
B180*72K34-51300*55.5K76-82Y400*144K36-41
B180*72A30-51300*71K72-55420*10050-58
H180*7230-50300*109N25-42450*7176-88
190*6030-40K300*10937-41DW450*7176-88
190*7234-39300*109WK35-42450*73.576-84
200*7234-47B300*8478-52450*7680-84
200-*72K37-47T300*86K48-52450*81N72-80
230*4860-84320*52.572-98450*81W72-78
230*48K60-84B320*52.568-98KB450*81.572-80
230*7242-56320*5470-84K450*83.572-74
230*72K42-56B320*8649-52B450*8453-56
230*9630-48320*9052-56B450*8652-55
230*10130-36320*10038-54450*9058-76
250*47K84320*100W37-65KU450*9058-76
250*48.5K80-88Y320*106K39-43T450*100K48-65
250*52.5K72-78350*52.570-92K450*16338
250*7247-57350*54.5K80-86485*92W74
B250*7234-60B350*55K77-98500*9076-82
B250*72B42-58350*5680-86500-9272-84
E250*7237-58350*75.5K74500*92W78-84
250*9635-38350*9042-56500*10071
250*10935-38350*10046-60K500*14635
260*55.5K74-80350*10840-46600*10076-80
Y260*9638-41350*10941-44600*12556-64
260*10935-39Y370*107K39-41700*10080-98
280*7245-64400*72.5N70-80750*15066
Y280*106K35-42400*72.5W68-92800*12580
300*52.5N72-98Y400*72.5K72-74
300*52.5W72-92KB400*72.5K68-76

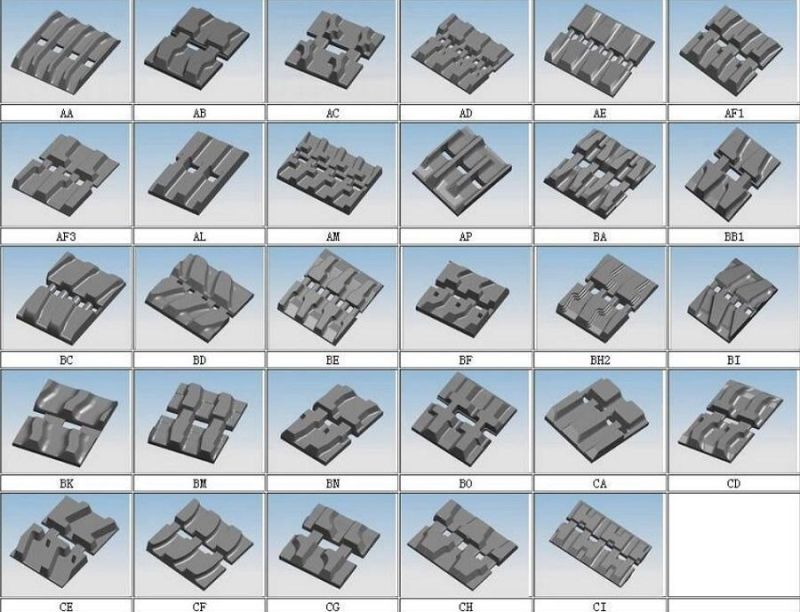

5.Pattern of Lugs:
Kubota DC105X Rubber Track for Agriculture Harverster Machinery (575X93X58)


About Us:

Our plant mainly produce Rubber Track which are specially good use for these kind of Machine:

Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders, Pitch Paver, Agricultural

Harvester, Dumpers...Etc.

Harvester Brand: Kubota, Jiangsu World, Coria, Japan, Yanmar, Fukuda, Korea Datong.

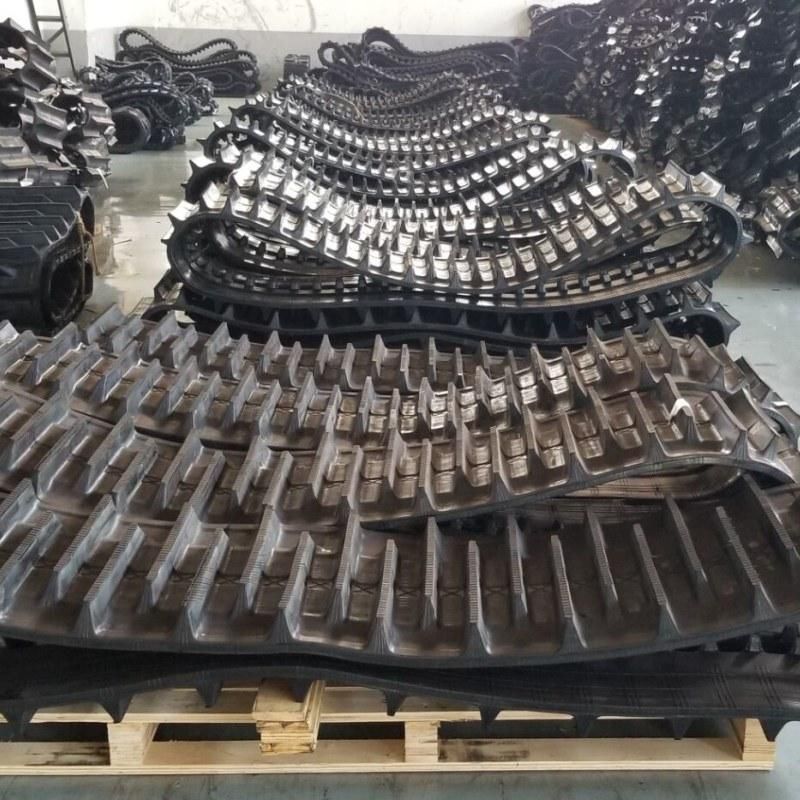

Warehouse:

Yanmar Combine Harvesters Aw70V Rubber Track 425*90*51
