• Model NO.：DP-LZNY-280
• Length：1680mm
• Height：420mm
• Load-Bearing：4000lbs
• Motor：Selectable
• Transport Package：Pallet or Bare Package
• Specification：1680X1195X420
• Trademark：No Marks or As buyer′s requests
• Origin：China
• HS Code：8431499900
• Production Capacity：1000set,Year

Basic Info.

Model NO. DP-LZNY-280 Length 1680mm Height 420mm Load-Bearing 4000lbs Motor Selectable Transport Package Pallet or Bare Package Specification 1680X1195X420 Trademark No Marks or As buyer′s requests Origin China HS Code 8431499900 Production Capacity 1000set/Year

Product Description

Product Information:

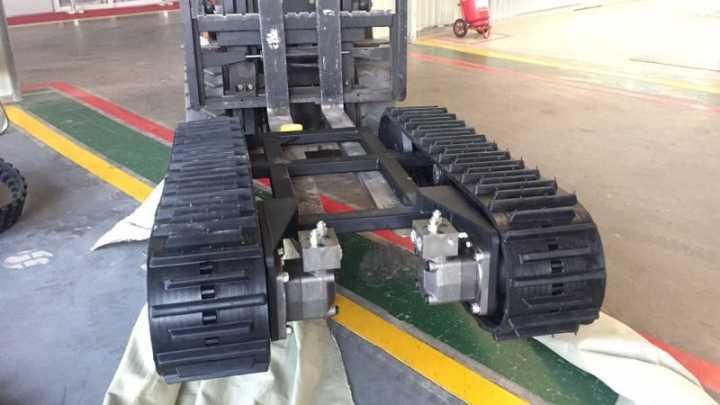

Item: Rubber track undercarriage
Main Parts:Rubber track;construction frame;tensioning screw,drive wheel/sprocket; support wheels,and idler,etc.
Material:Steel,Aluminum alloy,rubber

Description of the rubber track undercarriage:
1. Wide used on snow blower,paver,dumper,mini excavator,small harvester,anti-fire robot,raw mower,and other small or mid size machine design.

2. Easy for vehicles to run on hill land, mud road, sand ground...
Application: All terrain/season;Warranty: 12 months

Their choice of operating environment and notice are as follows:
(1) rubber track,temperature is generally between -25 ~ + 55'C.

(2) chemical, oil, sea salt will accelerate the aging track, after use in such an environment, need to clean track.

(3) sharp edge (such as steel, stone, etc.) of the road will cause damage to the rubber track.

(4) the curb of the road, rutted or uneven pavement can cause side edge of the ground track pattern to be cracked, but the rubber track can be used continuously if the inside steel cord has no injuries.

(5)gravel, gravel road will result in abrasion earlier where the idlers connect with the rubber track, and formation of small cracks. Serious water ingress, causing iron core loss, wire breakage.



Length	Width	Height	Drive wheel Diameter	track Width	Track Links	Weight	Load-Bearing Weight
1680MM	1195MM	420MM	320MM	280mm	60	375kg	2000kg

You can send us message with the size you need for the undercarriage

1.Max loaded weight and what kind of machine to fit is necessary to determine the rubber track type

2.The entire size of the rubber track undercarriage,like the Width,Length,Height is also very important for us to make a recommendation for you.

3.The undercarriage in the ads,please have a reference,if you like,we can adjust the size for you.Special customized size is also acceptable.
