• Model NO.：U22K
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：850mm*570mm*1300mm
• Max Pesticide Load：25kg
• Aircraft Medicine Box Capacity：22L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：45kg
• Aircraft Weight：10kg
• Flight Attitude：Less Than 30m
• Flight Duration：13-33minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802110010
• Production Capacity：10000 Unit

Basic Info.

Model NO. U22K Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 850mm*570mm*1300mm Max Pesticide Load 25kg Aircraft Medicine Box Capacity 22L Flight Radius Less Than 5000m Max Takeoff Weight 45kg Aircraft Weight 10kg Flight Attitude Less Than 30m Flight Duration 13-33minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802110010 Production Capacity 10000 Unit

Product Description

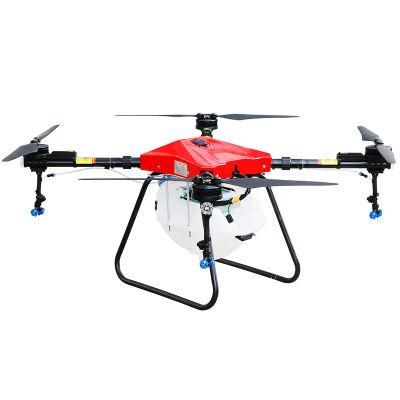

China drone crop seeder agriculture drone for sowing pesticide
- OEM  & ODM Service -When adding medicine to the medicine barrel, a filter screen must be placed at the mouth of the medicine barrel to prevent debris or medicines that are not completely stirred evenly from clogging the spray head or water pump and affecting the working efficiency. (Be careful not to splash on the drone when adding medicine)The new battery needs to be activated when it is used, and the charging current cannot be too high when the new battery is used for the first few times.

Model	U22K
product material	Aviation carbon fiber + aviation aluminum
Product expansion size	2800mm*2800mm*850mm
Product folding size	730mm*670mm*1740mm
Maximum takeoff weight	71KG
Maximum load	35KG
Aircraft weight	36KG
Aircraft medicine box capacity	20L~22L
Fuel tank capacity	2.5L
Flight altitude	≤30 meters
Flight radius	≤5000 meters
flight duration	13~33 minutes
Flight speed	1-20 m / sec
Aircraft dynamic life	≥100,000 hours
Aircraft rack life	≥10 years
Engine life	150-400h
Engine system power	7.2kw
Job width	6-8 meters
Job life	8~15 minutes when fully loaded
Hovering in the air	Hovering in any direction
Spray flow	5-8L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Control System	Agricultural special controller
Control efficiency	≥66.6 hectares/day
Safe takeoff and landing wind speed	≤7
Charging system	Lithium balance computer charger
Motor speed	5000 rpm
