• Model NO.：5XZ-6
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. 5XZ-6 Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/Year

Product Description

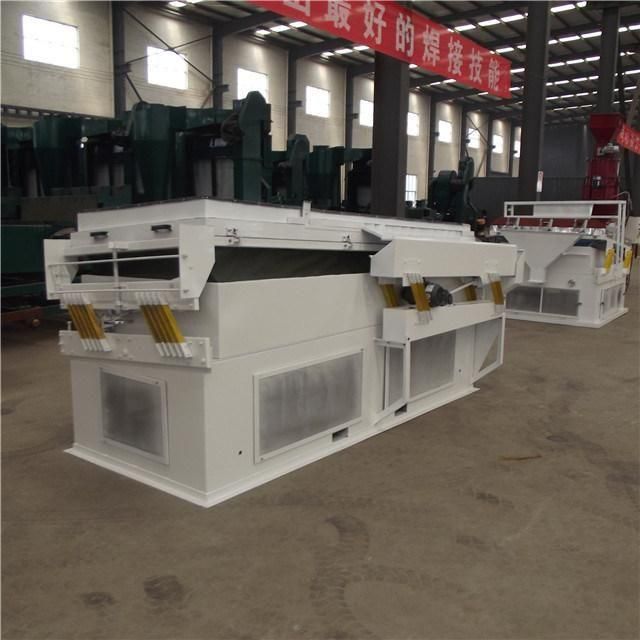

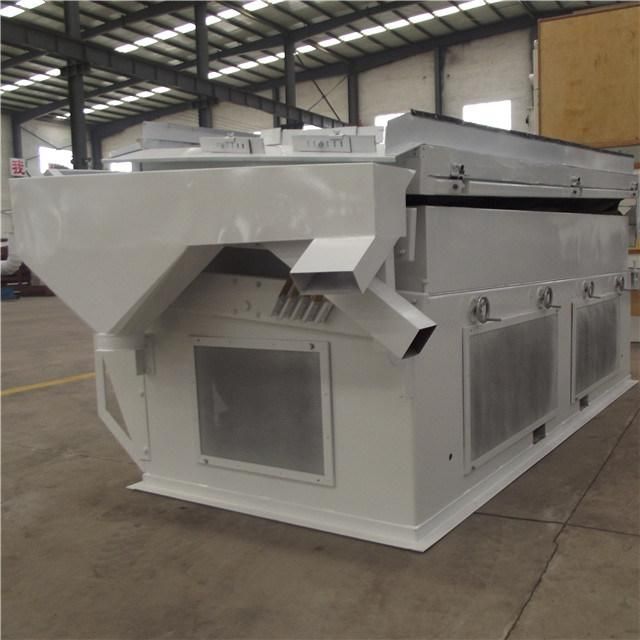

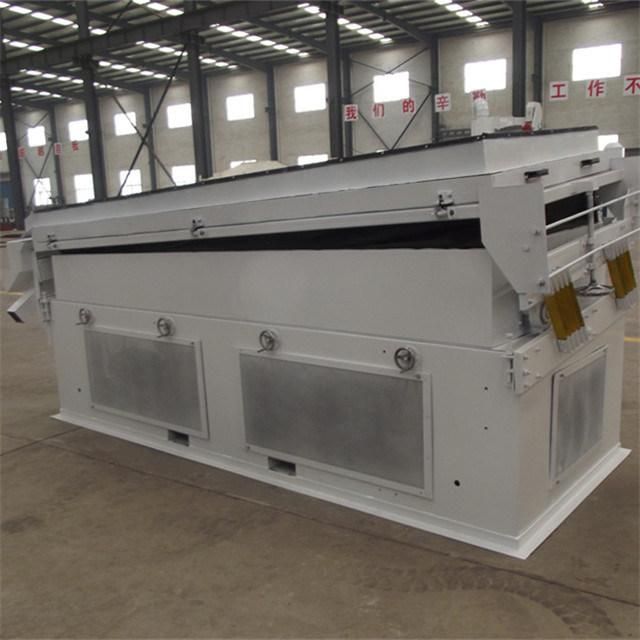

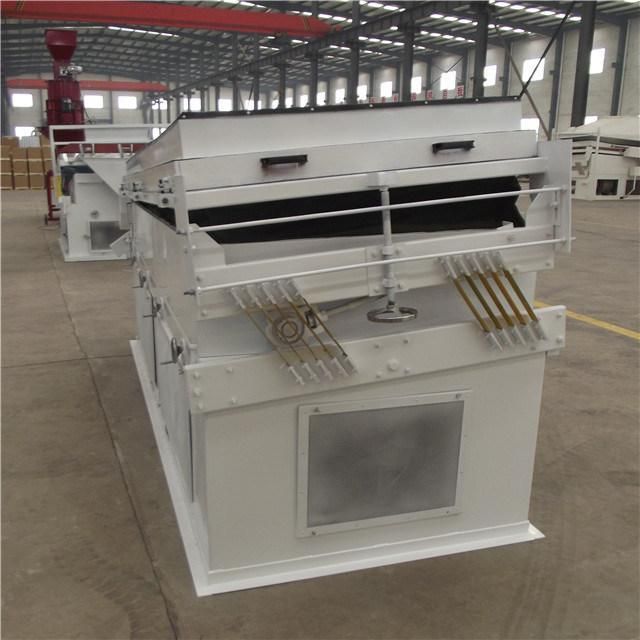

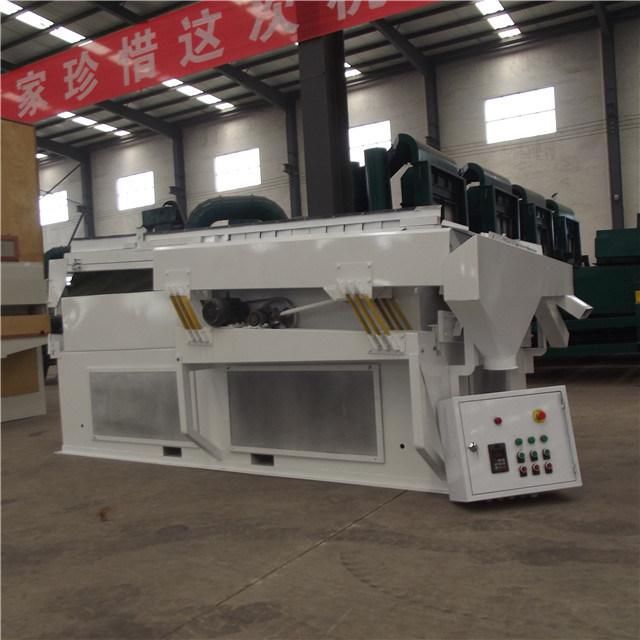

                                   5XZ-6 Oat Lentils Seed Gravity Table / Quinoa Gravity Separator

Introduction of 5XZ-6 Oat Lentils Seed Gravity Table / Quinoa Gravity Separator:
5XZ-6 Oat Lentils Seed Gravity Table / Quinoa Gravity Separator is the blowing type High Quality Stanard Gravity Separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.

Application of 5XZ-6 Oat Lentils Seed Gravity Table / Quinoa Gravity Separator
The High Quality Stanard Gravity Separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The High Quality Stanard Gravity Separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
The High Quality Stanard Gravity Separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.

Working Principle of 5XZ-6 Oat Lentils Seed Gravity Table / Quinoa Gravity Separator
The High Quality Stanard Gravity Separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

Specification of 5XZ-6 Oat Lentils Seed Gravity Table / Quinoa Gravity Separator:

Model	Capacity (KG/H)	Power(KW)	Weight(KG)	Dimension(mm)
5XZ-3	3000	7.45	1300	2600*1500*2100
5XZ-6	5000	8.95	2000	3440*1630*1900
5XZ-10	10000	15	2500	4300*1960*2500
