• Model NO.：5XQS-5
• Function：Stone Removing Machine
• Productivity：100 Sets Per Month
• Warranty：1 Year
• Power：220-415V, 50 or 60Hz
• Transport Package：Wooden Case or Container
• Specification：ISO9001: 2008, SGS, TUV, SONCAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：80sets,Month

Basic Info.

Model NO. 5XQS-5 Function Stone Removing Machine Productivity 100 Sets Per Month Warranty 1 Year Power 220-415V, 50 or 60Hz Transport Package Wooden Case or Container Specification ISO9001: 2008, SGS, TUV, SONCAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 80sets/Month

Product Description

stone separating machinery

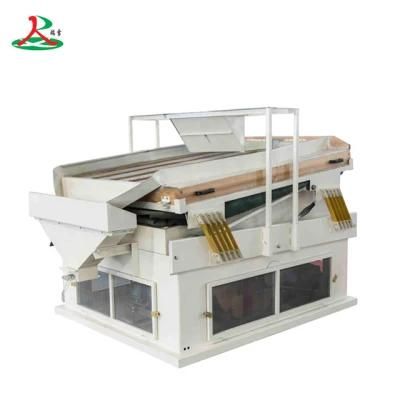

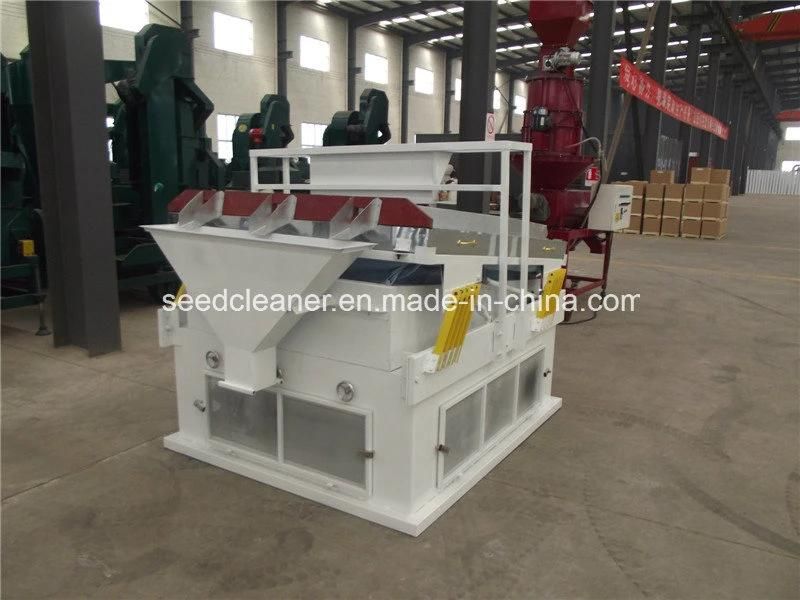

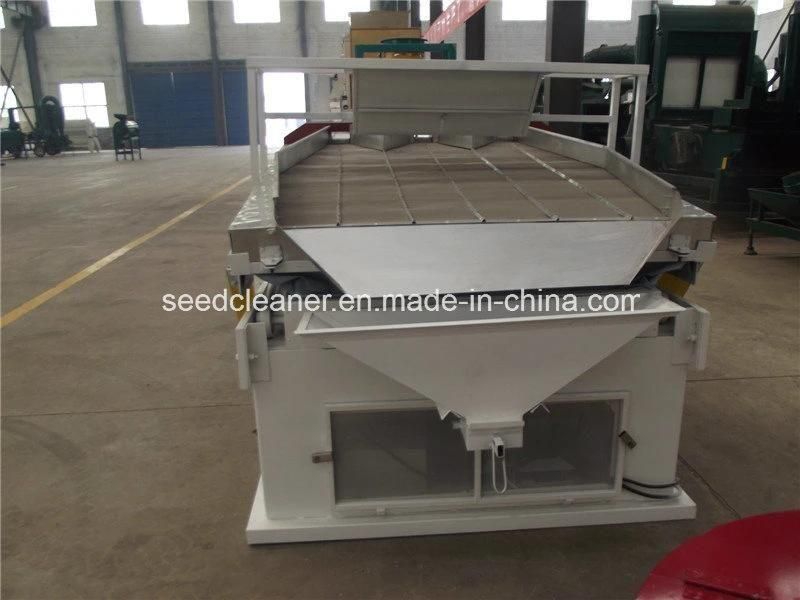

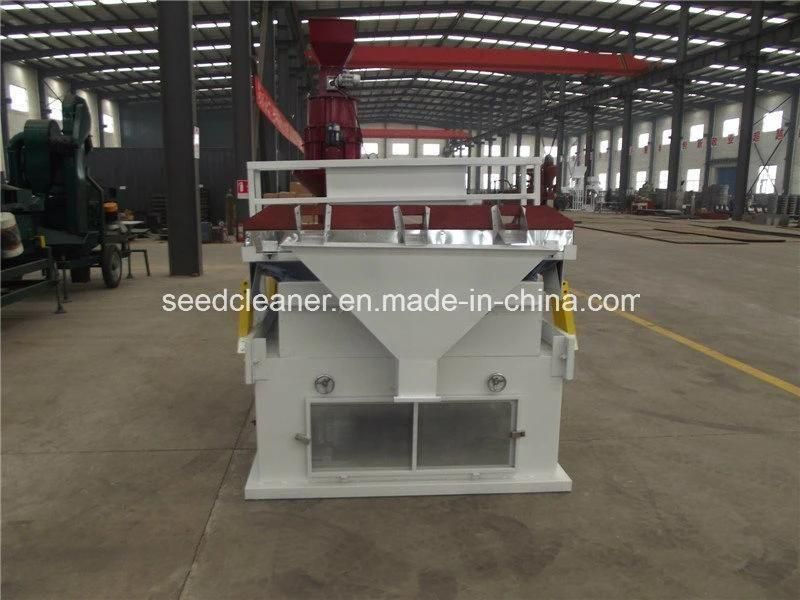

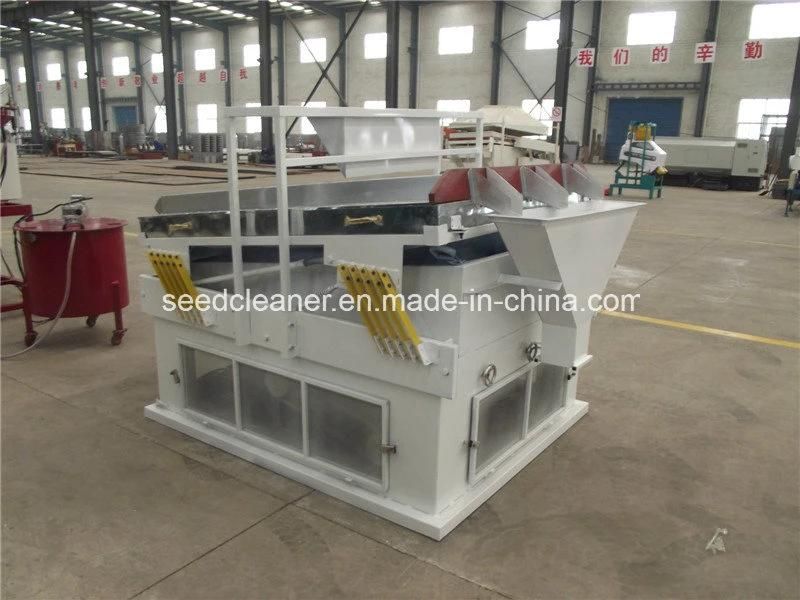

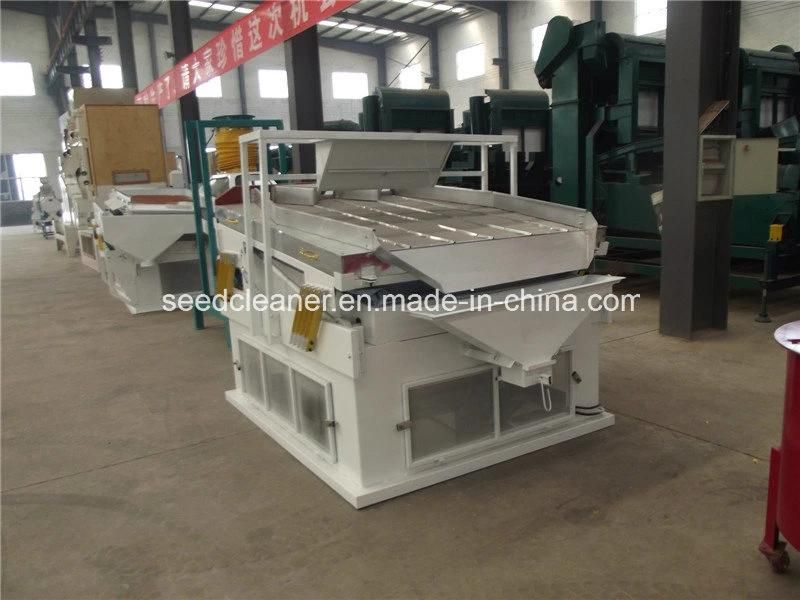

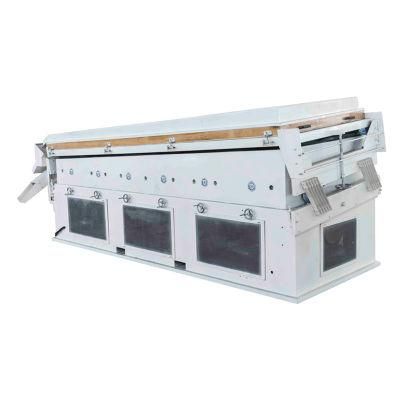

Introduction of 5XQS-5 stone separating machinery
5XQS stone separating machinery is used to remove heavy foreign impurity like stone, metallic and glass pieces etc on the principle of weight difference.

Features of 5XQS-5 stone separating machinery
5XQS stone separating machinery is barotropic (blowing type) destoner , 5XQS stone separating machinery is also called universal destoner, it can process all kinds of seeds and beans, and have very good destoning results for beans , sunflower seeds and sesame.

Working Principle of 5XQS-5 stone separating machinery
By the fluidization of seeds caused by deck vibratory with air blowing, heavy particles move to upper levels of the deck , light particles move to the lower level of the deck, and discharged from different outlets .

Technical of specification of 5XQS-5 stone separating machinery


Model	Capacity (tone/hour)	Power (kw)	Weight (kg)	Dimension (L×W×H)mm	Remarks
5XQS-3 Destoner	3	4.75	600	2200×1200×1600	Blowing type
5XQS-5 Destoner	5	7	700	2500 ×1660 ×1600	Blowing type

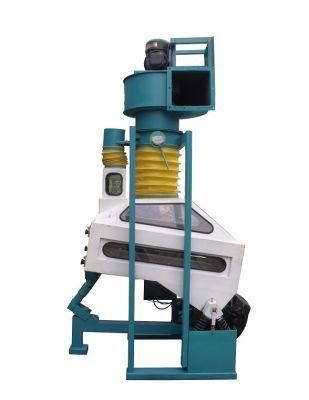

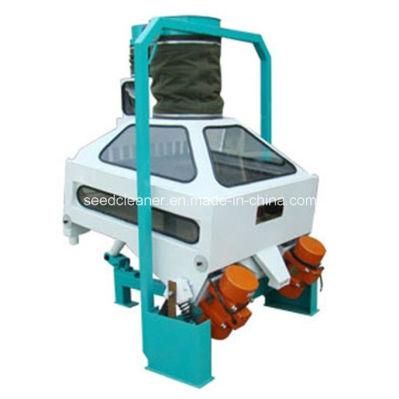

QSX-85 Destoner	5	3.55	400	1300×1500×3200	Suction type
TQSF-60 Destoner	5	3.5	320	1450×876×1800	Suction type
TQSF-80 Destoner	7.5	3.5	400	1450×1046×1800	Suction type
TQSF-100 Destoner	10	3.5	480	1450×1246×1920	Suction type
