• Model NO.：CS120
• Product Size：1800X800X1150mm
• Packing Size：755X890X1225mm
• Transport Package：Wooden Box
• Specification：120mm
• Origin：China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. CS120 Product Size 1800X800X1150mm Packing Size 755X890X1225mm Transport Package Wooden Box Specification 120mm Origin China Production Capacity 500PCS/Month

Product Description

14HP Kohler Tow-Behind Wood Chipper Shredder

Description of wood chipper

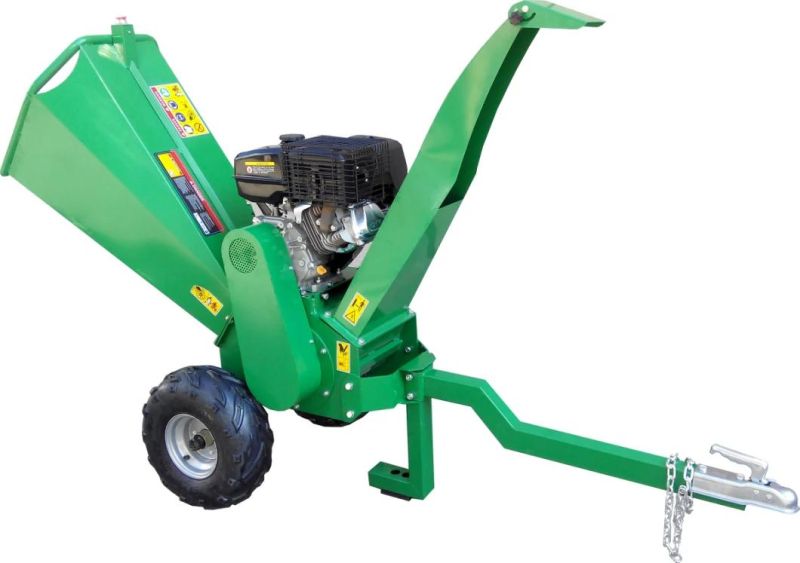

RIMA designed the CS120 Chipper to break down branches and sticks up to a 120mm diameter. The Chipper is powered by a 15HP single cylinder petrol engine, featuring a 12 volt electric key starting device. The engine transmits its power to the chipper drum via a centrifugal clutch and a pair of thick rubber drive belts.

The chipper drum is mounted on 2 sealed bearings and features 2 opposing double-sided (reversible) hardened chipper blades, these blades rotate anti-clockwise toward the adjustable counter knife at between 3000 and 4000 RPM. The blade clearance between the chipper blades and chippers counter knife is optimal between 0.5 and 1mm. The chipper can process branches with a maximum diameter of 120mm. We have found that its optimal working range is around 80-100mm depending on the moisture level hardness and all manner of other factors affecting the wood you are chipping.

The CS120  has been designed as a chipper, not a shredder and it is not designed to handle green waste on its own.

The Chipper is mounted on an 800mm wide towable chassis with a 50mm ball hitch and safety chain. The chipper is fitted with large pneumatic tires making it easy to handle and maneuver to your desired chipping area. The CS120 Chipper has been designed with two useful handles integrated into the intake hopper, these are at a nice working height and allow the chipper to be tilted back to a point of balance and moved around easily by hand without a tow vehicle (not for road use). The intake hopper of the chipper is also fitted with a hinge making access to the chipper drum and blades very easy. The chipper outlet chute is fitted with a 360-degree swivel head allowing the material from the chipper to be directed to where you need. The garden chippers stand leg folds up and is retained by a locking pin for transporting around. (while on tow - not for road use).

The RIMA 120 Chipper is fitted with an emergency cut out switch operated by a safety bar around the chipper?s intake hopper, the chippers other safety features include a belt guard covering the chipper's drive belts.

Main Feature:

Tow Bar - Easy-to-remove

Dual belt drive system

Designed to be powerful and solid

The wood chipper is capable of making quick work of branches up to 5" diameter.



Model	CS-120
Chipping Capacity	120mm
Blade Length	300mm
Engine	15HP (China Engine) 13.5HP(Briggs&Stratton)
V-Belt NO.	2 pcs
N.W./G.W.	185kg/205kg
Product Size	1800X800X1150mm
Packing Size	755X890X1225mm
20'' /40''HQ	30/68pcs

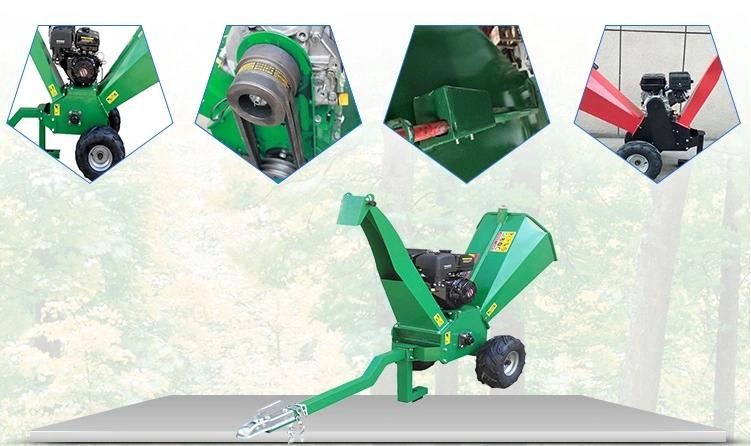

Detail image

After sale

we will provide new electrical accessiores or parts in warranty during time.(one year warranty period)

Certificate

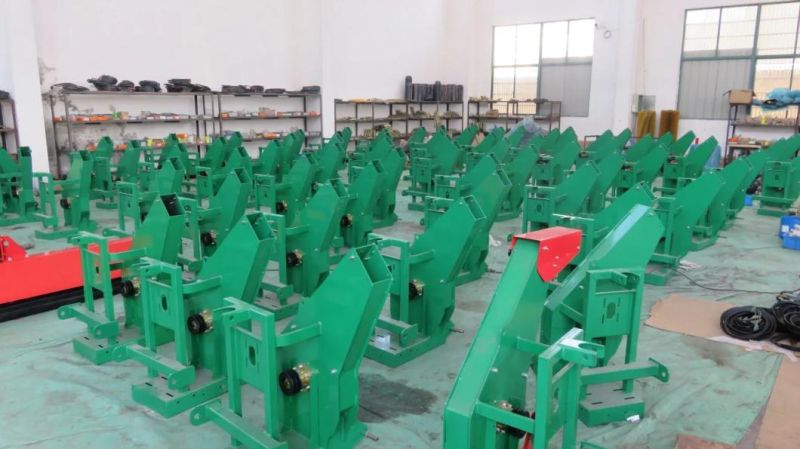

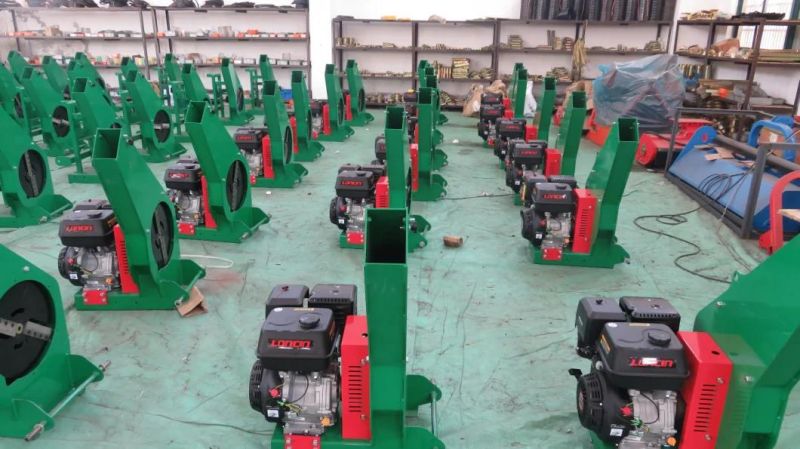

Company information

Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers' requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
