• Model NO.：LSG500
• Max. Open：1035mm
• Max. Pressure：20MPa
• Linkage：Cat I
• Tractor：25-40HP
• Weight：145kg
• Transport Package：Iron Pallet
• Specification：LGS500
• Origin：China
• Production Capacity：100PCS,Month

Basic Info.

Model NO. LSG500 Max. Open 1035mm Max. Pressure 20MPa Linkage Cat I Tractor 25-40HP Weight 145kg Transport Package Iron Pallet Specification LGS500 Origin China Production Capacity 100PCS/Month

Product Description

Tractor Mounted Log Skidding Grapple forest
Description of log skidding grapple

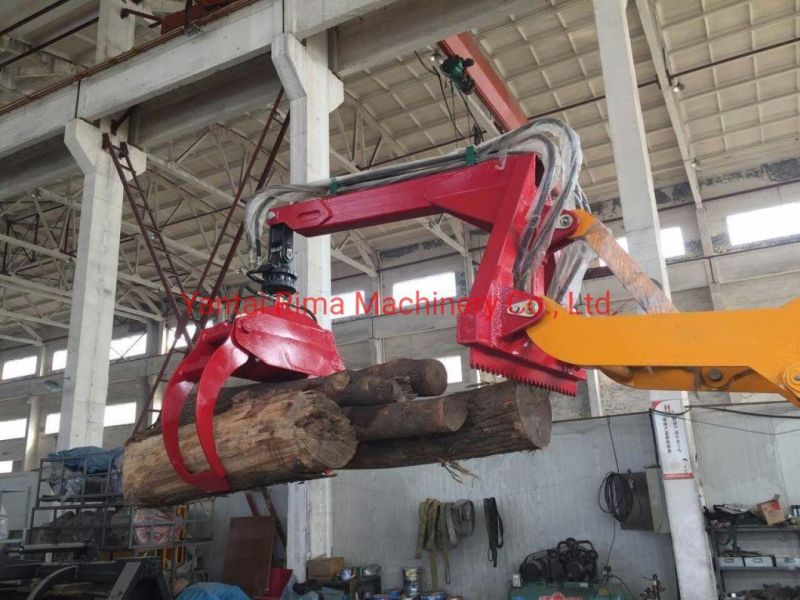

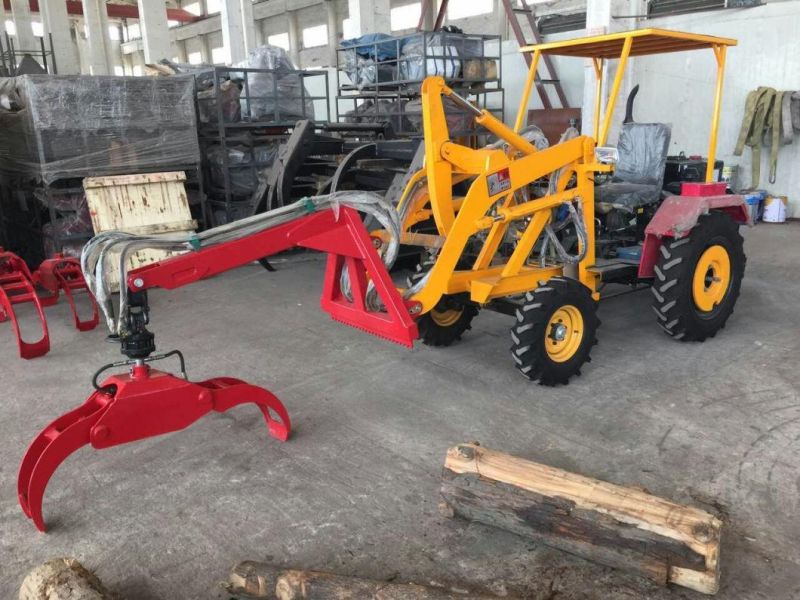

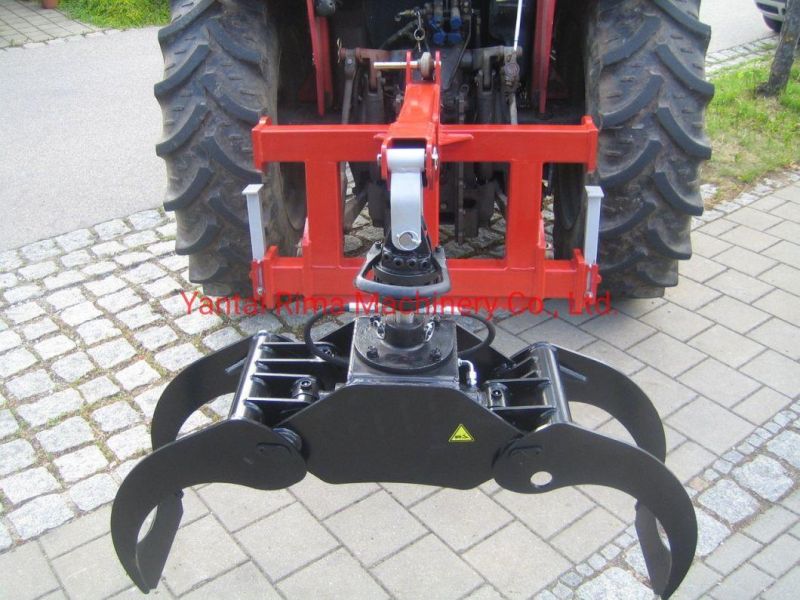

SKidder is an excellent tool for small and medium-sized tractors to haul full trees or lift and move logs.

 The skidder is equipped with a hydraulic telescopic arm which allows you to reach the logs and pull them in close to the tractor before skidding, improving your center of gravity and tractor traction. It also comes with a hydraulic motor to rotate the grapple 1 full turn in order to precisely lign up the grapple with the log.

As an extra option to the skidder we offer remote controlled winch. With the winch also comes the protective screen to protect driver and the tractor.  Accessories

• Rotary oil motor for claw rotation
• Transport lock for grapple
• Hydraulic control valve

Model	LSG500
Lift Capacity	500kg
Rotator	1 ton
Max. Open	1035mm
Grapple Area	0.14 m2
Max. Pressure	20Mpa
Linkage	Cat I
Tractor	35-40HP
Weight	145kg
Packing size	1200*1100*1350mm(2pcs)

Detail image

After sale

we will provide new electrical accessiores or parts in warranty during time.(one year warranty period)

Company information

Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers' requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
