• Model NO.：RC
• Use：Load and Unload Timber
• Weight：1000kg
• Lifting Capacity：300kg
• Slewing Angle(Degree)：360
• Raw Material：Steel
• Working Pressure：175 Bar
• 3-Point Linkage：Cat-2
• Transport Package：Iron Pallet
• Specification：4000*800*2000mm
• Trademark：RIMA
• Origin：Shandong

Basic Info.

Model NO. RC Use Load and Unload Timber Weight 1000kg Lifting Capacity 300kg Slewing Angle(Degree) 360 Raw Material Steel Working Pressure 175 Bar 3-Point Linkage Cat-2 Transport Package Iron Pallet Specification 4000*800*2000mm Trademark RIMA Origin Shandong

Product Description

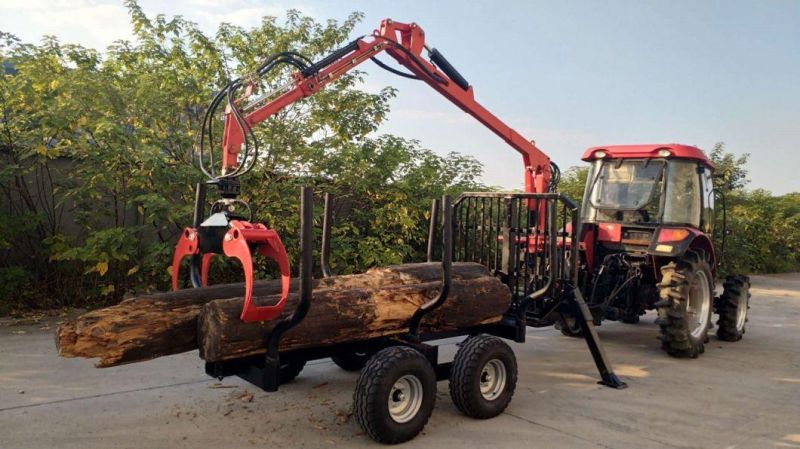

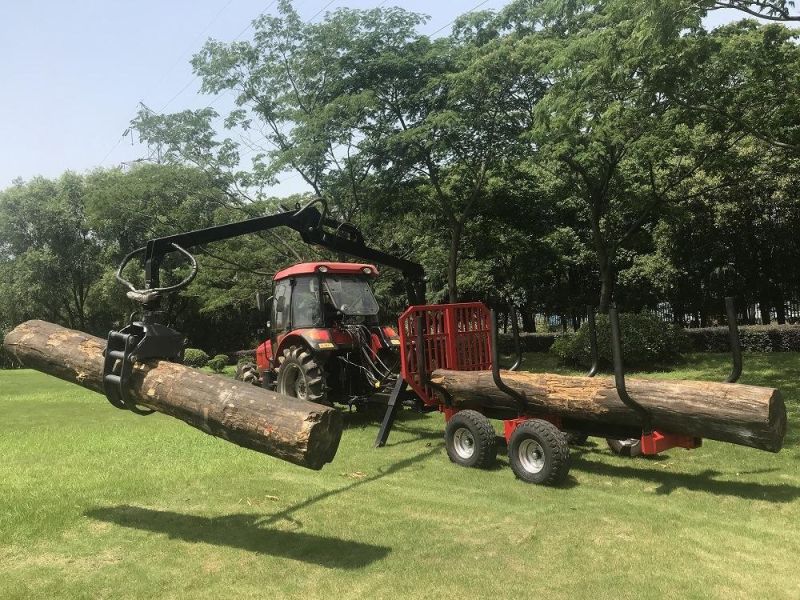

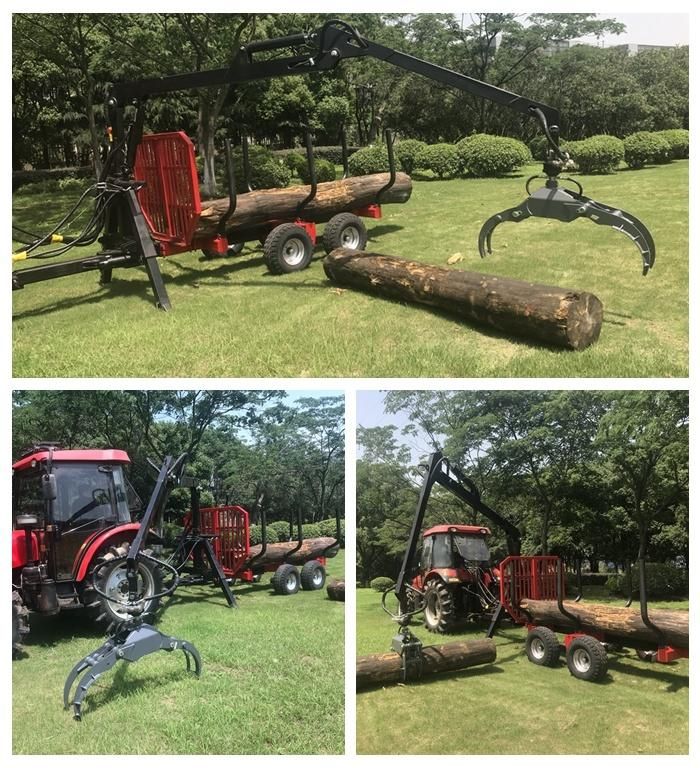

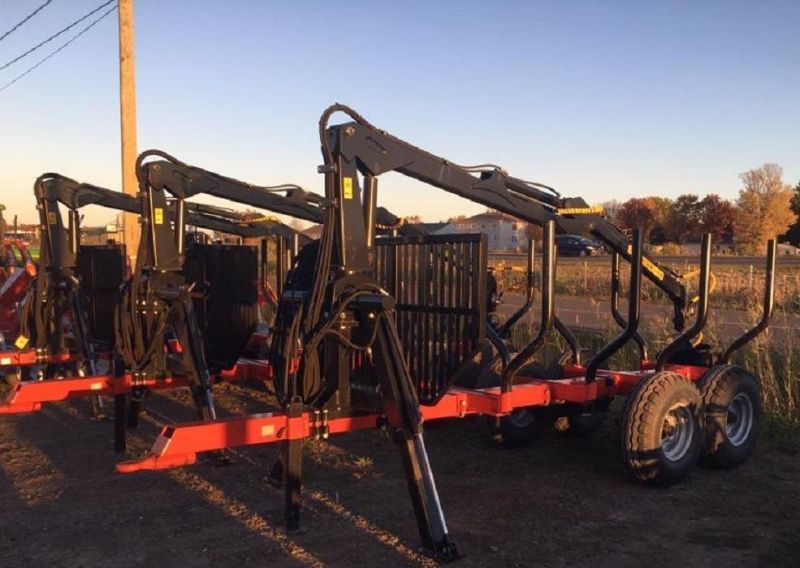

Telescope boom truck log crane hydraulic timber crane

Product Description
Forestry loader cranesmounted on a truck and forest trailers. Ideal for lifting,handling and transportinglong logs and firewood with speed and precision. Specifically designed for anygrab need related to timber loading, they have great lifting and loading capacity thanks to their special geometry.

Model	RC4100	RC4700	RC5500	RC6500-T1	RC6500-T2	RC7300	RC7500-T2
Max Outreach, M	4.1	4.7	5.5	6.5	6.5	7.3	7.5
Lifting Moment, gross KNm	28	28	44	52	52	63	63
Lifting capacity at 4 m (excl. grapple and rotator, KG)	300	400	550	800	800	725	725
Lifting capacity at full reach (excl. grapple and rotator, KG)	300	300	500	480	480	450	450
Telescopic boom, PCS	NO	NO	NO	1	2	NO	2
Valve Block	5/7	5/7	5/7	6/8	6/8	6/8	6/8
Slewing torque, KNm	7	7	11.1	11.1	11.1	11.1	11.1
Rotator, TON	1	3	3	3	3	3	3
RG Series Grapple,M2	0.14	0.18	0.22	0.22	0.22	0.22	0.22
Slewing angle, °	360	360	360	360	360	360	360
Slewing cylinders, PCS	4	4	4	4	4	4	4
Working pressure, BAR	175	175	180	190	190	190	190
Crane's weight without outriggers and valve block, KG	270	350	550	600	660	830	930
3-Point Linkage	Cat-1&2	Cat-1&2	Cat-2	Cat-2	Cat-2	Cat-2	Cat-2
A type outriggers weight, KG	170	170	170	170	170	170	170
B type outriggers weight, KG	210	210	210	210	210	210	210
Weight of standard grapple and rotator, KG	63	73	113	113	113	120	120

Main Features

1. Three-point linkage,suitable for tractor
2. The crane can reach 4.1m, 4.7m,5.5m 6.5m and 7.5m
3. EU-Standard

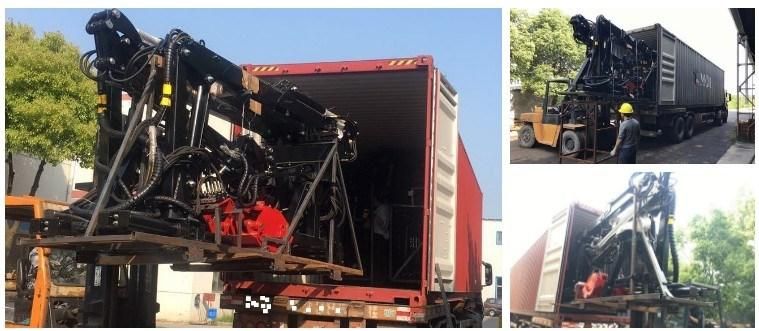

Packing & Delivery

FAQ

01 Are you factory or trading company?

A) We are ISO9001 certified factory, mainly manufacture in Forestry & Farm Machinery.
B) Using "Self-produced Self-marketing" business, reducing the cost of intermediate links

02 Can we buy one sample?

Yes, one sample order is welcome. However, we need to add sample fee to the price and will return it back after receiving your large order in future.

03 What's your delivery time?

After receiving payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.

04 What's your product warranty?

One year. During this period, we will send you the replacement for the broken part(not caused by wrong operation)

05 If I need different measurements or weight, could you offer OEM service?

Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.

06 What's your advantages?

With our two factories and more than 100 workers, we can offer you the following service:

A. Very competitive advantage products!
B. 7 days money refund in case of bad quality!
C. Small order welcome!
D. Alibaba trade assurance payment for your safety!
E. QC for each product before delivery
F. Nice after sale service.

07 How do you control your quality?

To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment. Our whole manufacturing processes are under a very serious and strict system in our company.
