• Model NO.：D22L-4
• Power Supply：Electric
• Technics：CNC
• Material：Carbon Fiber
• Type：Drone Spray
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：1860mm*1860mm*545mm
• Max Pesticide Load：20kg
• Aircraft Medicine Box Capacity：20L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：45kg
• Aircraft Weight：14kg
• Flight Attitude：Less Than 30m
• Flight Duration：13-33minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：BROUAV
• Origin：China
• HS Code：8802110010
• Production Capacity：10000 Unit

Basic Info.

Model NO. D22L-4 Power Supply Electric Technics CNC Material Carbon Fiber Type Drone Spray Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 1860mm*1860mm*545mm Max Pesticide Load 20kg Aircraft Medicine Box Capacity 20L Flight Radius Less Than 5000m Max Takeoff Weight 45kg Aircraft Weight 14kg Flight Attitude Less Than 30m Flight Duration 13-33minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark BROUAV Origin China HS Code 8802110010 Production Capacity 10000 Unit

Product Description

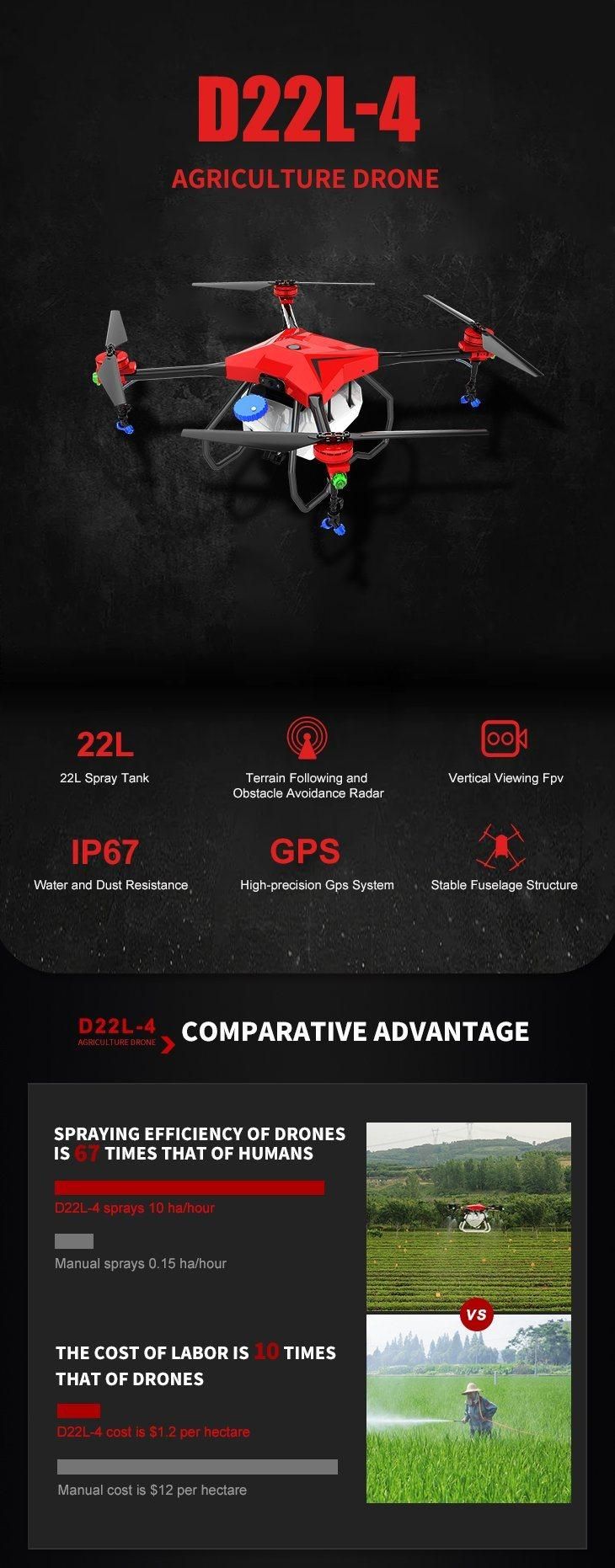

CE Certificate Four Rotor 20 Kg Foldable Carton Arm Drones Professional Agricultural UAV
- OEM  & ODM Service -Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.
4. Modular design of functional components, easy maintenance and upgrade.
5. Using intelligent plug-in battery.
6. Use quick-plug medicine barrel.
7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
8. Wear the case, optimize the whole machine, and hide the medicine circuit.
9. 7075 aviation aluminum (high grade) is used for the folding part.
10. Alternating spraying function, the spray head can be switched independently.
11. The arm can be quickly disassembled.

BROUAV adopts industrial grade hardware structure and sensors, available for more communication modes.

Model	D22L-4
Product Material	Aviation carbon fiber & aviation aluminum
Airframe Dimensions(Incl. propellers)	1900mm*1900mm*660mm
Airframe Dimensions(folded)	660mm*660mm*660mm
Transport Dimensions	750*750*750mm
Max Takeoff Weight	44KG
Aircraft Weight	15.75KG
Maximum Capacity(spraying system)	22L
Flight Altitude	≤20m
Flight Time (Unloaded)	15~25 minutes
Flight Time (Full Loaded)	5~13 minutes
Flight Speed	≤15m/s
Spray Width	4-6m
Spray Flow	3-5L/min
Nozzle Type	Imported high pressure anti-floating atomizing nozzle
Droplet Size	60~90μm
Flight Controller	Professional industrial version flight controller
Navigation Method	GPS/GNSS RTK
Operating Efficiency	≥9 (ha/hr)
Safe Takeoff and Landing Wind Speed	≤8 m/s
Motor speed	5000rpm
Battery Voltage	50.4V
Battery Capacity	22000mAh*1( 12S Intelligent Lithum Battery)
Battery Lifespan(Cycle)	≥500
Intelligent Charger	AC Input 100-240V
