• Model NO.：D30L-8
• Power Supply：Electric
• Technics：Assembly
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：730mm*830mm*1560mm
• Max Pesticide Load：25kg
• Aircraft Medicine Box Capacity：22L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：75kg
• Aircraft Weight：20kg
• Flight Attitude：Less Than 30m
• Flight Duration：13-40minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. D30L-8 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 730mm*830mm*1560mm Max Pesticide Load 25kg Aircraft Medicine Box Capacity 22L Flight Radius Less Than 5000m Max Takeoff Weight 75kg Aircraft Weight 20kg Flight Attitude Less Than 30m Flight Duration 13-40minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

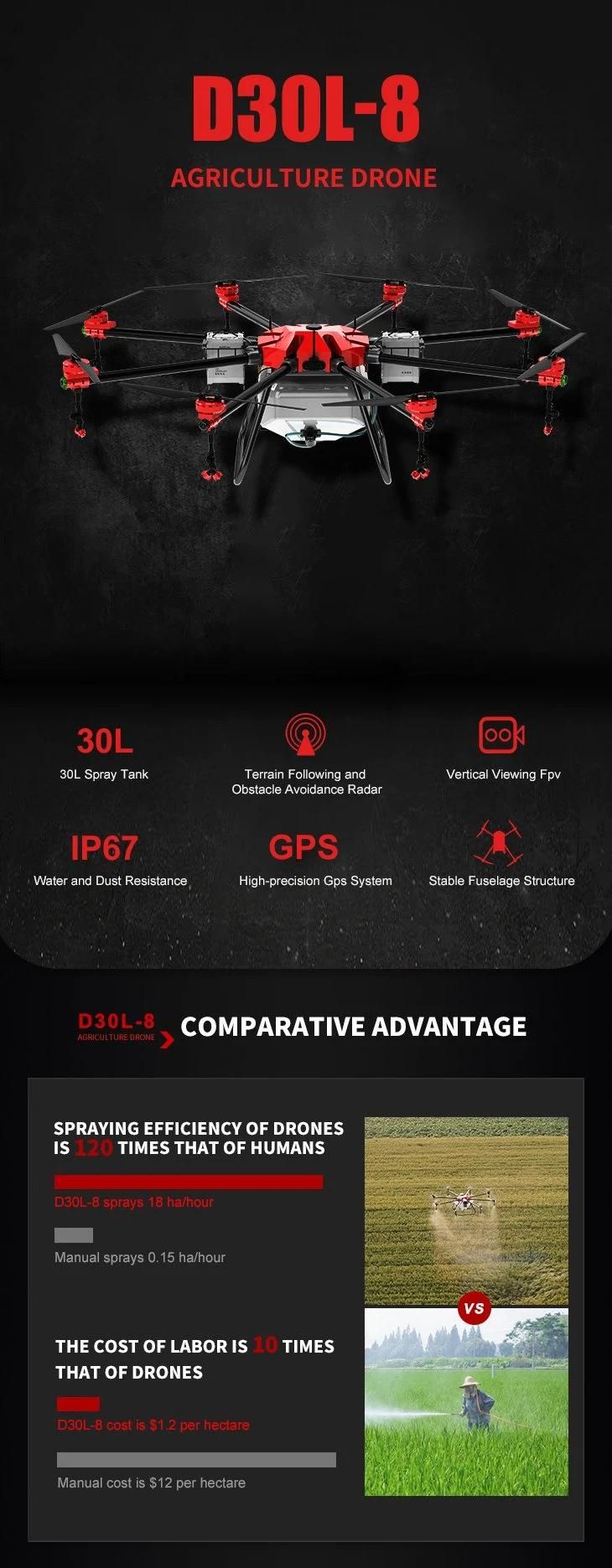

Carbon Fiber hybrid agriculture sprayer uav action drone with hd camera
- OEM  & ODM Service -The D30L-8 integrates a number of cutting-edge UNID technologies, including a Radar Sensing System that provides additional reliability during flight. The spraying system and flow sensor ensure accurate operations. When used with  the Intelligent Operation Planning System and the UNID Agriculture Management Platform,a user can plan operations, manage flights in real-time, and closely monitor aircraft operating
status. The D30L-8 is a high performance aircraft capable of offering comprehensive solutions for agricultural care.


Model	D30L-8
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	3090mm*3090mm*910mm
Product folding size	900mm*730mm*1760mm
Packaging size	1730mm*1200mm*790mm
Maximum takeoff weight	75KG
Aircraft weight	20-21KG
Pesticide Barrel	30L
Flight altitude	≤30 meters
Fly time(unloaded)	20~2530 minutes
Fly time(loaded)	10~13minutes when fully loaded
Flight speed	1-10 m / sec
Structure lift span	≥10 years
Spray width	6-12 meters
Hovering in the air	Hovering in any direction
Spray flow	8-10L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥10hectares / hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charer	AC Input 100-240V
Lithium-polymer battery	20000mAh*2
