• Model NO.：U16L-4
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：1070mm*1070mm*370mm
• Max Pesticide Load：18kg
• Aircraft Medicine Box Capacity：16L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：34kg
• Aircraft Weight：11kg
• Flight Attitude：Less Than 30m
• Flight Duration：20-25minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. U16L-4 Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 1070mm*1070mm*370mm Max Pesticide Load 18kg Aircraft Medicine Box Capacity 16L Flight Radius Less Than 5000m Max Takeoff Weight 34kg Aircraft Weight 11kg Flight Attitude Less Than 30m Flight Duration 20-25minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

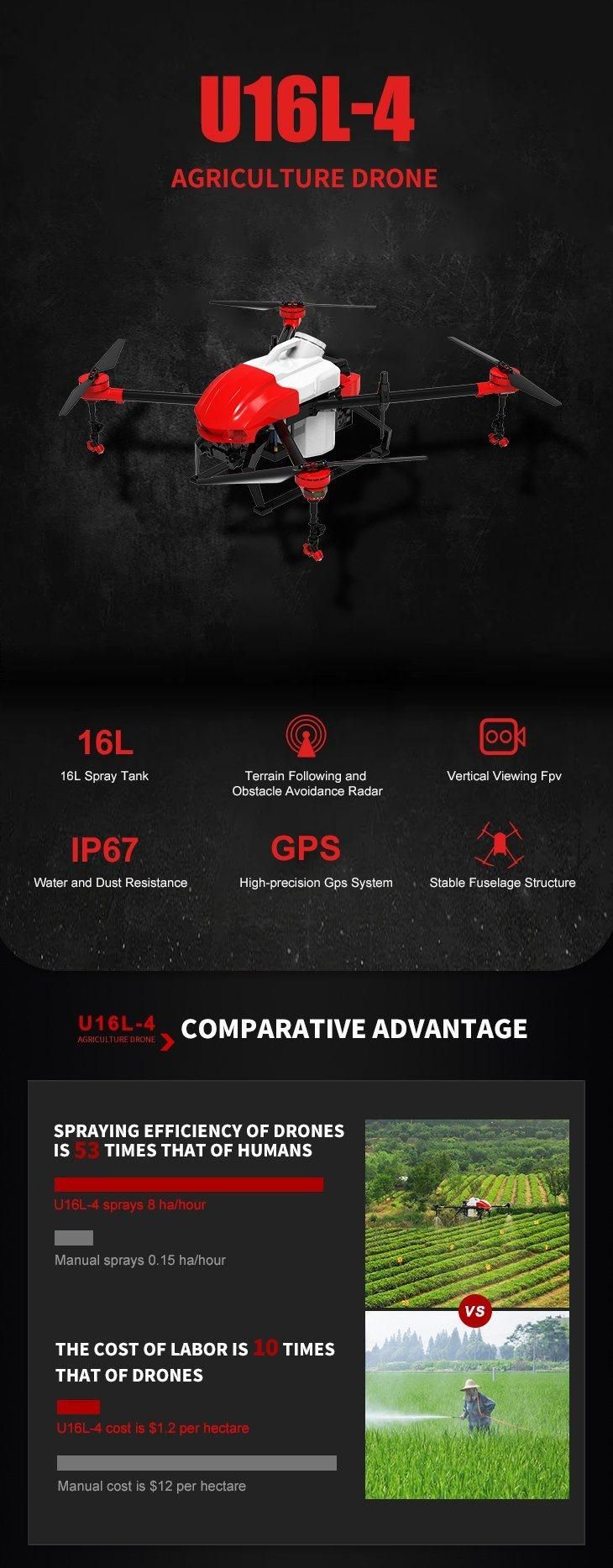

China Easy Operation Pesticide Agriculture Spraying Drone Payload Sprayer Drone for Farming Protection
- OEM  & ODM Service - Supported by its outstanding flight performance, the U16L-4 spray tank can carry up to 16 L, and the spray width has increased to 8 m. The spraying system has 4 delivery pumps and 8 sprinklers with a maximum spray rate of 8 L/min. The U16L-4 can spray 6 hectares per hour. The spraying system also has an all-new electromagnetic flow meter, providing higher precision and stability than conventional flow meters.

BROUAV adopts industrial grade hardware structure and sensors, available for more communication modes.

Model	U16L-4
Product Material	Aviation carbon fiber & aviation aluminum
Airframe Dimensions(Incl. propellers)	1990mm*1965mm*500mm
Airframe Dimensions(folded)	840mm*480mm*500mm
Transport Dimensions	1000*550*750mm
Max Takeoff Weight	36KG
Aircraft Weight	15KG
Maximum Capacity(spraying system)	16L
Flight Altitude	≤20 meters
Flight Time (Unloaded)	15~25 minutes
Flight Time (Full Loaded)	5~13 minutes
Flight Speed	≤15 m/s
Airframe Lifespan	≥10 years
Spray Width	4-8 meters
Spray Flow	3-10 L/min ( 5L double water pump)
Nozzle Type	Imported high pressure anti-floating atomizing nozzle
Droplet Size	60~90μm
Flight Controller	Professional industrial version flight controller
Navigation Method	GPS/GNSS RTK
Operating Efficiency	≥7(ha/hr)
Safe Takeoff and Landing Wind Speed	≤8 m/s
Motor Speed	5000rpm
Battery Weight	4.8KG
Battery Voltage	50.4V
Battery Capacity	16000mAh*1( 12S Intelligent Lithum Battery)
Battery Lifespan(Cycle)	≥500
Charger	AC Input 100-240V
