China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line

Chongqing Qiaoxing Machinery & Equipment Company
  • Type：Pellet Mill
  • Processing Object：Mixed Feed
  • Processing Technics：Crushing-before-Mixing
  • Screen Mesh：With Screen Mesh
  • Grinding Equipment Type：Feed Hammer Mill
  • Pellet Mill Type：Ring Die Pelleter

Base Info

  • Model NO.：5t,h
  • Bulking Machine Type：Sigle Screw Bulking Machine
  • Expanding Method：Wet Expansion
  • Condition：New
  • Applicable Materials Shape：Powder
  • Name：Pellet Mill Line
  • Application：Poultry, Chicken, Cattle, Livestock etc
  • Power：37-160kw
  • Output：1-20t,H
  • Ring Die Diameter：320-768mm
  • Pellets Size：1-10mm
  • Rollers：2PCS
  • Delivery Time：Within 30 Days
  • Guarantty Time：12 Months
  • Charactor：Save Energy
  • Transport Package：Wooden Case (Plywood)
  • Specification：CE certificate
  • Trademark：Astar
  • Origin：Chongqing, China
  • HS Code：8436100000
  • Production Capacity：10 Set,Month

Description

ModelSZLH320SZLH350SZLH400SZLH420SZLH508Capacity2-5T/H1.5-8T/H2-10T/H3-12T/H4-20T/HMain Motor Power37KW55KW75/90KW110KW132/160KWScrew Feeder Power0.55KW0.75KW0.75KW1.5KW1.5KWConditioner Power2.2KW2.2KW   2.2KW5.5KW7.5KWRing die inner diameter320mm350mm400mm420mm508mmRing die rotational speed305PRM336PRM307PRM287PRM287PRMRoller outer diameter140mm   165mm190mm206mm /Dimension2300*1000*2100 mm3200*1100*1700 mm3200*1300*1900 mm3500*1300*2800 mm3500*1500*2900mmPellets  diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate:    ≥95%
Pellets stability in water:    ≥20Min
Noise:    ≤86dB(A)    ≤90dB(A)
Roller working temperature:    ≤85ºC
Steam working pressure:    0.1-0.4Mpa
Steam temperature:    130-150ºC

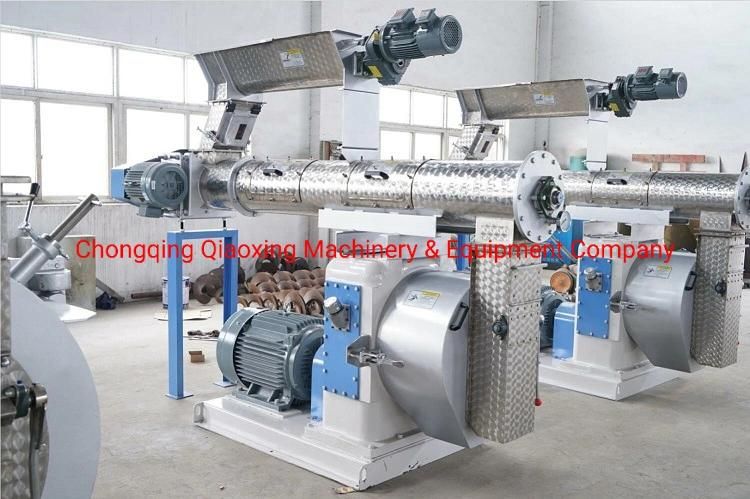

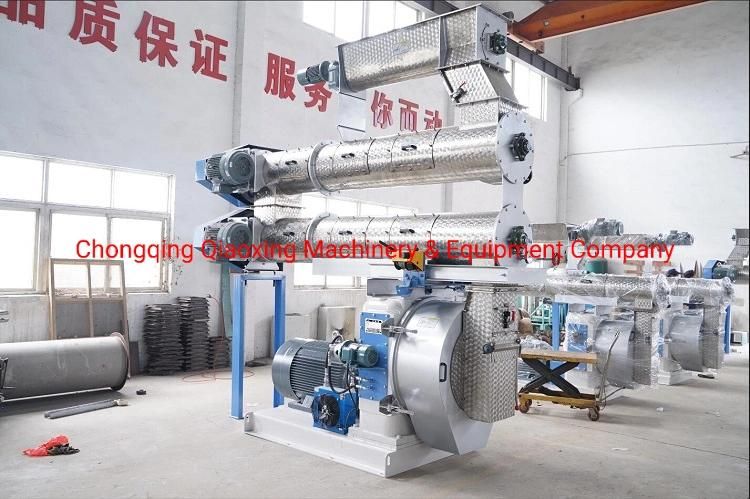

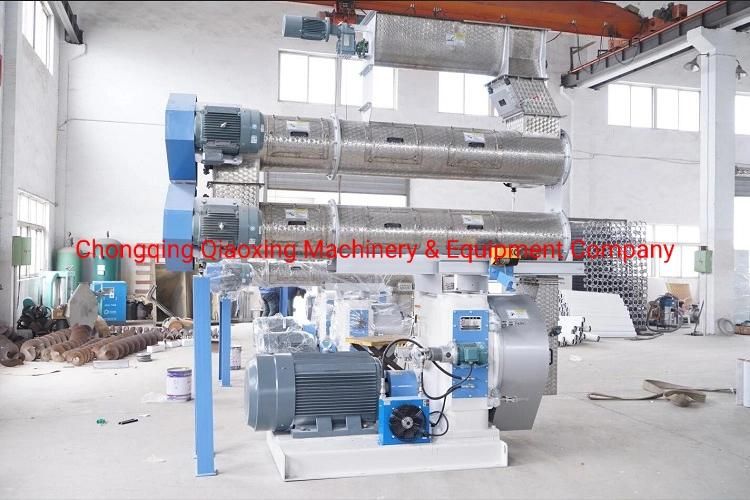

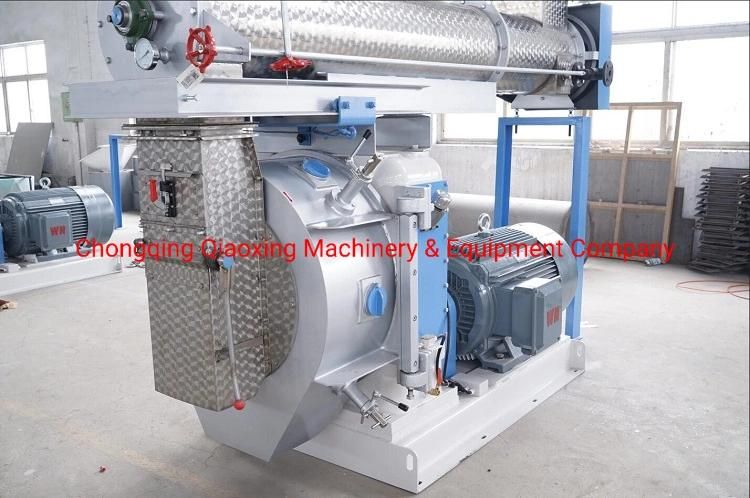

3. China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line  More Photos:

China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line
China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line
China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line
China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line

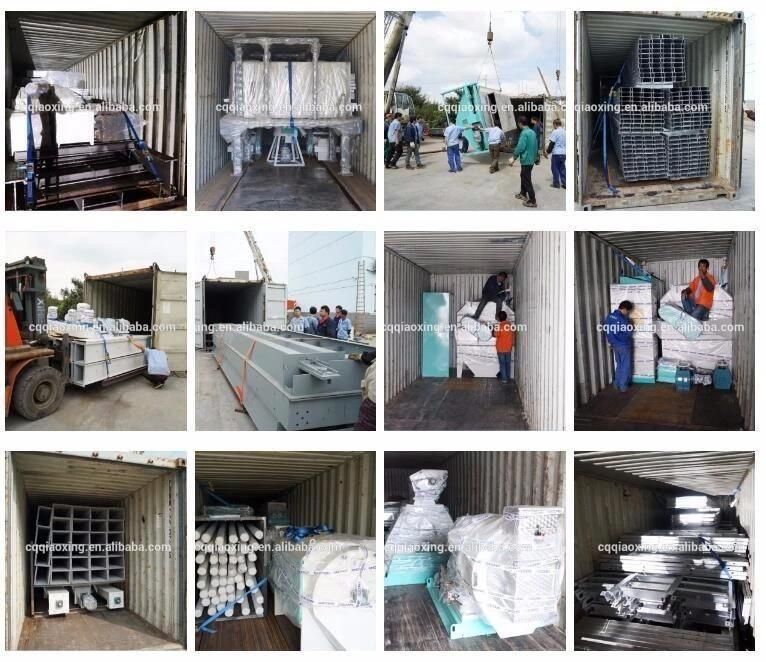

4. China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line  Delivery Photos :
China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line

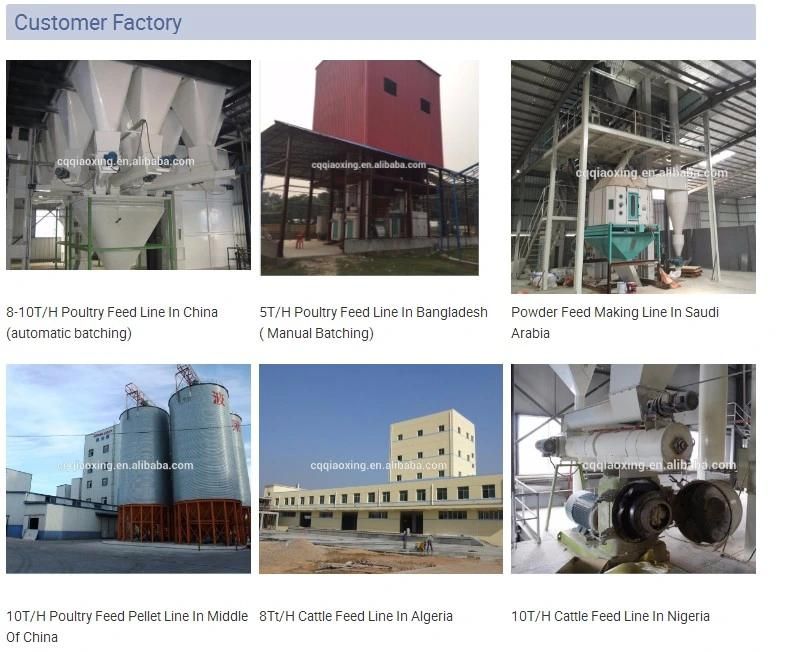

5. China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line Customer Factory :

China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line

China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line

Any more information you need China Made Poultry Feed Pellet Making Machine, Chicken Feed Pellet Mill, Animal Feed Pelletizing Machine, Animal Feed Production Line, Pellet Mill Line , please feel free to contact with us.
