Agricultural Machinery

Broilers Automatic Chicken Feeding Equipment

Qingdao Xinguangzheng Husbandry Co., Ltd.
  • Type:Layer Cage
  • Usage:Raise
  • Application:Chicken
  • Power Source:Electric
  • Heating and Ventilation Equipment Type:Air Duct
  • Epidemic Prevention Equipment:Mobile Vaccination Car

Base Info

  • Model NO.:xgz-zp-165
  • Computerized:Computerized
  • Certification:ISO9001:2008, CE
  • Condition:New
  • Item1:Auto Feed
  • Item2:Auto Drink
  • Item3:Auto Ventilation
  • Item4:Cooling Pad
  • Item5:Lighting System
  • Item6:Fog Spray System
  • Item7:Auto Egg Collection
  • Item8:Auto Manure Cleaning
  • Transport Package:Standard Containers
  • Specification:40 feet container
  • Trademark:XGZ
  • Origin:China
  • HS Code:84369200
  • Production Capacity:50000sets Per Month

Description

Manpower hopper or silo600/800kg hopper, 5/8/10/15/18/20mt siloMotorTaiwan brand
Power: 0.75Kw/1.1Kw
Voltage: 380V, three-phase/220V, single-phase/othersMain feed lineDiameter of pipe: 75mm
Material: PVCAugerOrigin: South Africa
Feeding ability: 1400Kg/h (maximum)SensorOrigin: Germany
Different specifications of silos are alternative to choose according to the daily consumption.
Material of silo consist of galvanzied sheet and glass fiber reinforced plastic.
*If you don't use silo, you can use manpower hopper. Usually, if you just build one or two chicken house ,we suggest you use hopper instead of silo.

2. Automatic pan feeding line systemV-shape bin (with hopper)Bin volume: 100L
Material: hot-dip galvanized sheetMotorPower: 0.75Kw/1.1Kw/1.5Kw
Voltage: 380V, three-phase/220V, single-phase/othersDelivery pipeDiameter of pipe: 45mm
Material: hot-dip galvanized steelAugerOrigin: South Africa
Feeding ability: 450Kg/h (maximum)Feed panPan distance: 4 pans/3m, 3 pans/3m
Raising ability: 45-55 birds/pc
Material: pure engineering plasticSensorOrigin: GermanySuspension &lifting deviceWe can adjust the feeding line by winch.Anti-perching deviceIt prevents birds staying on the feeding line for too long.
*There is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery.

The motor will start working and deliver feed when the feed pan (with sensor)
lacks feed and will stop working when the feed pan (with sensor) is full of feed.

3. Automatic nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.Waterline front systemfilter
pressure regulating valve
water meter
medicator(doser)Water pipe with nipple drinker and drip cupNipple distance: 16 nipples/4m, 12 nipples/3m
Raising ability: 8-12 birds/pc
Nipple material: inside valve is made of stainless
steel, shell is made of plastic
Drip cup material: pure engineering plasticSuspension lifting deviceWe can adjust the drinking line by winch.Waterline end modulewater display tube, etc

4. Automatic ventilation fan systemSpecifications50'' box fan36'' box fanFlow amount (m3/h)4100020800Size (L*W*H) (mm)1380*1380*4501000*1000*450Noise level≤65DB≤64DBPower1.1Kw0.4KwVoltage380V/220V/others380V/220V/othersCurrent2.8A1.6AWeight88Kg66Kg
*The system controls climate condition, can provide fresh air, proper humidity and temperature for birds, ensuring your chickens provide maximum production.

*The system including ventilation fan (box fan or butterfly cone fan) and air inlets.

*If your chicken farm is open, there is no need to use 36'' fan and air inlets, however, you
might need curtain system.

5.Cooling pad system:
Thickness:100mm; 150mm
Width: 600mm
Height(with frame):1660mm;1960mm;2160mm
Frame: Galvanized sheet/Aluminium alloy
*When the air goes through the pad, the heat will be took down by the evaporation of water, so
the air will be cooled before going into the chicken farm.

6. Environment control system
*The system saves labor and resources under the condition of assuring the optimum growth environment of chickens.

*It is imported from Israel can set an optimum working mode according to the local climate
and raising environment.

7. Spraying and disinfecting system
*It's effective tool for cooling, damping, dedusting and disinfecting the house.(the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes)

8.Heating system(heater):
*Proper temperature is critical to chickens, especially day-old chicks, we have different kinds,
they fire coal, diesel, gas or use electricity, 4 kinds for your option.


9.Curtain system:
*In some tropical zone, the farmers are inclined to use curtain instead of real walls(open farm),
they will use big fan accordingly.
*Our curtain have two kinds for your choice, manual operated one and motorized one.

10.Plastic floor covering system:
*Plastic floor covering system is the best cooperation of auto manure cleaning system.
*Our floor is 100% raw material can guarantee a long using life.

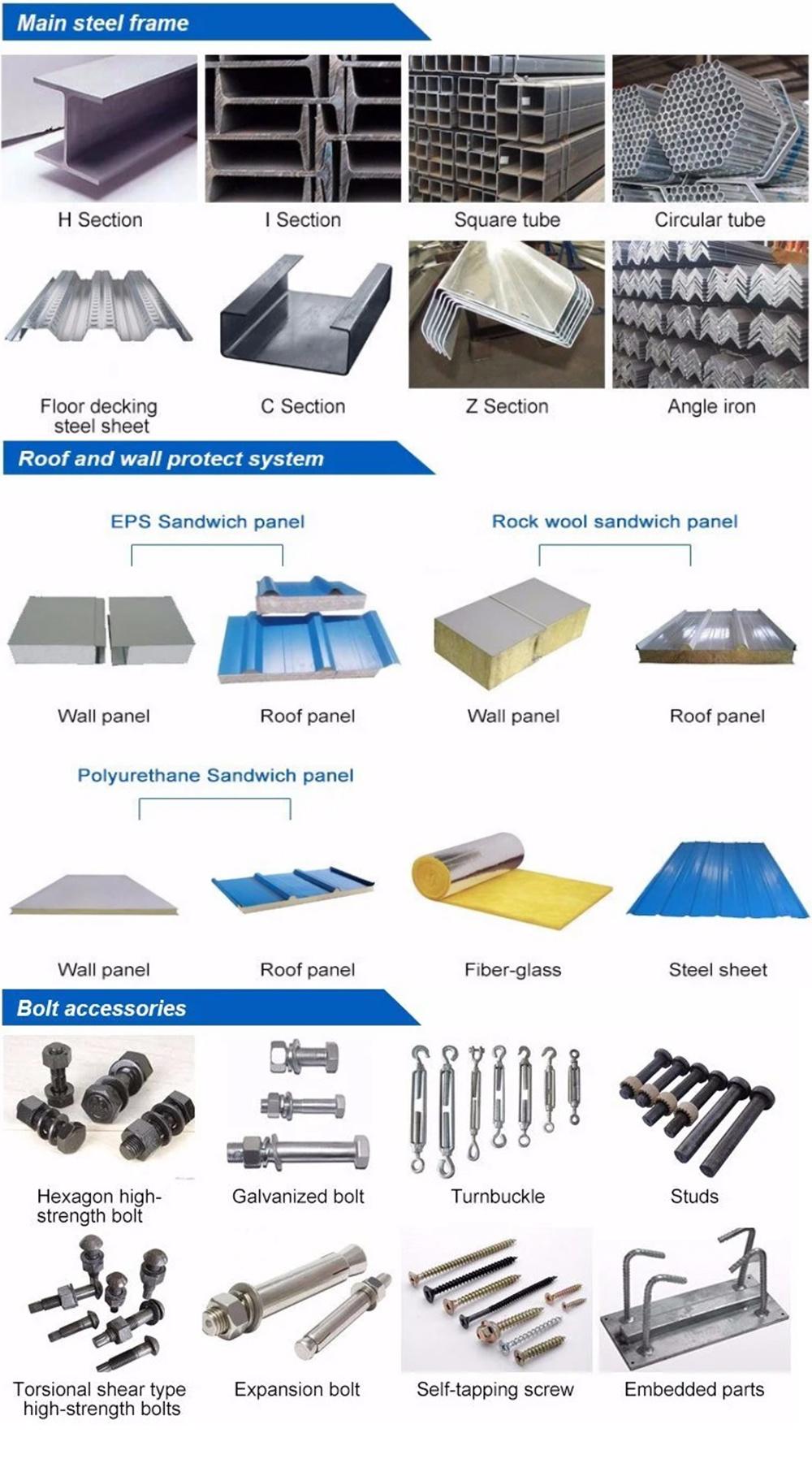

11.Steel Structure Chicken House:
  30 years' lifespan steel structure poultry house.Painted and galvanized for choosing.

Broilers Automatic Chicken Feeding Equipment
Other Product
chicken cage system
Broilers Automatic Chicken Feeding Equipment
Broilers Automatic Chicken Feeding Equipment

Broilers Automatic Chicken Feeding EquipmentBroilers Automatic Chicken Feeding Equipment
Broilers Automatic Chicken Feeding EquipmentBroilers Automatic Chicken Feeding Equipment

Please let know if you have any need for our product.
--
T & B Regards,

Cherry Chen
Project Manager
Qingdao Xinguangzheng Husbandry Co., Ltd.
