• Portable Harvester Type：Side Hanging Type
• Certification：ISO9001:2008, CE
• Color：Customized
• Condition：New
• Application Field：Agriculture, Livestock, Aquaculture
• Warranty：Warranty 12 Months
• Trademark：Relong
• Origin：China

Basic Info.

Portable Harvester Type Side Hanging Type Certification ISO9001:2008, CE Color Customized Condition New Application Field Agriculture, Livestock, Aquaculture Warranty Warranty 12 Months Trademark Relong Origin China

Product Description

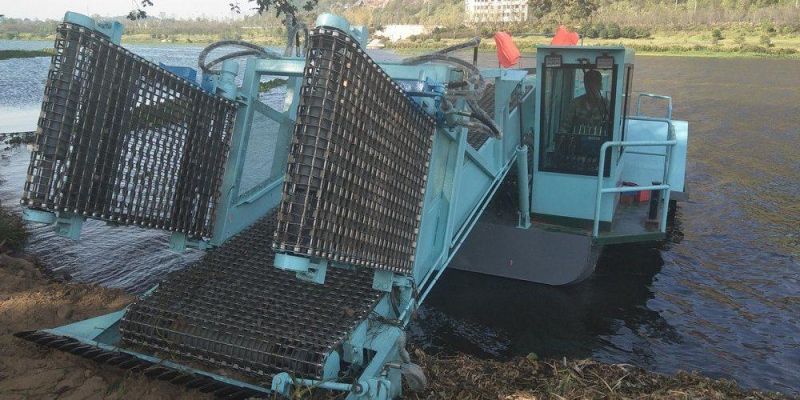

                         High Quality Hydraulic Water Hyacinth Harvesting Boat/Trash Skimmer Aquatic Weed Harvester

1.Production description:
*The aquatic weed harvesters are hydraulically driven with reciprocating knives mounted on the harvesting head to cut the aquatic weed.
* The weed is then transferred from the front conveyor through middle conveyor to the storage hold,with the water filtrated during the tranportating.
* The storage conveyors are gradually filled up with tightly packed plants and this harvested weed is then transferred to the shoreline or into a dump truck via a shore conveyor.

 2.Features:
1) Weed harvester is mainly used to salvage the water hyacinth and alligator weed in rivers and lakes, and it can also collect floating garbages in the water surface.
2) It has beautiful appearance. Its main hydraulic motor, proportional valves and hydraulic blocks are all supplied by famous brand in China, which are durable and standard.
3) The carrying capacity of this vessel can be six tons, which shortens the unloading times and fuel consump-tion. IN the river with much water hyacinth, it only needs eight minutes to full load the vessel. After full loaded, the vessel will unload the salvaged material on the river bank or trucks by rear cabin lift system.
4) There is a cooling pipe always in the water, which can reduce the oil temperature very fast.

3.Technical Parameters:

Total Length	13.8m	Total Width	4.5 m
Total Height	2.8 m	Vessel Body Length	7.15m
Molded Breadth	4.5m	Molded Depth	0.75m
Collecting Width	2m	Collecting Depth	1.0m
Draft(Light Load/Full Load)	1m	Weight	12.8
Carrying Capacity	2t	Engine Power	50kw
Working Navigational Speed	3km/h	Transfer Navigational Speed	6km/h
Endurance Ability	24h	Drive Mode	Hydraulic Paddle wheel

 The parameters are just for reference.We will provide the machine according to your requirement.

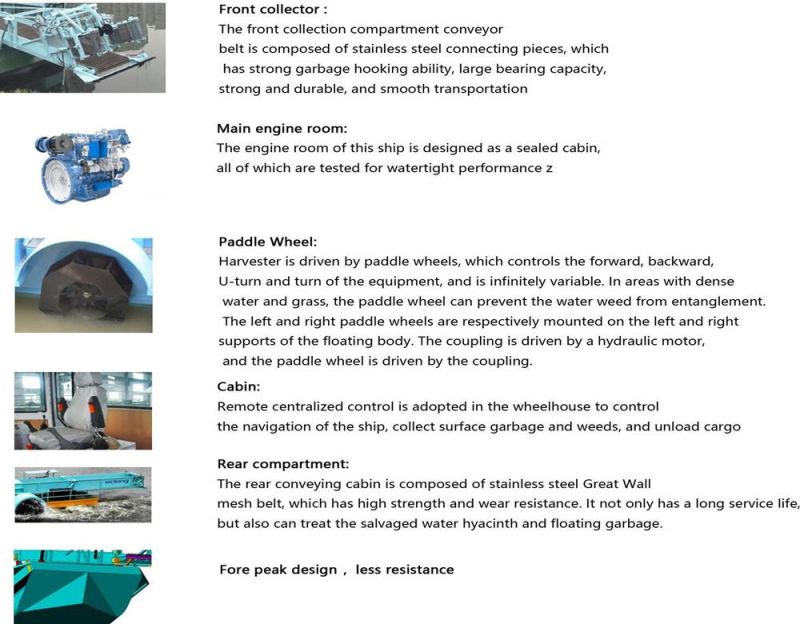

4.Detailed images:



5.Application scenario:
Lake Weed Harvester Boats offer an environmentally sound method of controlling excessive aquatic plant growth and nuisance vegetation in waterways of all sizes. These heavy duty work boats are highly efficient in the management of submerged, emergent and free floating aquatic vegetation.

6.Effect comparison:

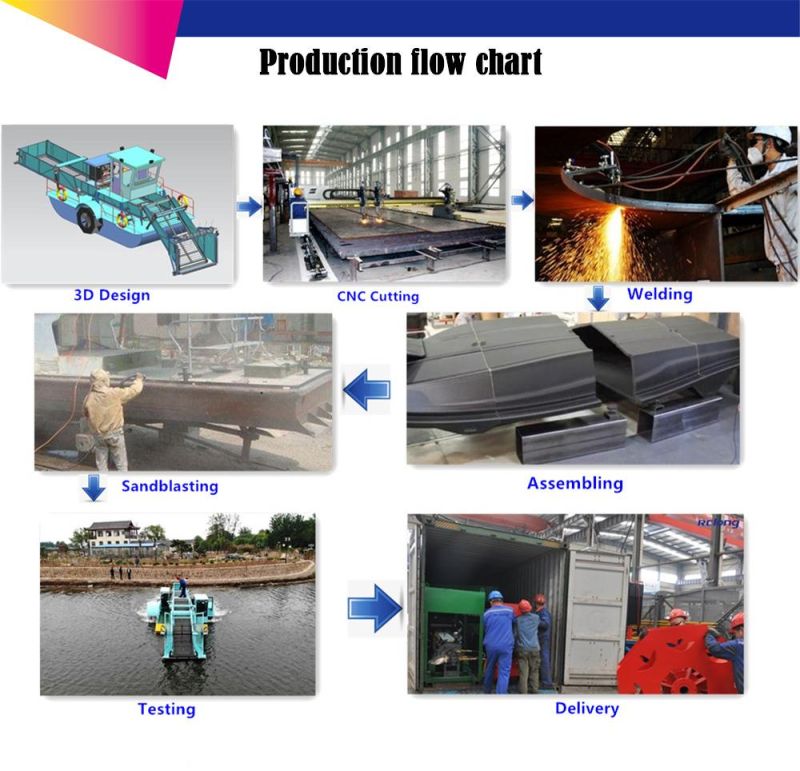

7.Product Process:

 8.Company profile :

Relong Environment Technology Co., Ltd.  is located in Qingdao City, Shandong Province. It is a company dedicated to intelligent robots, ship design, water transportation equipment, marine water quality and ecological environment testing, salvage services; industrial automatic control system devices, radar and supporting equipment, communication equipment, which is a high-tech enterprise integrating sales and artificial intelligence software development, including consulting, design, production, installation, and operation management.

Relong has built cooperation with colleges and scientific research institutes like  The Ocean University of China, Jiangsu Ship Design Institute and Shandong University. And Relong has numerous research and development platforms including Provincial-Level Industrial Design Center, Provincial-Level "Enterprise & Technology" Development Center, Municipal Engineering Research Center And Engineering Laboratory. Relong has a number of independent intellectual property rights, including 33 National Patents, 2 Scientific And Technological Achievements that have reached the international grade and 1 reached China advanced level. Relong has won several first prices in Provincial Technical Innovation Outstanding Achievements And Technology Innovation Outstanding New Product, Technology Progress Award, etc.


9.Certificate:


10.Happy visiting time with customers:

11.Related products:

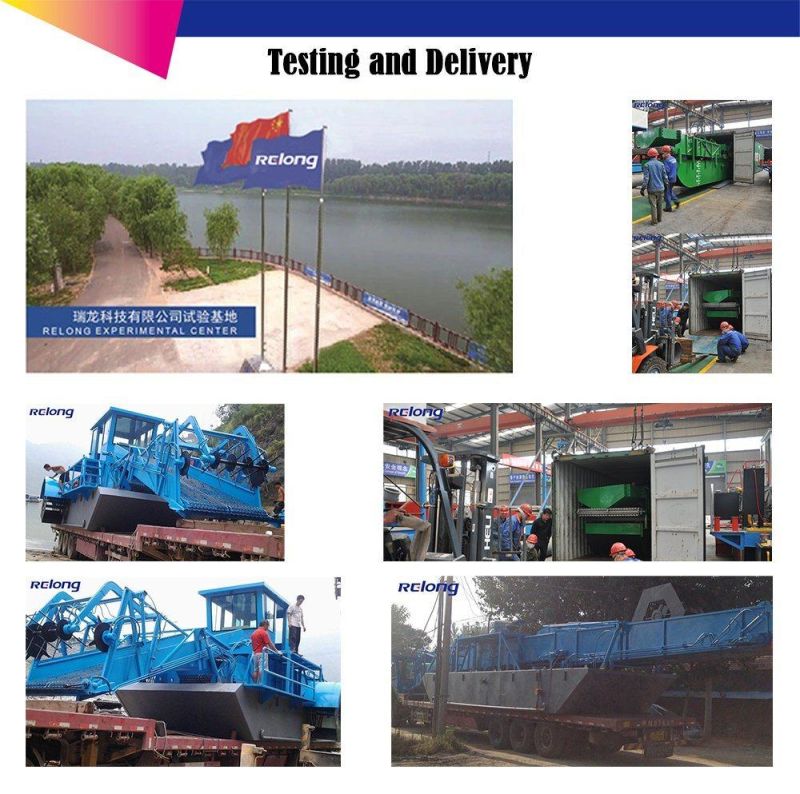

12.Delivery:

13.FAQ:

How long is the delivery time of your equipment ?
--Within 15-20 days after receiving the deposit.
2.How to install the machine ?
--If need seller's installation help,the seller will send one (1) technologist to Your work place to conduct installation and
train 3-5 workers to operate the machine, buyer shall arrange at least 3-5 workers to work with the engineers.
3.How long is the equipment warranty period ?
-- We provide 12-months warranty for the quality of the diesel engine/generator, motor water pump (impeller is 6months), storage battery, but not responsible for rust.

4.How often should we harvest weeds in our lake?
For optimal weed control, 2 Harvestings a year approximately 6 weeks apart.
5.When should I have my lake cut for best results?
When water temperature is around 70 Degrees and 2nd cutting in 6 weeks. Shallow lakes will be earlier then deeper lakes.
