16L Agriculture Tool Hand Knapsack Pressure Sprayer (YS-16-1)
LIAOCHENG YONGSUN MACHINERY CO., LTD.- Installation：Internal Threaded Connection
- Liquid Contained：Medicine, Disinfector
- Spraying Shape：Sector
- Volume：16L
- Power Supply：Manual
- Technics：Injection Molding
Base Info
- Model NO.：YS-16-1
- Material：PP
- Type：Knapsack
- Colour：Yellow, Blue, Red etc for Choice
- Transport Package：Export Carton
- Trademark：Easyto
- Origin：China
- HS Code：8424
- Production Capacity：80000PCS,Month
Description
| Model | YS-16-1 |
| Tank Capacity(L) | 16 |
| Air Chamber Capacity(L) | 0.9 |
| Working Pressure(Mpa) | 0.2-0.4 |
| Max. Pressure(Mpa) | 1.0 |
| Net Weight (kg) | 3.2 |
| Packing Measurement(cm) | 38x18.5x52 |

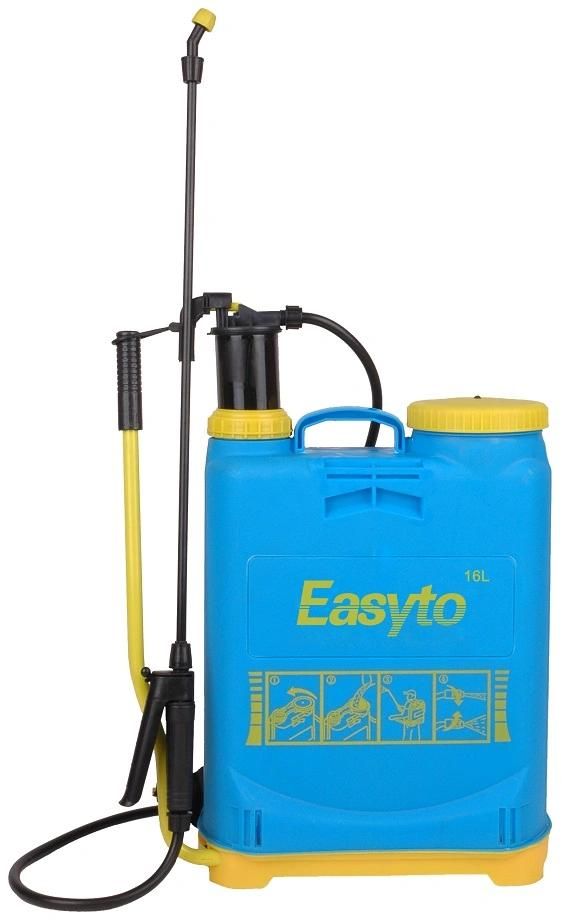

This knapsack hand operated pressure sprayer is widely used in agricultural and garden for spraying insecticides
and herbicides and also used in household sterilization and in public environment protection.
No leakage, high efficiency, chemical saving, precise spraying!
Detailed Features:
1) Main material: high quality plastic PP.
2) The tank is ergonomically designed according to human body, so the operator will not feel heavy even after long time working.
With wide tank opening for quick filling. With water level indication on the tank. With stirrer in the tank to stir the liquid.
3) Scientifically designed large volume air chamber, makes the spraying labor saving, high efficiency and quick pressure arising.
4) Fiberglass spray lance, chemical resistant.

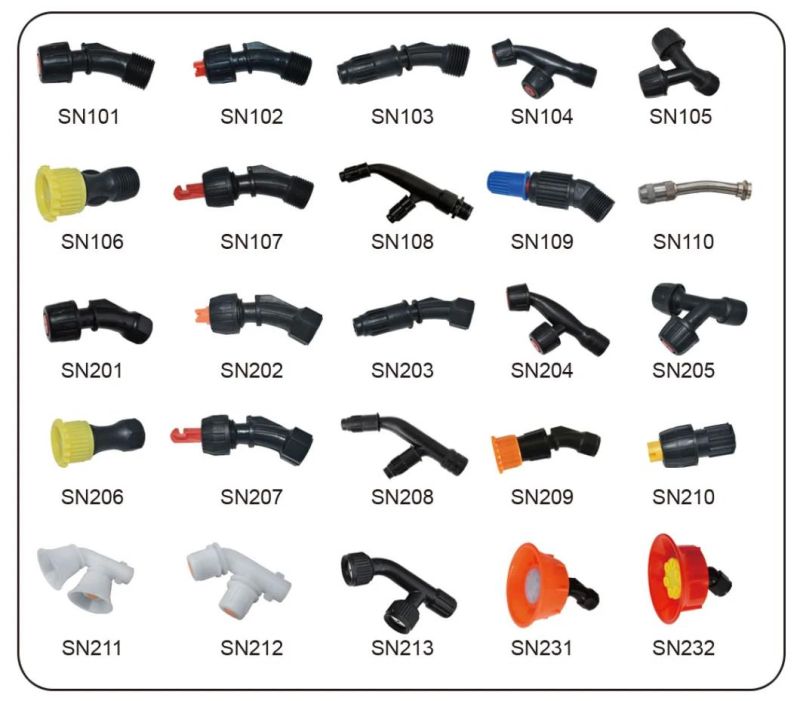

5) Plastic cone nozzle and fan nozzle are supplied for spraying both pesticides and herbicides.
6) Rocker bar can be operated on left or right side.
7) Rocker bar fixer can fix the rocker bar and spray lance for easy carrying and storage.

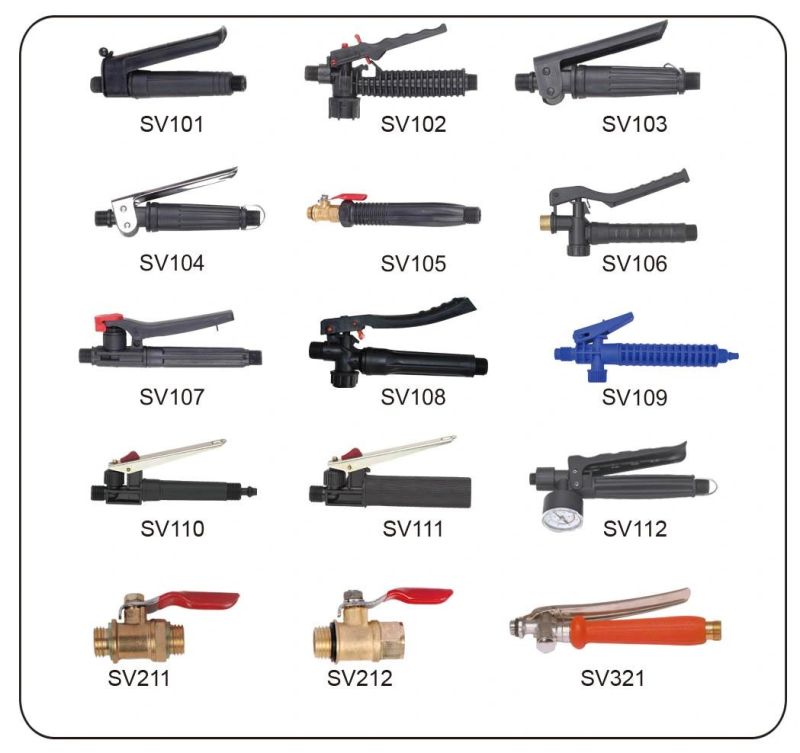

8) On/off trigger valve with lock catch for continuous spraying.
9) Reinforced PVC spray hose for long life use.
10) With comfortable and adjustable carrying straps.
11) Each unit supplied with a parts kit (piston ring, O-ring, gasket, etc.)
12) Tank color and printing can be customized. OEM acceptable.
