• Model NO.：1NG-160
• Drive Type：Gear Drive
• Arbor Configuration：Vertical Shaft
• Certification：CE
• Color：Green
• Colour：Options
• Transport Package：Steel Frame Package
• Specification：160
• Trademark：weituo
• Origin：China
• HS Code：8490432000
• Production Capacity：5000 Pieces,Month

Basic Info.

Model NO. 1NG-160 Drive Type Gear Drive Arbor Configuration Vertical Shaft Certification CE Color Green Colour Options Transport Package Steel Frame Package Specification 160 Trademark weituo Origin China HS Code 8490432000 Production Capacity 5000 Pieces/Month

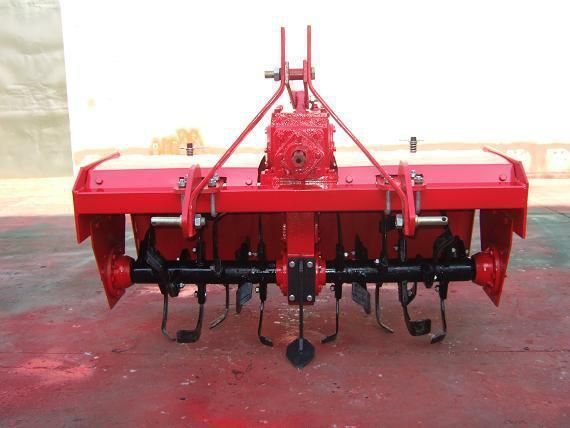

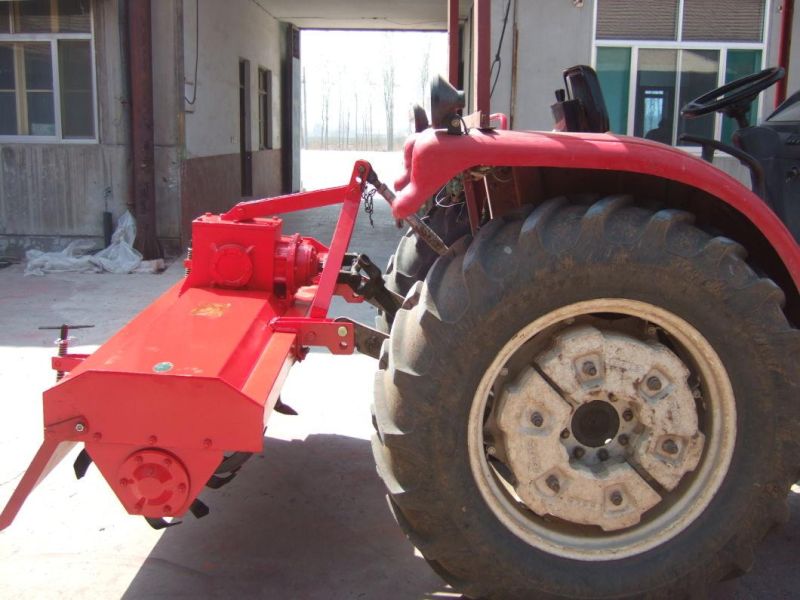

Product Description

Product Characteristics:

1)  The wheel tracks on the soil can't be seen after it worked

2)  Good quality and function

3)  Suited to dry land and paddy field

4)  The features of saving time, labor and money tetc.

5)  Lid can be opened for easy maintenance

Product Models and Parameters:

Model	Matched   power(hp)	Working   width(cm)	Working   depth(cm)	No  of   knives	Type  of   knife	Total  weight (kg)	O.D.mm  (L*W*H)
1GQN/GN-90	15-20	90	10 to 18	20	IT-225	175	900*700*700
1GQN/GN-110	18-22	110	10 to 18	24	IT-225	180	1050*700*700
1GQN/GN-125	20-25	125	10 to 18	28	IT-225	195	1360*700*700
1GQN/GN-140	25-30	140	10 to 18	32	IT-225	200	1490*700*700
1GQN/GN-150	25-30	150	10 to 18	36	IT-225	210	1590*800*800
1GQN/GN-160	30-50	160	10 to 18	40	IT-225	230	1690*800*800
1GQN/GN-170	30-50	170	10 to 18	44	IT-225	230	1650*800*800
1GQN/GN-180	50-60	180	12 to 20	52	IT-245	350	2010*800*800
1GQN/GN-200	55-75	200	12 to 20	60	IT-245	380	2100*800*800
1GQN/GN-220	60-80	220	12 to 20	50	IT-245	400	2303*800*800
1GQN/GN-230	60-80	230	12 to 20	50	IT-245	420	2410*800*800
1GQN/GN-250	75-80	250	12 to 20	72	IT-245	450	2600*800*800
1GQN/GN-280	80-160	280	12 to 20	72	IT-245	490	2950*800*800
1GQN/GN-300	90-160	300	12 to 20	80	IT-245	600	3150*900*900
1GQN/GN-350	125-180	350	12 to 20	88	IT-245	890	3650*950*950
