• Computerized：Computerized
• Certification：QS, ISO9001:2008, CE, SGS
• Condition：New
• Name：Cage
• Item1：Auto Feed
• Item2：Auto Drink
• Item3：Auto Ventilation
• Item4：Cooling Pad
• Item5：Lighting System
• Item6：Fog Spray System
• Item7：Auto Egg Collection
• Item8：Auto Manure Cleaning
• Transport Package：Steel Pallet
• Specification：40 feet container
• Trademark：XGZ
• Origin：China
• HS Code：9406900090
• Production Capacity：3000ton,Month

Basic Info.

Computerized Computerized Certification QS, ISO9001:2008, CE, SGS Condition New Name Cage Item1 Auto Feed Item2 Auto Drink Item3 Auto Ventilation Item4 Cooling Pad Item5 Lighting System Item6 Fog Spray System Item7 Auto Egg Collection Item8 Auto Manure Cleaning Transport Package Steel Pallet Specification 40 feet container Trademark XGZ Origin China HS Code 9406900090 Production Capacity 3000ton/Month

Product Description

Good Price Steel Structure Chicken House
Steel structure chicken house can be used for broiler, layer, breeding, etc. for overall world. It is widely used in most of the farm with quick install, good price, saving labor and one-step by the same company for designing, manufacturing and installing.
At the same time, the steel house can be used for feed other poultry, such as sheep, rabbit, pigeon, quail, pig, etc..
GROUND FEEDING BROILER:

1. The house main frame is hot-galvanized, purlin is galvanized; roof and wall are galvanized, then coated.
2. All equipment are hot-galvanized.
3. Plastic floor makes the inside house more clear; Manure clearing down the floor will also helpful.
4. Automatic equipment will make the high survival and less cost.

The width of the house is usually 12-16m, which is more suitable for feeding and drinking line arrangement.





LAYER INTRODUCTION OF PRODUCT:

1. The full set of equipment using hot-dip galvanized material, corrosion-resistant, which ensures the service life of 15-20 years.

   The house main frame is also galvanized, purlin is galvanized. Roof and wall sheet are galvanized sheet then coat on surface. Its lifetime is about 15-20 years.
2. Centralized management and automated control. Achieve automatic feeding,drinking,manure cleaning,egg collecting and environment control,can help to improve working efficiency and save labor cost.
3.High-density raising,saves land and investment.
4.Suitable for closed chicken house. Automatic control of ventilation and temperature can meet the requirement of the birds.

For H type equipment, in a house of 100m*13m, if 4 tier cages are installed, 39 units of cage per line, the height of side wall should be 4m, and total birds quantity is 37400; if 5 tier cages are installed, 39 units of cage per line, the height of side wall should be 4.5m, and total birds quantity is 46800; if 6 tier cages are installed, 39 units of cage per line, the height of side wall should be 5.0m, and total birds quantity is 56160.
H type cages are more modern and popular nowadays as it can feed more chicken and equipment more advanced. But we also can provide A type if client do not need much layer and considering local climate & power.

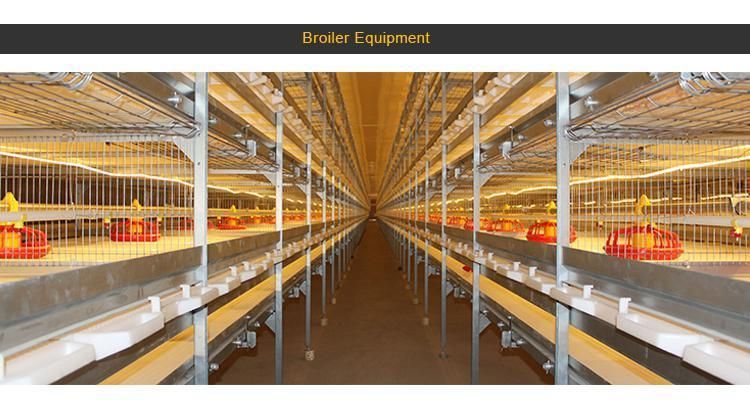

CAGES BROILER INTRODUCTION OF PRODUCT:

The automatic bird-harvesting H type broiler raising cage is the most advanced broiler raising equipment. It can realize not only feeding,drinking,manure removing automatically,but also broiler-harvesting automatically.It is suitable for large-scale broiler farm.

In a house of 97m*20m, if 3 tier cages are installed, 30 units of cage per line, the height of side wall should be 4m, and total birds quantity is 59400; if 4 tier cages are installed, 30 units of cage per line, the height of side wall should be 4.5m, and total birds quantity is 79200.

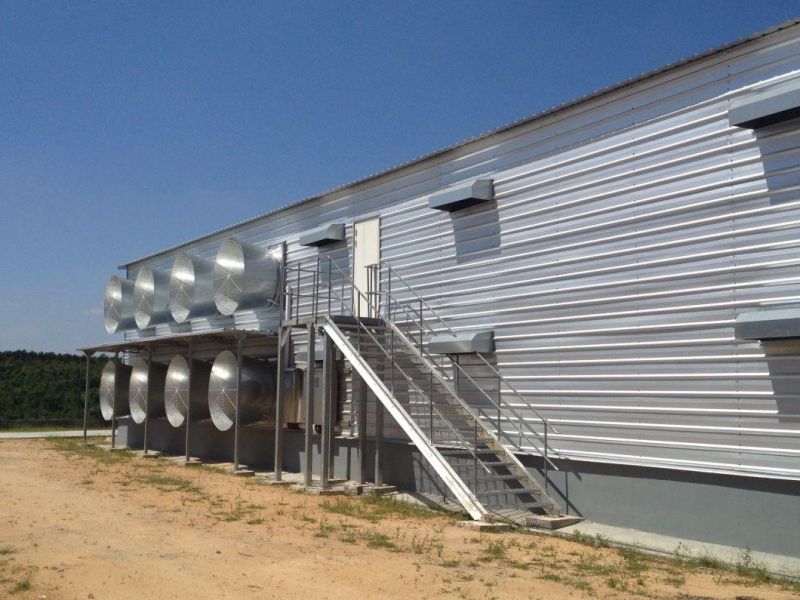

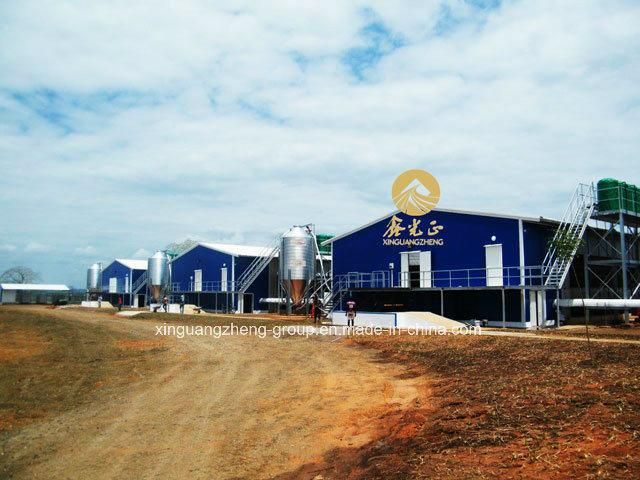

Steel Structure Chicken House Outside:

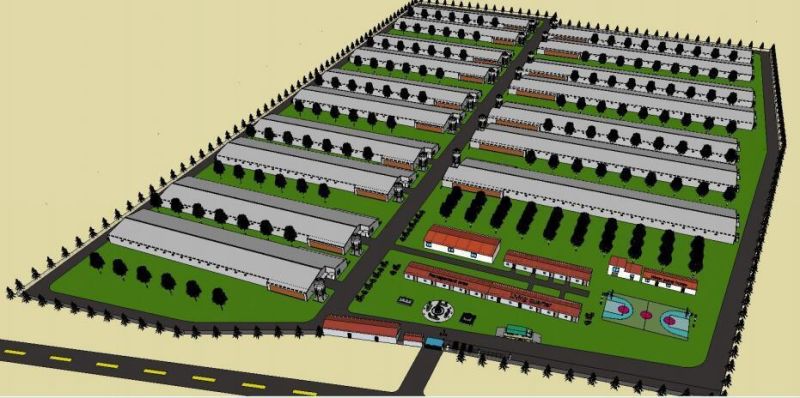

Steel Structure Farm Layout:
