• Model NO.：5XZC-7.5DS
• Customized：Available
• on Site Service：Yes
• Delivery：25 Days
• Certificate：ISO, CIQ, Soncap
• Transport Package：Wooden Case or Container
• Specification：ISO9001-2008, TUV, SGS SONKAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. 5XZC-7.5DS Customized Available on Site Service Yes Delivery 25 Days Certificate ISO, CIQ, Soncap Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/Year

Product Description

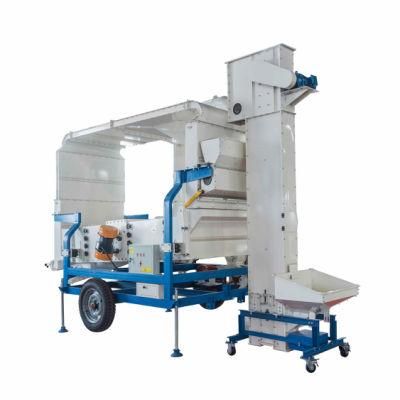

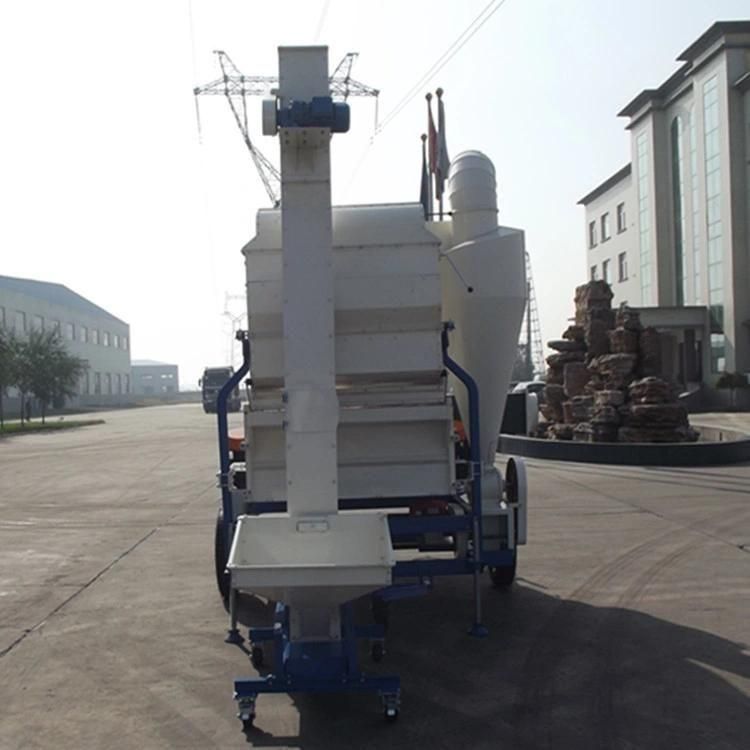

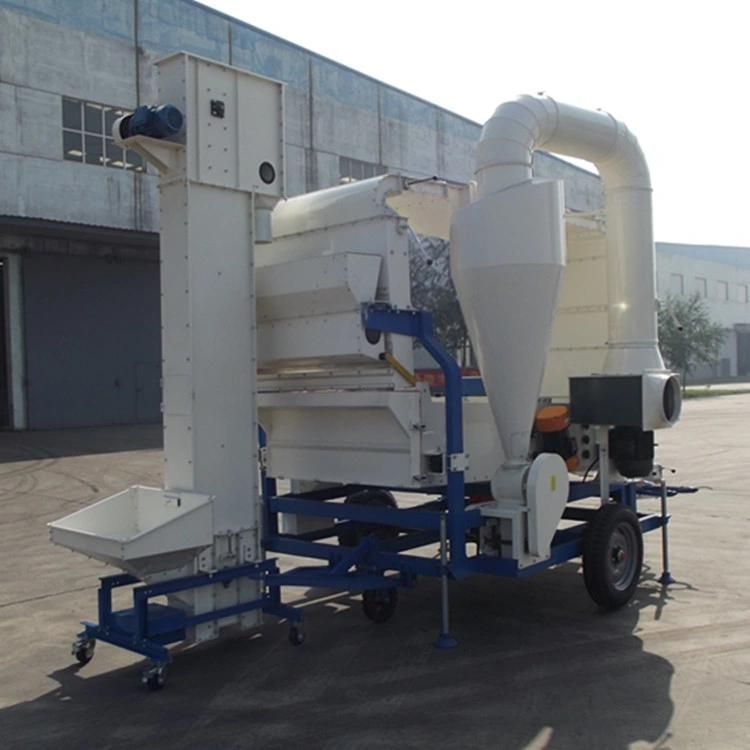

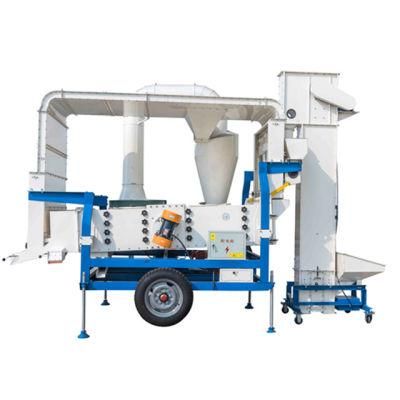

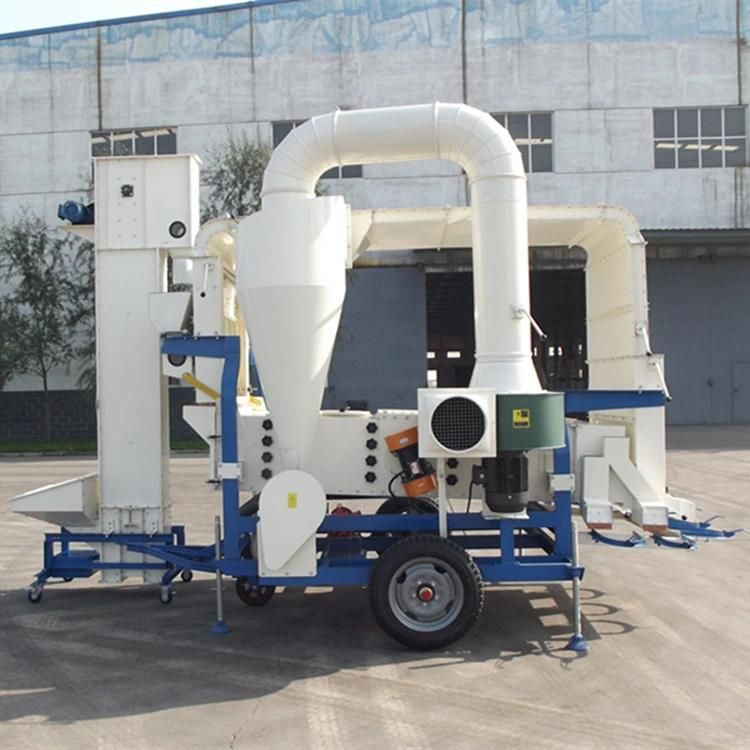

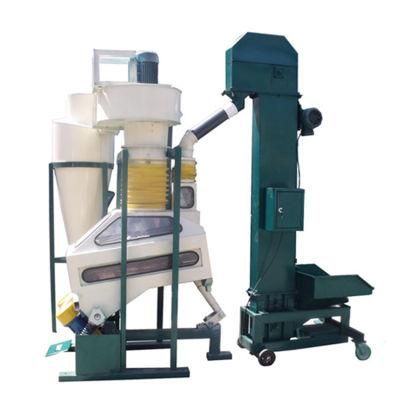

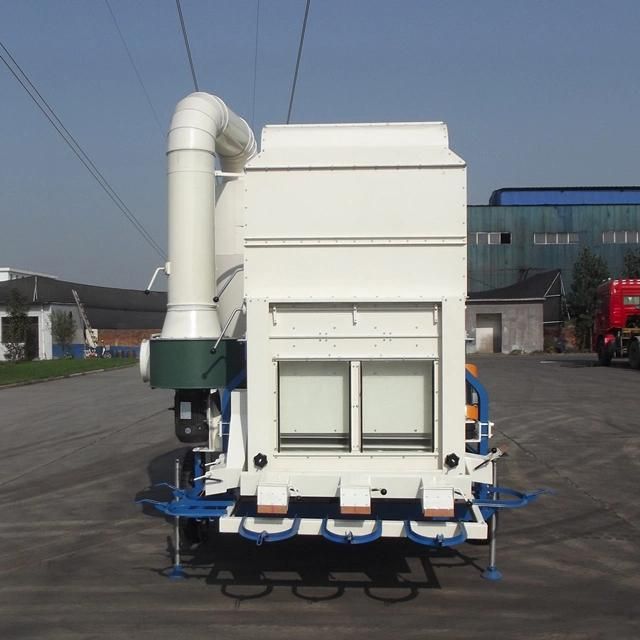

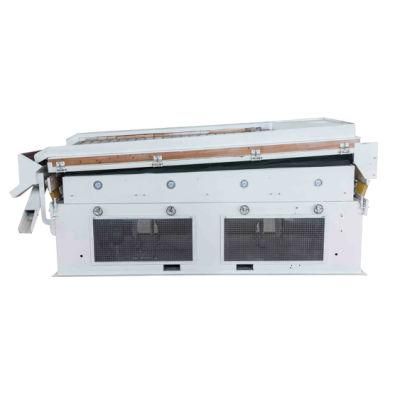

Seed Grain Air Screen Cleaner
The Seed Grain Air Screen Cleanerr  is professionally used for cleaning and grading seeds / grains.

Application

The Seed Grain Cleaner and Grader With A Big Capacity (5XZF-7.5F) is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.

Working principle

Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.

Parameter


Model	Capacity(T/H)	Power(KW)	Weight(KG)	Dimension(mm)
5XZC-3B	3	4.25	1200	3970*1800*2750
5XZC-5DH	5	7.74	1600	4970*1900*3100
5XZC-7.5DS	7.5	10.1	1800	5600*2000*3200
5XZC-15	10	10.5	1800	5600*2100*3200
