Wheat Rice Gravity Separator
Hebei Ruixue Grain Selecting Machinery Company Limited- Capacity(T/H)：1-10 Tons Per Hour
- Power(Kw)：220-680V
- Color：White, Gray and etc
- Warranty：One Year
- Discount：Yes
- Application：Cereal Grain
Base Info
- Model NO.：5XZ-6
- Spare Parts：One Year
- Transport Package：Wooden Case or Container
- Specification：ISO9001-2008, TUV, SGS SONCAP
- Trademark：SYNMEC
- Origin：China
- HS Code：84371090
- Production Capacity：1000 Set,Year
Description
Basic Info.
Model NO. 5XZ-6 Spare Parts One Year Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONCAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/YearProduct Description
Soybean Sorghum Millet Seed Gravity SeparatorThe Gravity Separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The Gravity Separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.
Specification of 5XZC Seed Grain Cleaner:
| Model No. | Capacity(T/H) | Power(KW) | Dimensions(MM) | Remarks |
| 5XZ-5B | 5 | 9 | 4000×2050×3100 | Suction Type |
| 5XZ-5A | 5 | 9.75 | 4000×1900×3100 | Suction Type with Dust Cylone Separator |
| 5XZ-3 | 3 | 7.45 | 2600×1500×2100 | Blow Type |
| 5XZ-6 | 5 | 8.95 | 3440x1630x1900 | Blow Type |
| 5XZ-10 | 10 | 15 | 4300x1960x2500 | Blow Type |
MR. BRUCE
MR. BRUCE
MR. BRUCE

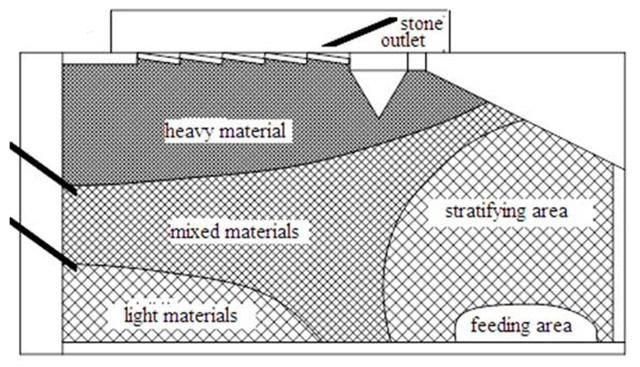

Working Principle of 5XZC Seed Grain Cleaner:
The Gravity Separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

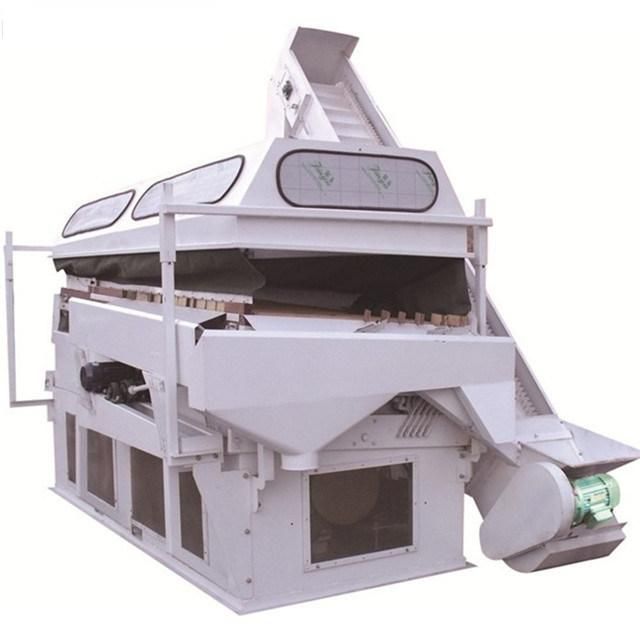

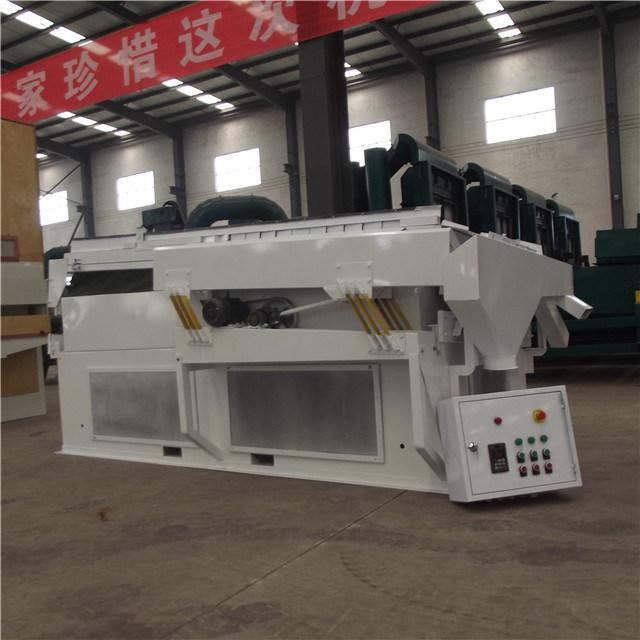

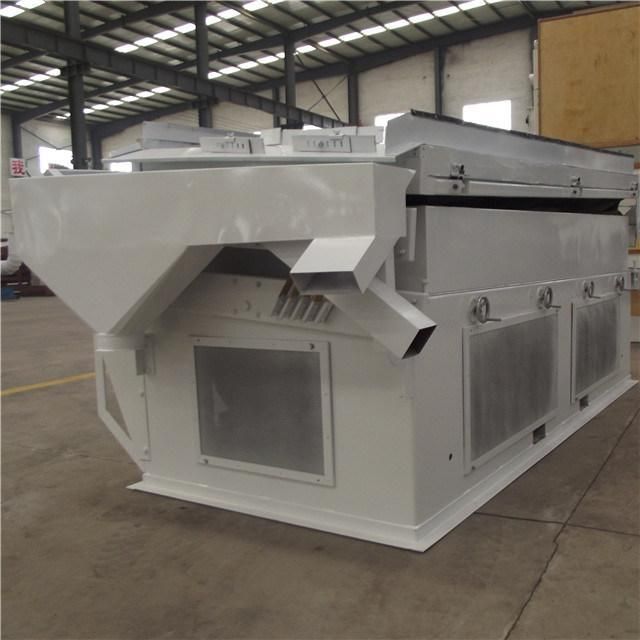

Photos of 5XZC Seed Grain Cleaner Machine:
MR. BRUCE
MR. BRUCE
MR. BRUCE
