Automatic Intelligent Water Fertilizer Control System with Ec pH Sensor

Qingzhou Xinhe Greenhouse Horticulture Co., Ltd.

Application：Wheat, Rice, Corn, Peanut, Tubers, Beans, Trees, Vegetables
Application Field：Agriculture, Livestock, Aquaculture, Forestry, Vegetables
Function：Fertilization
Planting Machine Type：Planting Machine
Fertilizing Machine Type：Full-size Fertilizer
Power Source：Electric

Base Info

Model NO.：Xinhe-FG8
Mechanization：Automatic Planting Machine
Ditching Mode：Continuous Ditching
Sowing：Drilling Seeder
Certification：CE, ISO9001:2008, GMP, QS, UL
Condition：New
Warranty：10 Years
Material：Galvanized Steel Structure and Glass
Ventilation Type：Butterfly Window Ventilation or Rolling Type
Span Width：8m or Customized
Cooling System：Automatic,Intelligent Cooling Fan and Pad
Transport Package：Wood Packing
Specification：more than 100 sqm
Trademark：Xinhe
Origin：China
HS Code：94069000
Production Capacity：1000000 Sqm,Year

Description

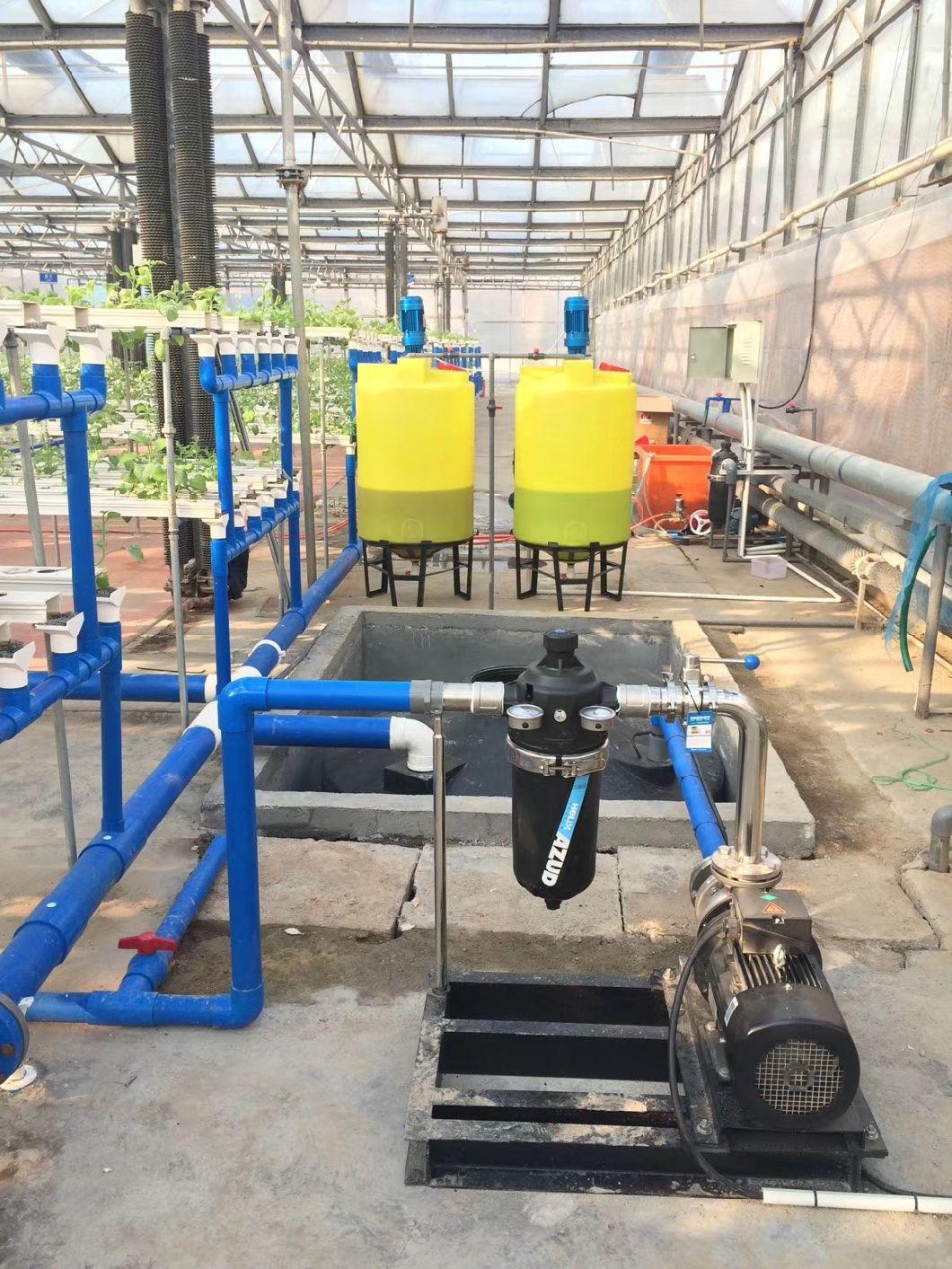

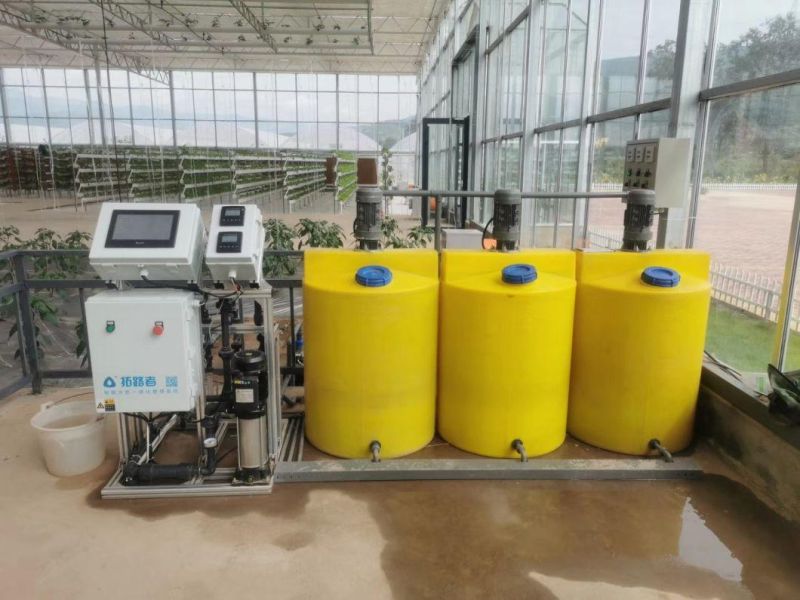

1The combination of fertilization and control can control the operation of the external hydraulic control valve in addition to the suction channel and the fertilizer injection pump, and can also control a main valve or a water pump to meet the user's requirements. Extremely accurate and reliable, prevents water and fertilizer waste while reducing environmental pollution.2There are two modes of manual control and automatic control. The two modes can be switched freely. Optional mobile phone remote connection control with Android or IOS system.
3The suction channel adopts Xinhe Venturi suction device, the system is reliable and easy to install and maintain system. With 3 channels as standard. which can be equipped up to 8. The suction volume of single suction channel can be adjusted from 25L/H up to 1000L/H.

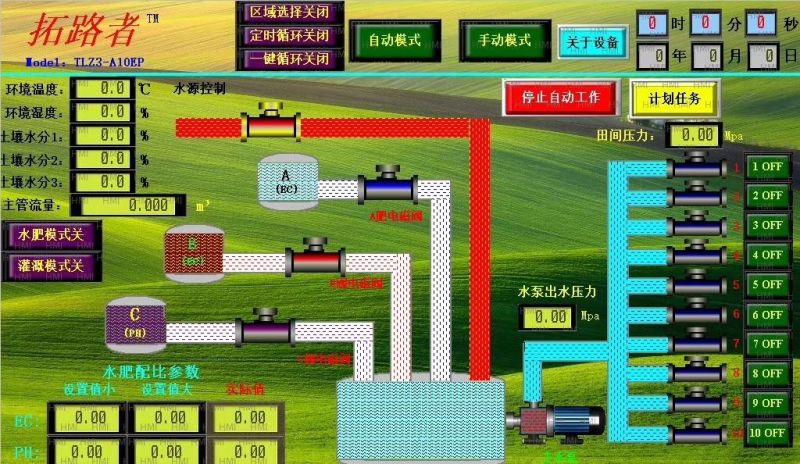

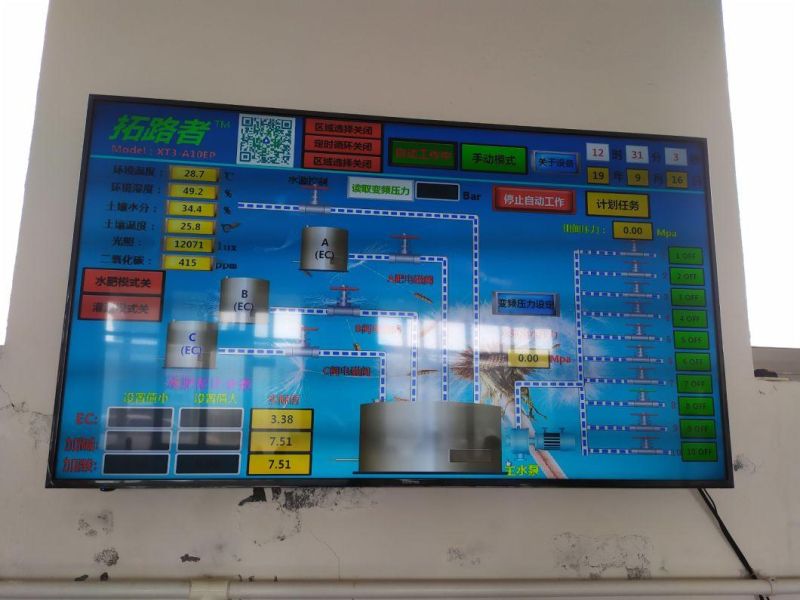

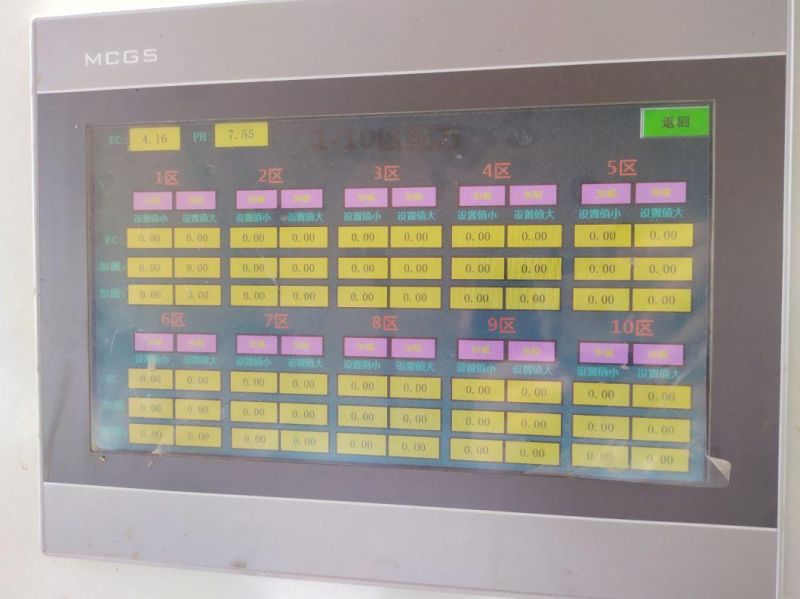

4 EC, PH sensor can monitor the EC and PH value of the fertilizing liquid in real time and display it in EC and PH panel. It is convenient for the user to adjust the rate of fertilization in real time according to the need. The amount of fertilizer can be adjusted by controlling the valve on the fertilization channel. Ensures very precise and homogeneous nutrient dosing for greenhouse crops. 5With system inlet pressure monitoring and alarm function, it has the automatic protection function. When abnormal operation of the equipment, the system can automatically stop6All operation interfaces are in English and industrial-grade LCD touch screens are used to facilitate the user's observation, operation and use at the scene.
7Using advanced intelligent sensor technology, PLC technology, computer control technology, control system adopts 2-tier network topology, Siemens PLC and industrial grade 1 LCD touch screen at the bottom. Easy to operate, reliable performance.8Rich historical records and data curves, storage methods can be saved and exported with commonly used SD card or U disk. And there is optional remote control for remote viewing
Automatic Intelligent Water Fertilizer Control System with Ec pH Sensor

Automatic Intelligent Water Fertilizer Control System with Ec pH Sensor

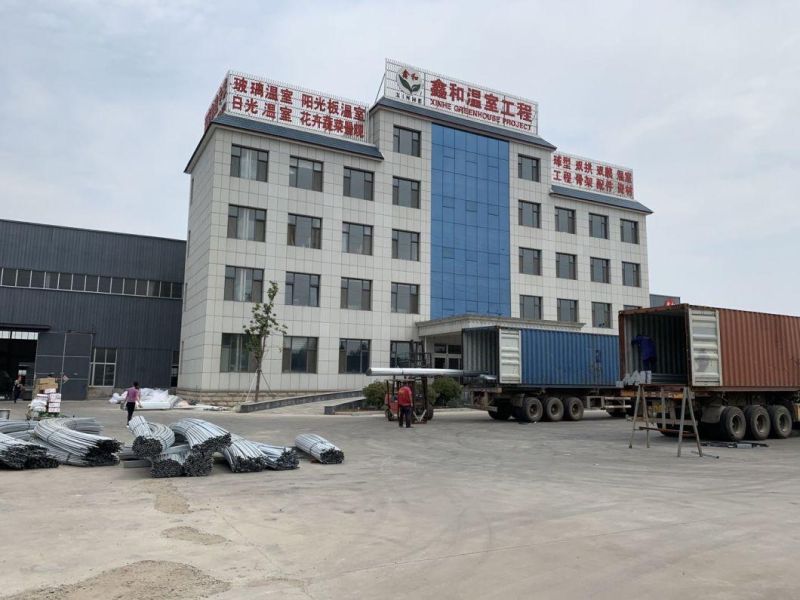

Our factory:
Qingzhou XinHe Greenhouse Horticulture Co., LTD is a professional company which sets greenhouse and supporting facility design, manufacture and research&development in one. The major products include flower market greenhouses, planting greenhouses, aquaculture greenhouses, livestock breeding greenhouses, ecological restaurant greenhouses, glasshouses, spherical greenhouses, sunlight-plate greenhouses, photovoltaic solar energy greenhouses, thin film greenhouses and corresponding accessories.
