• Model NO.：D22L-4
• Power Supply：Electric
• Technics：Assembly
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：2510mm*2510mm*590mm
• Max Pesticide Load：25kg
• Aircraft Medicine Box Capacity：22L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：45kg
• Aircraft Weight：14-16kg
• Flight Attitude：Less Than 30m
• Flight Duration：13-33minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. D22L-4 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 2510mm*2510mm*590mm Max Pesticide Load 25kg Aircraft Medicine Box Capacity 22L Flight Radius Less Than 5000m Max Takeoff Weight 45kg Aircraft Weight 14-16kg Flight Attitude Less Than 30m Flight Duration 13-33minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

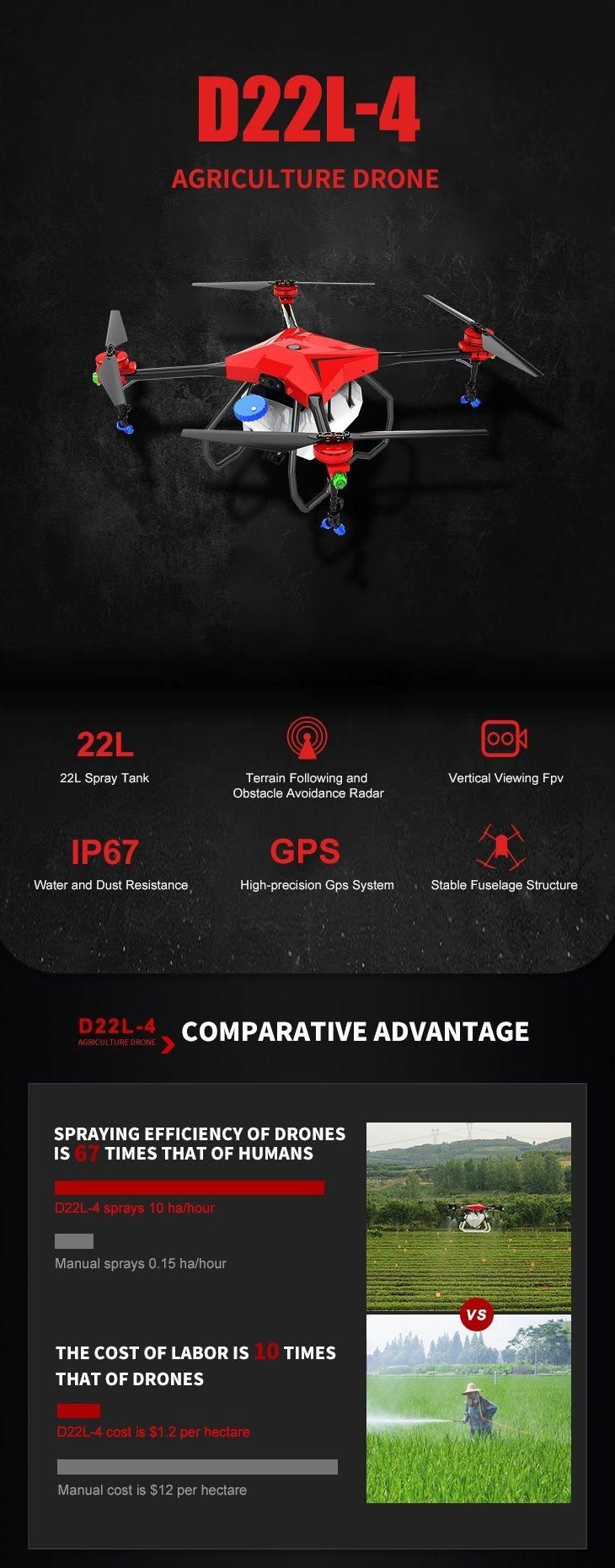

The high efficient 20 liters uav agricultural drone uav dust sprayer

- OEM  & ODM Service -
 Independent research and development product, exclusive design by UNID. Professional industrial level designed structure,stable and durable.Modular design, fewer accessories,saving 20% maintenance costs.This pesticide spraying machine can be converted into fertilizer spreader, applicable crops species including rice, cotton, maize, wheat, etc. Suitable for large-scale farm operations. Reduce working labor costs effectively and improve the working efficiency. Don't puncture the battery. If the battery pack is drummed, there is a safety hazard. Especially when charging, the drum pack should be stopped immediately and the battery should be moved to a safe place.

Model	D22L-4
Product Material	Aviation carbon fiber & aviation aluminum
Airframe Dimensions(Incl. propellers)	1900mm*1900mm*660mm
Airframe Dimensions(folded)	660mm*660mm*660mm
Transport Dimensions	750*750*750mm
Max Takeoff Weight	44KG
Aircraft Weight	15.75KG
Maximum Capacity(spraying system)	22L
Flight Altitude	≤20m
Flight Time (Unloaded)	15~25 minutes
Flight Time (Full Loaded)	5~13 minutes
Flight Speed	≤15m/s
Spray Width	4-6m
Spray Flow	3-5L/min
Nozzle Type	Imported high pressure anti-floating atomizing nozzle
Droplet Size	60~90μm
Flight Controller	Professional industrial version flight controller
Navigation Method	GPS/GNSS RTK
Operating Efficiency	≥9 (ha/hr)
Safe Takeoff and Landing Wind Speed	≤8 m/s
Motor speed	5000rpm
Battery Voltage	50.4V
Battery Capacity	22000mAh*1( 12S Intelligent Lithum Battery)
Battery Lifespan(Cycle)	≥500
Intelligent Charger	AC Input 100-240V
