• Model NO.：U16L-4
• Power Supply：Electric
• Technics：Assembly
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：1070mm*1070mm*370mm
• Max Pesticide Load：18kg
• Aircraft Medicine Box Capacity：16L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：34kg
• Aircraft Weight：11kg
• Flight Attitude：Less Than 30m
• Flight Duration：20-25minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. U16L-4 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 1070mm*1070mm*370mm Max Pesticide Load 18kg Aircraft Medicine Box Capacity 16L Flight Radius Less Than 5000m Max Takeoff Weight 34kg Aircraft Weight 11kg Flight Attitude Less Than 30m Flight Duration 20-25minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

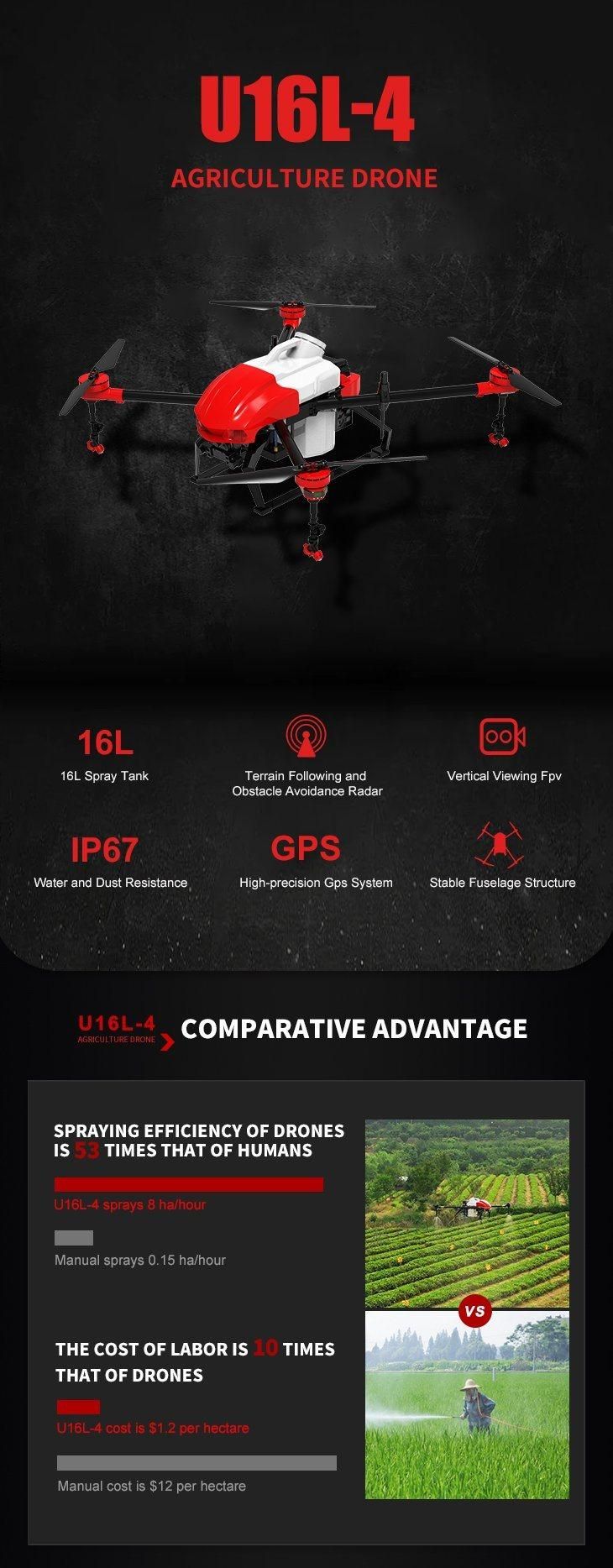

Ready to Fly agriculture Crop Duster Automatic Flight UAV with large payload
- OEM  & ODM Service -
U16L-4 is equipped with a new imaging radar, which is not affected by ambient light and dust, and can sense the farmland environment all day long.It supports forward and backward two-way obstacle avoidance, and the horizontal detection Angle reaches 100°, which is doubled compared with the previous generation, and the flight safety is greatly improved.Equipped with digital beam synthesis technology, 3d point cloud imaging can be realized, complex farmland scene can be effectively identified in operation, and autonomous obstacle circling flight can be realized.The radar supports terrain slope detection, and mountain slopes can be imitated for ground flight.

Model	U16L-4
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	1840mm*1840mm*530mm
Product folding size	740mm*370mm*530mm
Packaging size	900*450*600mm
Maximum takeoff weight	34KG
Aircraft weight	12.4KG
Pesticide Barrel	16L(standard a bucket)
Flight altitude	≤30 meters
Fly time(unloaded)	20~25 minutes
Fly time(loaded)	10~13 minutes when fully loaded
Flight speed	1-10 m / sec
Structure lift span	≥10 years
Spray width	4-8 meters
Hovering in the air	Hovering in any direction
Spray flow	3-8L/min double pump adjustable
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	5~6hectares/hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charer	AC Input 100-240V
Lithium-polymer battery	16000mAh*1
