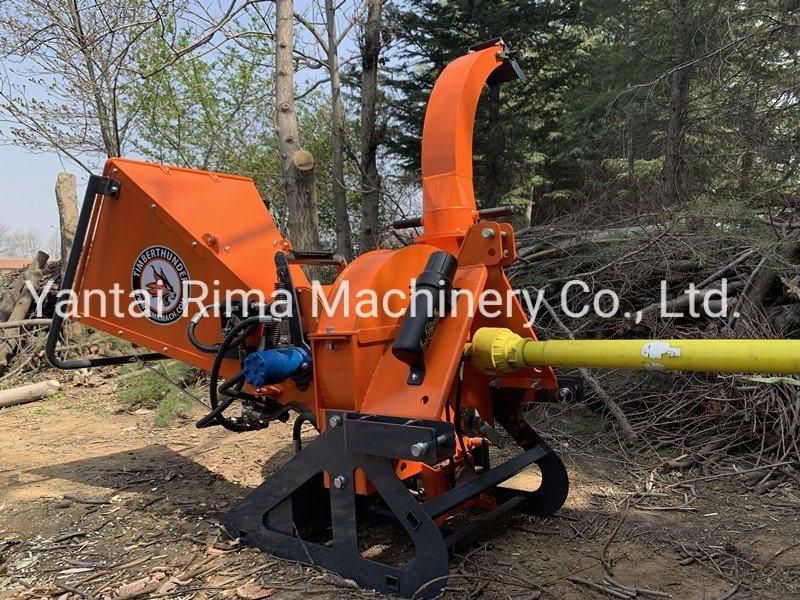

Pto Wood Brush Shredder Chipper

Yantai Rima Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Type：Wood Chipper
  • Power Source：Hydraulic
  • Certification：CE
  • Model：Wc68

Base Info

  • Drive System：Tractor Pto
  • Max Chipping Diameter：150mm , 6"
  • Tractor Required (at The Pto)：20~50HP
  • Hydraulic Oil：19 L , 5 Gallons of ISO 32 or ISO 46
  • Hydraulic Pump：Belt Driven
  • Flywheel Diameter/Thickness：61cm X 2.0 Cm Thick
  • Flywheel Speed：540rpm
  • Flywheel Drive System：Direct Drive
  • Flywheel Housing Thickness：8mm Thickness
  • Flywheel Shaft Diameter：50mm
  • Number of Blades：4 Piecs Resersible Blades
  • in-Feed System：Self-Contained Hydraulic System
  • in-Feed Roller Size：8.25" (21cm) Chisel Tooth
  • Discharge Chute：360 Degree Swivel
  • Transport Package：Polywood Box
  • Specification：1.1cbm , 374kg
  • Origin：Shandong, China
  • HS Code：8436800090

Description

QUICK HITCH COMPATIBLE

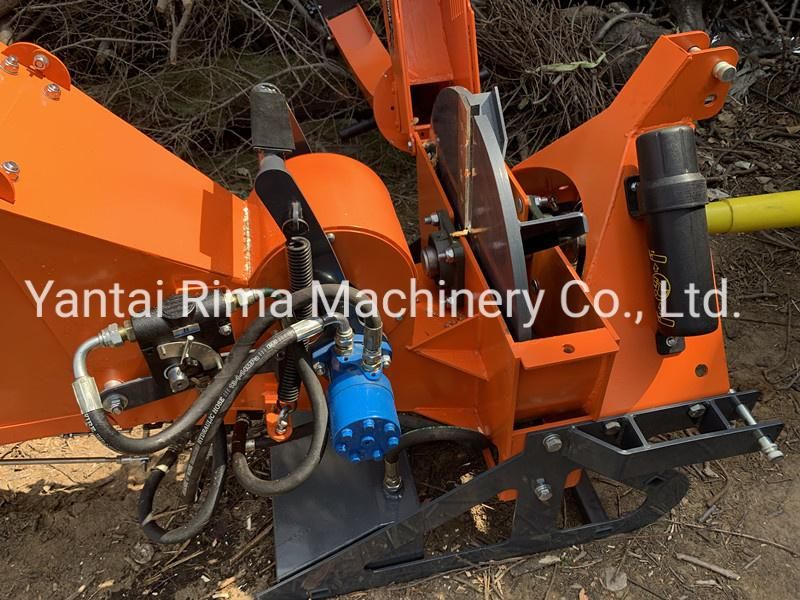

Pto Wood Brush Shredder ChipperDural flywheel to power the chipper Pto Wood Brush Shredder ChipperPto Wood Brush Shredder ChipperThe valve to adjust the infeed speed PTO SHAFT Pto Wood Brush Shredder Chipper
