• Model NO.：BX52R, WC52R, ECO23 wood chipper
• Use：Chipping Wood
• Safety Device：Emergency Stop Handle
• User Manual：Included
• Chip Type：Flywheel Type
• Applicable Industries：Commercial Using, Machinery Shops, Home Use etc.
• Power：Tractor Cardan Shaft
• Colour：Customized
• Feeding Type：Horizontal Double Hydraulic Feeding Rollers
• Frame Type：Integrated
• Chipping Capacity：5 Inches(127mm)
• Folded Hopper：Yes
• Highest CE Standard：Stop-Reverse-Forward-Stop Safety Handle
• Self-Contained Hydraulic System：Yes
• Transport Package：Steel Crate Package
• Specification：2.5CBM
• Trademark：WFMC or your own logo
• Origin：Shandong
• HS Code：8436800090
• Production Capacity：6000,Year

Basic Info.

Model NO. BX52R, WC52R, ECO23 wood chipper Use Chipping Wood Safety Device Emergency Stop Handle User Manual Included Chip Type Flywheel Type Applicable Industries Commercial Using, Machinery Shops, Home Use etc. Power Tractor Cardan Shaft Colour Customized Feeding Type Horizontal Double Hydraulic Feeding Rollers Frame Type Integrated Chipping Capacity 5 Inches(127mm) Folded Hopper Yes Highest CE Standard Stop-Reverse-Forward-Stop Safety Handle Self-Contained Hydraulic System Yes Transport Package Steel Crate Package Specification 2.5CBM Trademark WFMC or your own logo Origin Shandong HS Code 8436800090 Production Capacity 6000/Year

Product Description

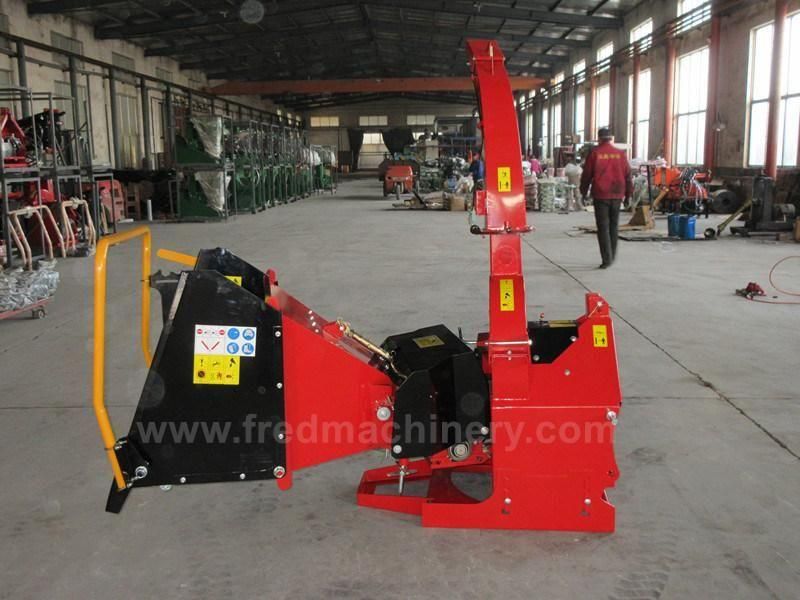

BX52R Hydraulic Wood Chipper has a tractor PTO powered rotor and hydraulic feed hopper, meaning logs, branches, limbs and brushes are control fed for continuous chipping at maximum capacity.
A self-contained powered hydraulic system gives stable working to the chipper shredder, eliminating the hot problem of the hydraulic oil from working tractors. Hydraulic valves and hoses are protected. The hydraulic parts can work with durable long life. So the machine will be in use for a longer life-time using and less maintenance.

Advantages include:
1. 5 inches chipping capacity
2. Above 25HP tractor PTO powered and towed
3. With a self-contained hydraulic oil tank and pump system,
4. Solid and rock structure built with 400kg net weight
5. 4 double edges sharp cutting knives and 1 bed blade
6.  Latest CE strict safety standards
7. More high efficiency and less maintenance by using branded parts and accessories
8. Using friendly with humanization design
9. Hopper folded for better and safer transportation
10. Double hands operating makes sure the higher safety and quality standard

Working Effect:


Technical Specifications:


Model	BX52R
Drive System	Direct drive, PTO shaft with shear bolt
Power requirement for max. Cap.	40~45 HP(45-52 kW)
HP Range	30-70 HP(30-75 kW)
Chipping capacity	5''(127mm)
Chipping Housing Opening	5"x10"(127x254mm)
Rotor Size	25''(diameter 630mm)
Rotor Weight	150lbs.(67kg)
No. of cutting knife	4
No. of the bed knife	1
Cutting Knife Length	210mm
Knife material	Hardened tool steel, Durable Chromium CR-12
In-feeding System	Hydraulic feed
Hydraulic system control	Stop-Reverse-Forward-Stop
Feeding System Power	Self Contained PTO Power Hydraulic Oil Tank, Pulley, Belt  and Pump System
Hydraulic Oil Tank Volume	20L
Feeding System Feed	Dual Horizontal Hydraulic motors
Mounting System	3 Point Hitch Cat I(iMatch & Quick Hitch compatible)
Machine Structure Net Weight	890lbs.(400kg)
Dimensions(LxWxH)	80" x 67" x 74" Open 62" x 61" x 74" Closed 204cm x 171cm x 188cm Open 158cm x 155cm x188cm Closed
Discharge hood rotation	360°
Discharge Hood Height	74"(1879mm)
Rated RPM	540-1000
Standard Features	Self Contained PTO Power Pack Dual Hydraulic Feed Roller System Easy Start-no fuss large diameter feed start Forward/Reverse Emergency Stop Feed Roller Control Bar 360°Rotating Discharge chute Folding Spring Assist/Latching Feed Table Turnbuckle Lift Feed Roller(for maintenance) Feed Roller Flow Control (non Intellifeed) Multi-Position, Locking Discharge Chute Four-position Rotor Lock Reversible Rotor Blades Reversible Ledger Knife Positive Adjust Ledger Knife Dual Blade Twig Breaker

Certifications:


FAQ:


Why choose our company to buy a wood chipper?	1. As manufacturer, large product range have excellent quality and competitive price. 2.1 year warranty are visible and quick good sales service. All requirements from our customers could be answered at first time during working time. Most importantly, 7 x 16 service could be provided to clients. Whatever it is sale offers advice or after-sales technical support. This is impossible for other companies here. 3. Strictly testing and checking by our QC department before packaging and shipping. 4. More than 10 years experience focusing on wood chipping machinery and 8 years exporting experience. 5. Doing OEM for many famous brands. 6. Quick delivery time When you place an order, production will be arranged soon. Order production will be finished within 20 - 30 workdays. This means you will receive the goods soon and prepare to sell and make more profit than your competitors in the market.
How to order?	[Step 1] Send a detailed inquiry by email. [Step 2] We offer you quotes. [Step 3] Confirm delivery time/freight operation. [Step 4] Arrange order production after deposit received [Step 5] Confirm consignee and notify party information. [Step 6] Book ship arrange shipping, after loading vessel, balance payment receipt of B/L copy. [Step 7] Commercial invoice, packing list and B/L sent to you after receipt of balance payment. [Step 8] All products received and services.
What are your trade terms?	FOB, CIF, CFR, CNF, DDU, DDP.
What are your payment terms?	(T/T) Telegraphic Transfer or Telex Transfer(Bank Transfer) 30% deposit, and balance the rest after receiving the Bill of Lading copy.
How should we visit you and your factory?	First of all, welcome you or any appointed agent to visit and inspect our factory. You can fly to Qingdao or Beijing airport, then come from Qingdao railway station or Beijingnan railway station to Weifang city. (55 minutes -3h30minutes) We can pick up you at the Weifang railway station. Please kindly let us know your schedule in detail, so we can arrange everything for you.
How long is your lead time or delivery date?	Usually, the lead time is about 20 days for smaller orders. And 30 days for big orders. The delivery date will be confirmed with Shipping Forwarder before order production is finished.
Can your company accept OEM or ODM production?	Yes. Now some famous companies from Europe and America are working with us by OEM and ODM means.
Can I order samples to test the quality?	Yes, of course. Quality could be evaluated with sample scale or trial order before placing batch orders.
