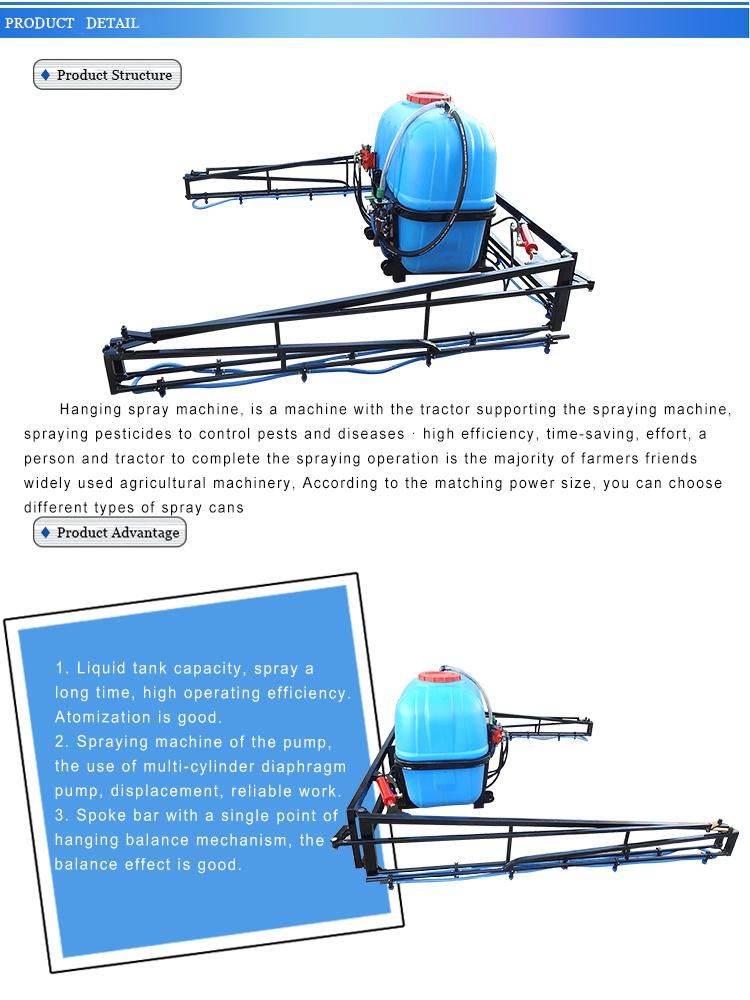

Agricultural 3 Point Linkage Tractor Moubnted Boom Sprayer Machine

Fujin Lixing Plant Protection Machinery Manufacturing Co., Ltd.
  • Installation：External Thread Connection
  • Liquid Contained：Medicine
  • Spraying Shape：Sector
  • Volume：400L-5000L
  • Type：Mounted Boom Sprayer
  • Nozzle Model：No.3

Base Info

  • Model NO.：3WPX-800
  • Spray Angle：110°
  • Weight：160kg
  • Pump Type：Diaphragm Pump
  • Transport Package：Standard Package for Export
  • Specification：2950 X 1650 X 1400 mm
  • Trademark：LIXING
  • Origin：Heilongjiang
  • HS Code：8424820000
  • Production Capacity：1500

Description

 Model 3WPX-800 type hanging sprayer Pump Type Diaphragm pump (four-cylinder) Power ≥22KW (30 hp) Pump Pessure 3.0Mpa Mixing Method Circulating water mixing Pump Flow 160L / min Folding Method Hydraulic folding Pump Speed 500-600r / min Vertical Height 0.5m Tank Capacity 800L System Work Pressure 0.3-0.5Mpa Spray Width 12m 3 Filtration System Tank inlet, pump inlet, nozzle Spray Height 0.5m Operating Efficiency 18-24 acres / hour Nozzle Model No.3  Walking Speed 4-20Km / h Spray Angle 110 ° Overall Dimension 2900 mm x 1650 mm x 1600 mm Nozzle Flow 1.2L / min Weight 150kg Water Tank 15L

Agricultural 3 Point Linkage Tractor Moubnted Boom Sprayer Machine
Agricultural 3 Point Linkage Tractor Moubnted Boom Sprayer Machine
Agricultural 3 Point Linkage Tractor Moubnted Boom Sprayer Machine
Agricultural 3 Point Linkage Tractor Moubnted Boom Sprayer Machine
Q:Are you a factory or trading company?

A:We are a factory.

Q:How does your factory do regarding quality control?

A:Quality is priority. we  always say great importance to quality controlling from the very  beginning to the very end.

Q:Do you have a product accessory?

A:Yes, we have the accessories of the product.

Q:Can you customize the product?

A:We can customize the product.

Q:What's your payment terms?

A:Payment terms is T/T or L/C,We accept all reasonable payment.

Q:How about delivery time of your machine?

A:The delivery time is in 60 working days. It depending your quantity.
