Poultry Feed Pellet Making Machine Animal Feed Pellet Mill
Jiangsu Dazhong Electric Motor Co., Ltd.- Type:Pellet Mill
- Processing Object:Mixed Feed
- Processing Technics:After Mixing
- Screen Mesh:Without Screen Mesh
- Pellet Mill Type:Ring Die Pelleter
- Condition:New
Base Info
- Model NO.:SZLH
- Applicable Materials Shape:Powder
- Delivery Time:20-30days
- Motor:Siemens(Beide)
- Bearing:NSK
- Dia of The Die:2-8mm
- Oil Seal:Sog
- Conditioner:Stainless Steel
- Transport Package:Iron Pallet
- Specification:5T
- Trademark:APEX
- Origin:China
- HS Code:8436100000
- Production Capacity:2-20t,H
Description
Basic Info.
Model NO. SZLH Applicable Materials Shape Powder Delivery Time 20-30days Motor Siemens(Beide) Bearing NSK Dia of The Die 2-8mm Oil Seal Sog Conditioner Stainless Steel Transport Package Iron Pallet Specification 5T Trademark APEX Origin China HS Code 8436100000 Production Capacity 2-20t/HProduct Description
ABOUT USLIYANG APEX designs, manufactures and trades of feed machines, biofuel machines complete projects and spare parts.
APEX has implemented a strict and comprehensive system to monitor and maintain quality, so each and every APEX product can exceed the expectations of our clients. APEX has a very experienced team in the areas of machinery production, engineering design and assembly. All of APEX products will be extensively inspected prior to shipment.
PARAMETERS
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use..
Main Technical Parameter
Model | Output (t/h) | Main Power (kW) | Power Of Conditioner (kW) | Power Of Feeder(kW) | ID Of Die (mm) | Pellet Size (mm) |
SZLH25 | 0.5-2 | 15/22 | 1.5 | 0.55 | ¢250 | ¢2-18 |
SZLH320 | 2-5 | 37/45 | 2.2 | 0.55/0.75 | ¢320 | ¢2-18 |
SZLH400 | 3-12 | 75/90 | 5.5 | 1.5 | ¢400 | ¢2-18 |
SZLH420 | 3-14 | 90/110 | 5.5 | 1.5 | ¢420 | ¢2-18 |
SZLH508 | 6-20 | 110/132/160 | 7.5 | 1.5/2.2 | ¢508 | ¢2-18 |
SZLH400a | 3-12 | 75/90 | 5.5 | 1.5 | ¢400 | ¢2-18 |
SZLH420a | 3-14 | 90/110 | 5.5 | 1.5 | ¢420 | ¢2-18 |
SZLH400b2 | 3-12 | 75/90 | 5.5×2 | 1.5 | ¢400 | ¢2-18 |
SZLH420b2 | 3-14 | 90/110 | 5.5×2 | 1.5 | ¢420 | ¢2-18 |
SZLH558 | 10-25 | 185 | 7.5 | 2.2 | ¢572 | ¢2-18 |
SZLH578 | 10-28 | 200 | 7.5 | 2.2 | ¢572 | ¢2-18 |

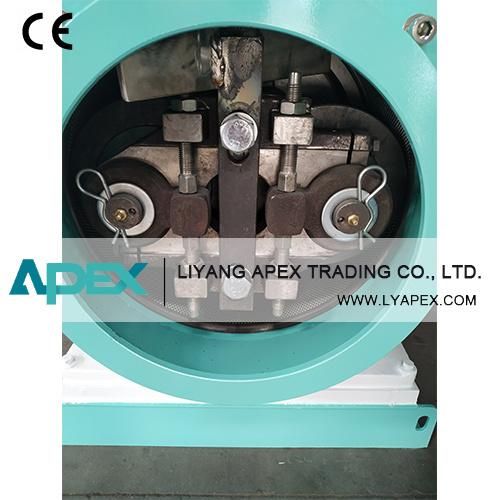

DETAIL PHOTOS

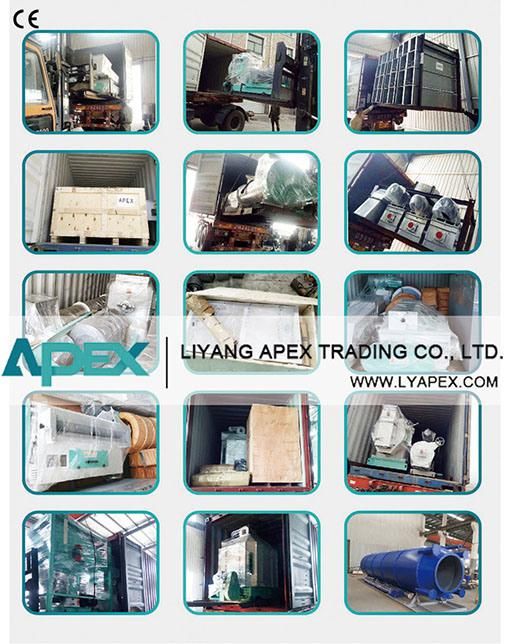

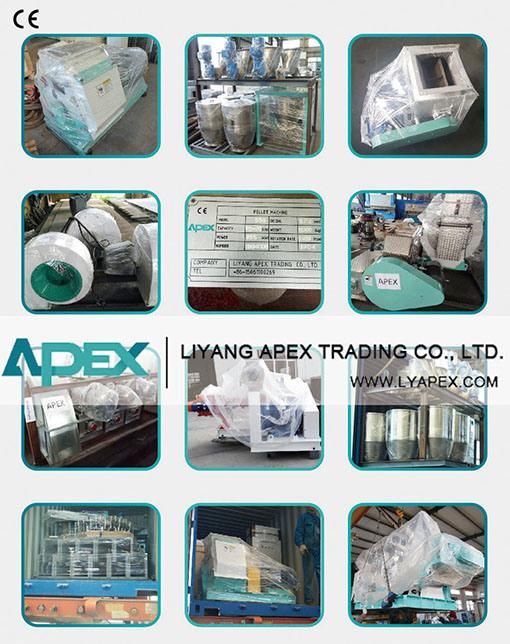

EXPORTED EQUIPMENT
