Customized OEM Made Agricultural Big Round Grass Baler Machine
Weifang Guoan Engineering Machinery Co., Ltd.- After-sales Service：12 Months Warranty
- Type：Round Baler
- Automatic Grade：Automatic
- Power Source：Tractor
- Warranty：1 Year
- Certification：ISO, CE
Base Info
- Model NO.：GAR2200
- Model：Gar2200
- Bale Size：1250X1300mm
- Bale Weight：250kg
- Overall Size：4500X2660X2350mm
- Machine Weight：4050kg
- Color：Red,Green or as Your Request
- Capacity：12t,H
- Match Power：>100HP
- Number of Rollers：18
- Pickup Width：2300mm
- Transport Package：Iron Package with Film Covering
- Specification：4500x2660x2350mm
- Trademark：Guoan
- Origin：China
- HS Code：843340
- Production Capacity：500 Untis,Month
Description
Machine details.

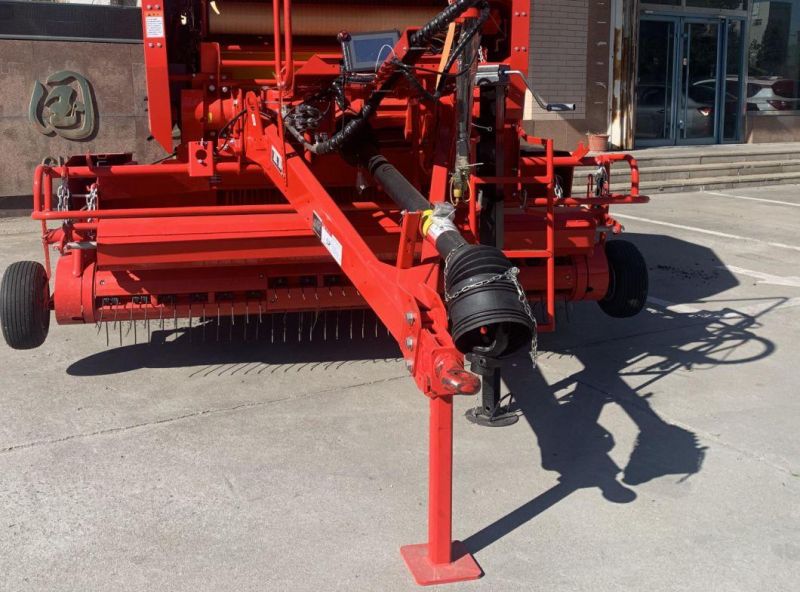

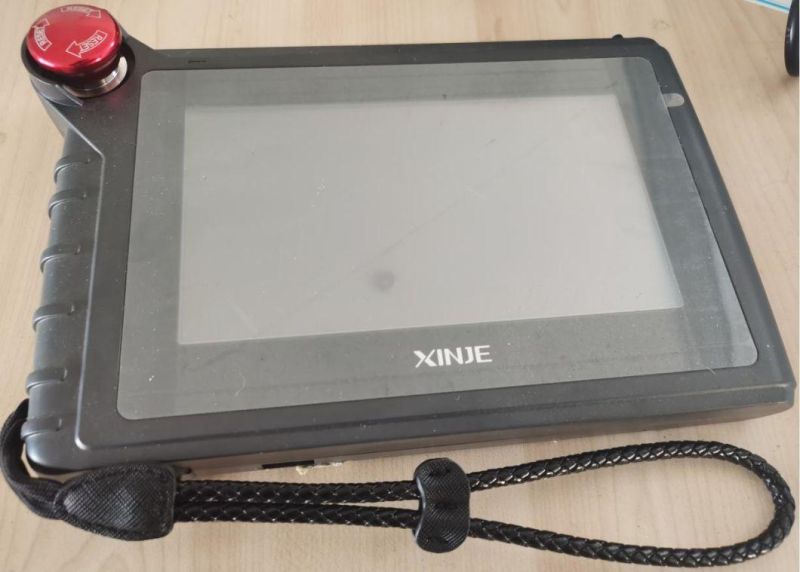

The universal drive shaft adopts a notch clutch to protect the drive system, and it can work without replacing bolts or friction plates after overloading, saving time and improving efficiency.The handheld color touch screen, with ultra-high definition, adopts industrial robot standard control system, placed in a fully enclosed cast aluminum alloy box, adapts to various harsh working environments, and has a reliable working life of up to 100,000 hours, with high-precision displacement sensor, so that the packing weight can be precisely controlled.

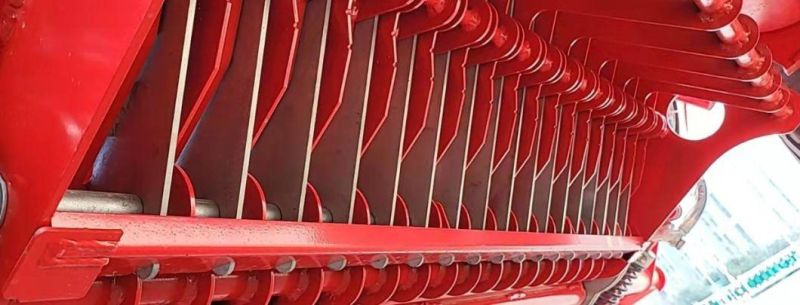

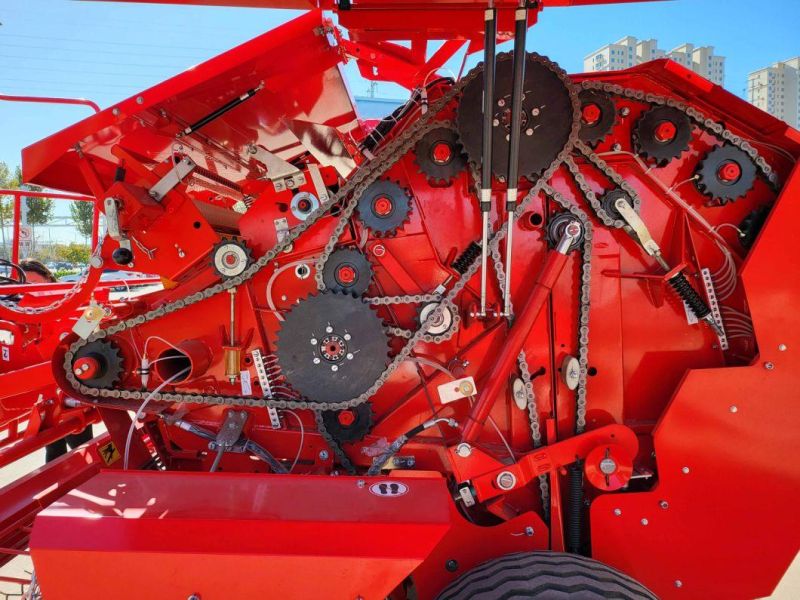

The sprocket is made of high-quality alloy steel through multiple processes, and has high wear resistance. With the specially customized high-strength chain, it can effectively reduce the maintenance time of the whole machine.The heavy-duty knife roller works with 17 alloy knives to cut the straw into different lengths according to different requirements. Can be operated from the cab.
Company profile.
About us.
Weifang Guoan Engineering Machinery Co.,Ltd was founded in 2006, is a comprehensive technology company intergrating research, production, sales and service. We have 14 years' experience of machanical development and production. We have more than 200 employees, 30R&D persons, a number of patented technologies.
Our products.
We have been focusing on Drum mower for more than 5 years. The DM135 and DM165 series Drum mowers that we have researched and produced independently are the three-point suspension hay mowers that can be matched with 30-80hp tractors to go for the walking works in the field, which is mainly used for mower grass.
Besides, we also have Net wrap balers, Rope balers, Square baler, Big round baler, Hay rake, Bale wrapper machines, can meet your different requirements.
Our partnership.
We have already exported to Russia, Vietnam, Germany, Spain, South africa, Serbia, Brazil, Columbia, Czech and many other countries.
Benefits of our company.
1. Our company have 20 years experiences of parts production, supplied accessories to Foton Lovol so far.
2. 95% parts of balers are produced by our own factory, guarantee the quality of each accessory from the source.
3. Our company participates in various domestic and foreign exhibitions every year, and visits customers locally to obtain the usage of customers' local machines, so as to better improve the machines.
4. The original forced feeding technology, and continuous research and development of new models. Now have Square balers, Big round balers, Rope twine balers, Net wrap balers etc.
Exhibitions.
More products.
Package and shipping. 1. The package is usually iron package with film covering. We also can meet your requirements if you have any special needs. 2. All the machines have 1 year warranty. If any parts except the wearing parts are damaged within one year, we will compensate you for the parts free of charge.3. Professional engineers and sales will provide you with online services 24 hours a day. Please feel free to contact us if anything we can help.
Our services. Pre-sales:
1. First of all, we will recommed suitable machine and model as customers' requirements.
2. After customers places order, we will supply pictures of each manufacturing parts for customers checking on time.
3. Prepare packing and shipment according to customers' needing in advance.
4. Testing machines and taking testing video for customers' checking.
After-sales:
1. We will guarantee the machines quality for 1 year.
2. Provide 24-hour online training and Q&A.
