• Model NO.：YG30 60 80 100
• Power Supply：Electric
• Technics：Blow Moulding
• Material：Stainless Steel
• Type：Push Sprayer
• Name：Environmental Protection Fog Cannon
• Function：Automatic Water Mist Dust Sprayer Fog Cannon
• Spraying Distance：30m 120m Truck Mounted Fog Cannon
• Keywords：Dust Suppression Spraying Machine Odor Fog Cannon
• Water Pressure：2-3.5MPa
• Power：Electric or Gasoline or Diesel Generator Fog Canon
• Application：Disinfectant Sprayer, Agriculture Sprayer
• Horizontal Range：10-100m
• Comsumption：30-40L,Min
• Fan Power：3kw-22kw
• Voltage：380V or 220V or Diesel or Gasoline Generator
• Pump Power：5.5kw
• Fog Size：20-200
• Control Method：Automatic
• Size：1900*1200*1800mm
• Transport Package：Wooden Case
• Specification：250kg
• Trademark：Yugong
• Origin：China (Mainland)
• HS Code：8424899990
• Production Capacity：5000sets,Month

Basic Info.

Model NO. YG30 60 80 100 Power Supply Electric Technics Blow Moulding Material Stainless Steel Type Push Sprayer Name Environmental Protection Fog Cannon Function Automatic Water Mist Dust Sprayer Fog Cannon Spraying Distance 30m 120m Truck Mounted Fog Cannon Keywords Dust Suppression Spraying Machine Odor Fog Cannon Water Pressure 2-3.5MPa Power Electric or Gasoline or Diesel Generator Fog Canon Application Disinfectant Sprayer, Agriculture Sprayer Horizontal Range 10-100m Comsumption 30-40L/Min Fan Power 3kw-22kw Voltage 380V or 220V or Diesel or Gasoline Generator Pump Power 5.5kw Fog Size 20-200 Control Method Automatic Size 1900*1200*1800mm Transport Package Wooden Case Specification 250kg Trademark Yugong Origin China (Mainland) HS Code 8424899990 Production Capacity 5000sets/Month

Product Description

Water mist sprinkler system fog cannon disinfection spray machine

Water mist cannon spraying machine is a kind of machine which can spray water mist and disinfectant to disinfecting schools, and streets to protect the environment, and also for the polluting of dust suppression.

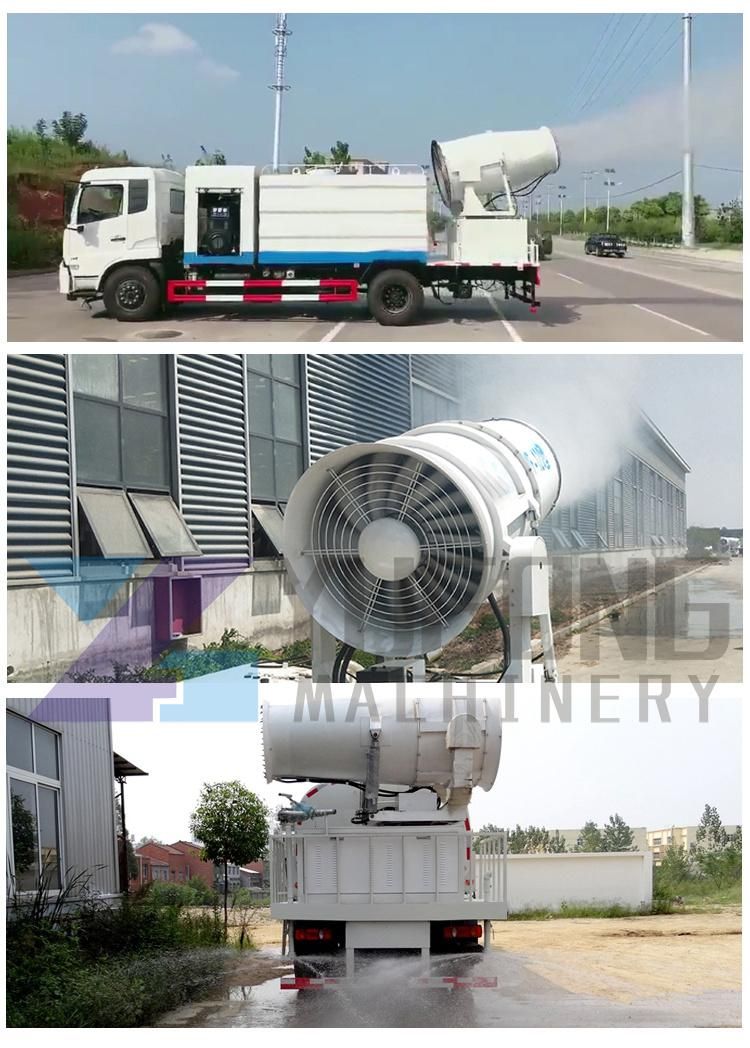

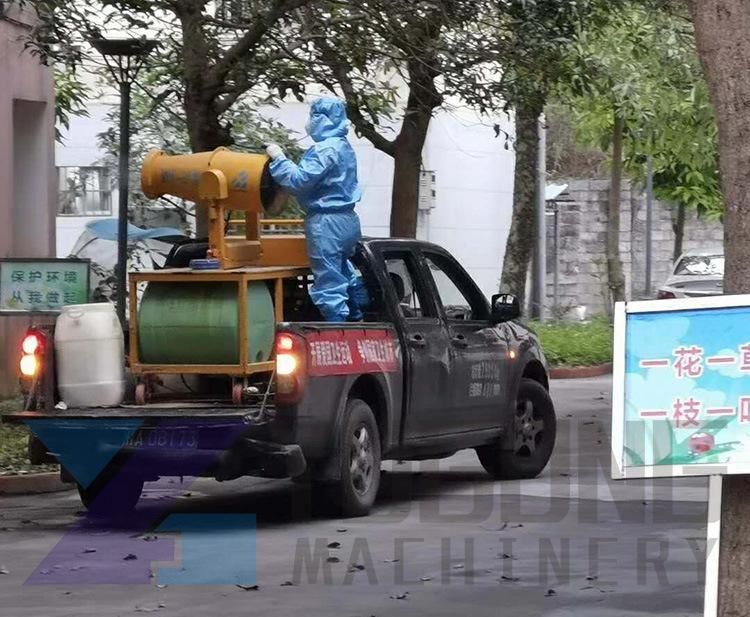

We have portable fogging machine, 4 wheels fog cannon, tricycle fog cannon, and truck mounted fog cannon.

Wide Application of the Water Mist Cannon Spraying Machine:
The scope of application of smart dust controller products widely applicable to a variety of industry applications, usually smart dust machine controller, the uniform spray pattern and small droplet size has been shown to be effective in reducing the dust in the air, odor and chemical particles. Its main applications include:
A) Sanitation Equipment: fog cannon disinfection spray machine

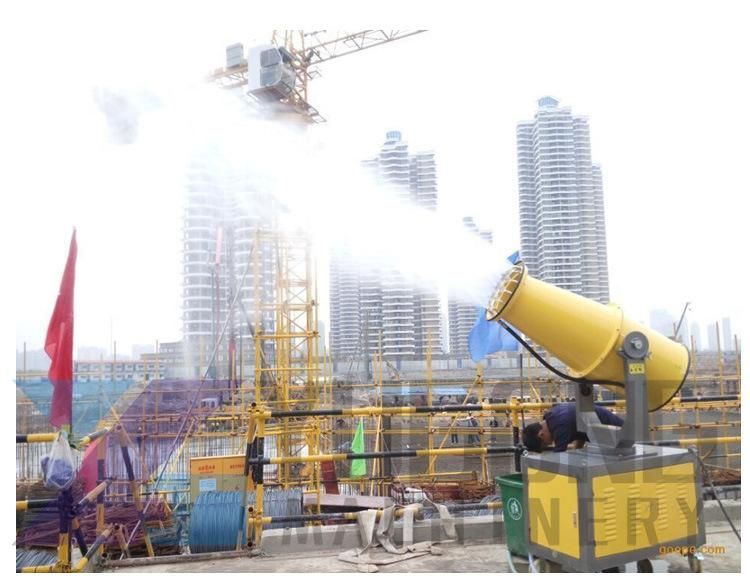

B) Demolition: Construction and demolition site is often the source of dust in the air, air pollution is the workers and residents
C) Recycling and waste storage
D) Quarries and coal mines dust suppression
E) Tunnel construction and road engineering
F) Storage and transportation of wood, coal or steel cast iron foundry,cement plant and so on
G) Chemical suppression system
H) Agriculture sprayer for pest control or garden tree spraying cannon

Technical Parameter of the Fog Cannon Machine:

Model	YG-30	YG-40
Horizontal Range	20-30m	30-40m
Horizontal Rotation	350°	350°
Pitch Angle	-10°-60°	-10°-60°
Consumption	10-20L/min (adjustable)	20-30L/min (adjustable)
Fog Size	40-200μm (adjustable)	40-200μm(adjustable)
Equipment type	Automatic / normal / standard / automatic remote control	Automatic / normal / standard / automatic remote control
Control Method	Optional	Optional
Pump Power	3KW	3KW
Fan Power	3KW	5KW
Suitable Ambient Temperature	-10°C ~ +45°C with water tank	-10°C ~ +45°C with water tank

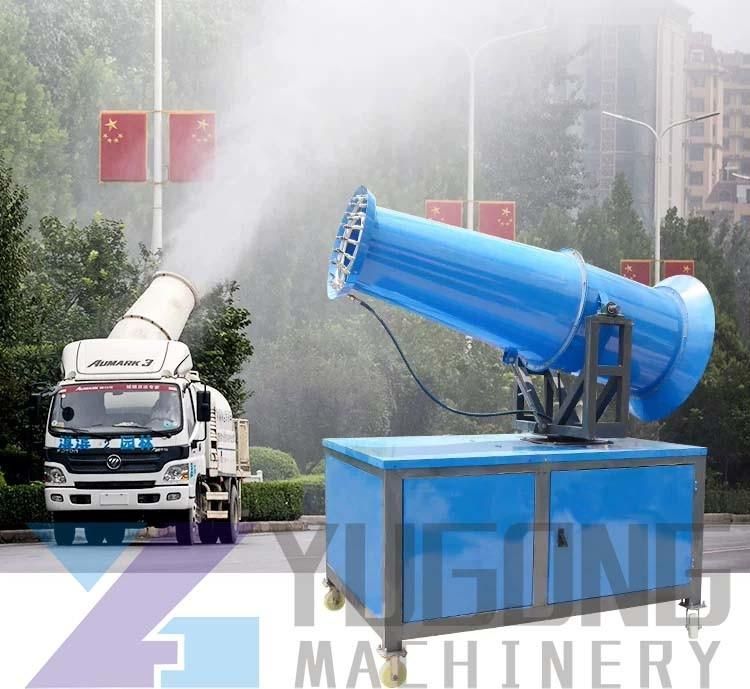

Besides the 30m 40m fog gun machine, 50m, 60m 80m 100m fog cannon is also on hot sale.
It has 4 wheels and also can be installed on the platform of concrete / steel structure, mobile vehicle and sprinkler.


Detailed Picture
The intelligent controller mainly include: high pressure dust fan, stainless steel water pump, nozzle, electric control box, remote control receiver, speed reducer, electric hydraulic push rod, rotating mechanism and the base.

Instruction:
1. Fill the tank with water
2. Connect the machine to the appropriate power supply voltage
3. First turn on the water pump and then turn on the motor to spray water for dust removal
4. The machine is divided into manual and automatic models. Manual model needs to adjust the direction of spray by operator, and the automatic models can set the direction by remote control.

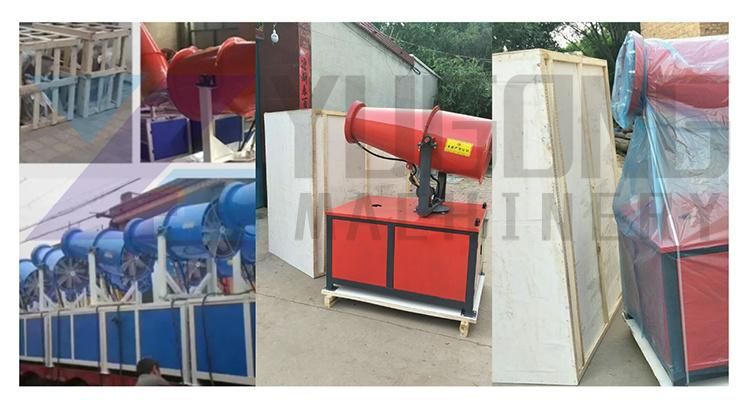

Packaging& Shipping
