• Model NO.：SZLH420b2
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Capacity(T/H)：3-20
• Pellet Size(mm)：2-18
• Power of Feeder：1.5
• Main Power (Kw)：90
• Transport Package：Pallet
• Specification：1200KG
• Trademark：FDSP
• Origin：Jiangsu China
• HS Code：8436100000
• Production Capacity：3-12,3-14t,H

Basic Info.

Model NO. SZLH420b2 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Capacity(T/H) 3-20 Pellet Size(mm) 2-18 Power of Feeder 1.5 Main Power (Kw) 90 Transport Package Pallet Specification 1200KG Trademark FDSP Origin Jiangsu China HS Code 8436100000 Production Capacity 3-12/3-14t/H

Product Description

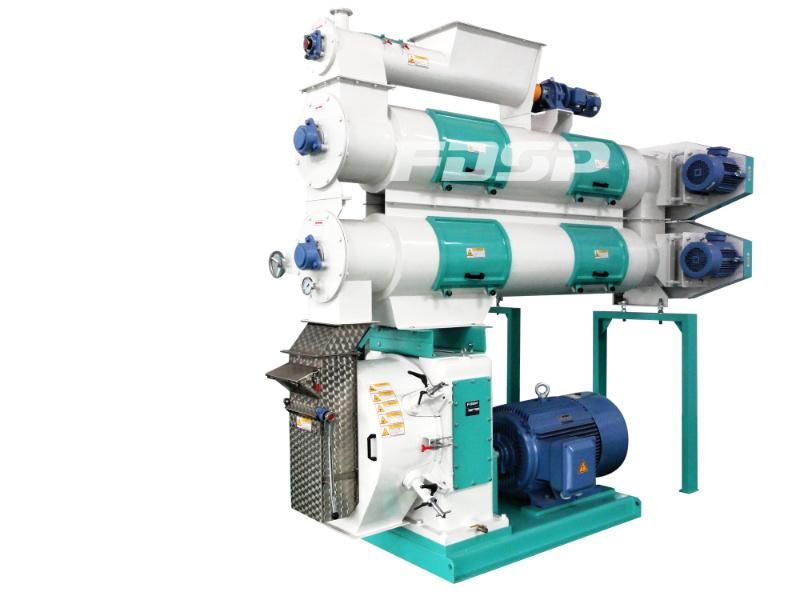

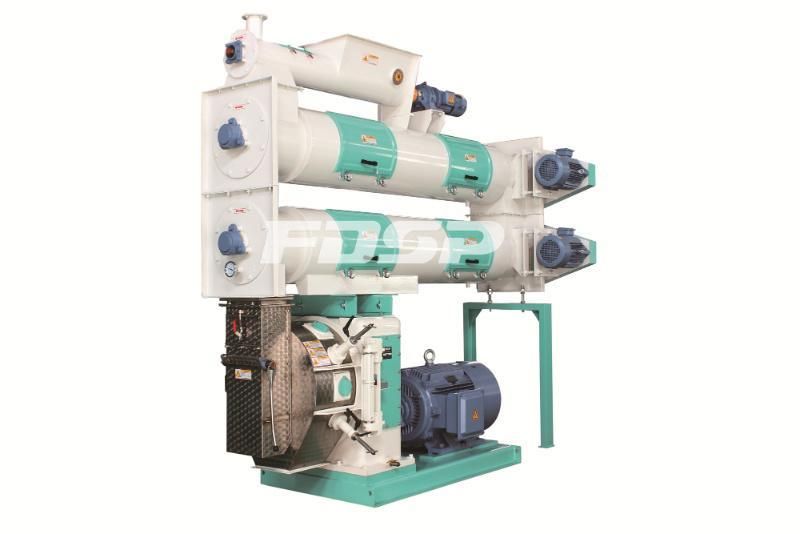

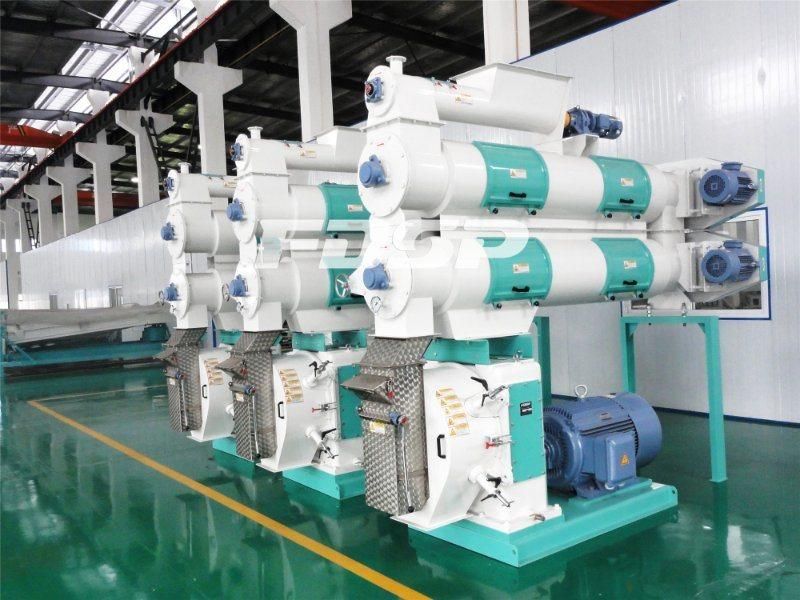

High Grade Pig Feed Pellet Mill
 We supply poultry feed pellet mill, livestock feed pellet mill, ruminant feed pellet machine, pig granulate feed machine, chicken fodder pellet mill, cow/ cattle feed granulator, horse fodder machine, feedstuff pellet mill, pellets making machine, bird feed pelletizer and so on.

SZLH400(420)b1 High grade combination of livestock and aqua feed Pellet Mill
Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;
3. All stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 PC quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.

Model	Output (t/h)	Main Power(kw)	Power of Conditioner (kw)	Power of Feeder (kw)	ID of Die (mm)	Pellet Size (mm)
SZLH400b1	3-12	75/90	5.5	1.5	400	2-18
SZLH420b1	3-14	90/110	5.5	1.5	420	2-18
