High Quality Animal Feed Pellet Making Machinery
Jiangsu Liangyou Zhengda Co., Ltd.- After-sales Service：Provided
- Type：Pellet Mill
- Processing Object：Mixed Feed
- Processing Technics：Crushing-before-Mixing
- Screen Mesh：With Screen Mesh
- Grinding Equipment Type：Feed Hammer Mill
Base Info
- Model NO.：SZLH420
- Pellet Mill Type：Ring Die Pelleter
- Bulking Machine Type：Twin Screw Bulking Machine
- Expanding Method：Wet Expansion
- Condition：New
- Applicable Materials Shape：Powder
- Warranty：1 Year
- Power(Kw)：90
- Conditioner：Stainless Steel
- Pellet Diameter：2-18
- Bearing Brand：SKF,NSK
- Motor Brand：Siemens(China)
- Transport Package：pallet
- Specification：1500KG
- Trademark：jiangsu liangyou
- Origin：china
- HS Code：8436100000
- Production Capacity：3-12t,H, 3-14t,H
Description
Basic Info.
Model NO. SZLH420 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Warranty 1 Year Power(Kw) 90 Conditioner Stainless Steel Pellet Diameter 2-18 Bearing Brand SKF/NSK Motor Brand Siemens(China) Transport Package pallet Specification 1500KG Trademark jiangsu liangyou Origin china HS Code 8436100000 Production Capacity 3-12t/H, 3-14t/HProduct Description

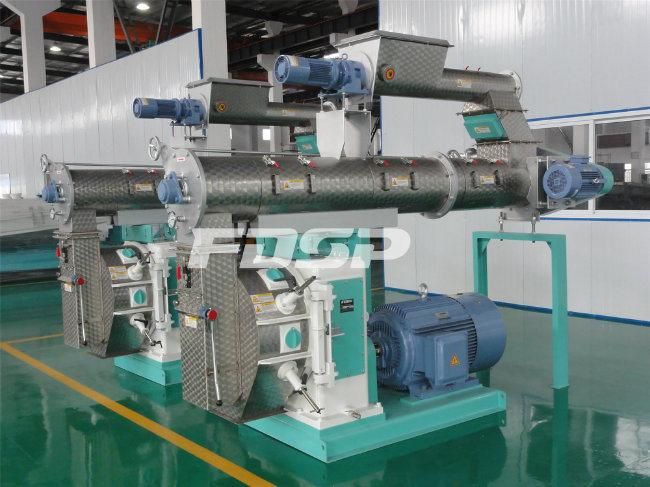

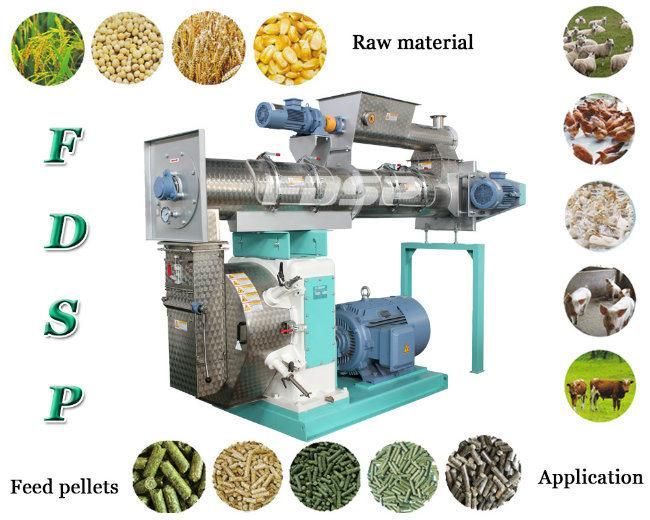

High Quality Animal Feed Pellet Making MachineryFeatures1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 PC quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
| Model | Output (t/h) | Main Power (kw) | Power Of Conditioner (kw) | Power Of Feeder (kw) | ID Of Die (mm) | Pellet Size (mm) |
| SZLH400 | 3-12 | 75/90 | 5.5/7.5 | 1.5 | 400 | 2-18 |
| SZLH420 | 3-14 | 90/110 | 5.5/7.5 | 1.5 | 420 | 2-18 |
