50-800kg/Hour Edible Vegetables Oil Making Machine/Peanut Oil Expeller

Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.
  • After-sales Service:Online Video
  • Warranty:1year, 1year
  • Structure:Vertical, Vertical
  • Press Series:Third, Third
  • Voltage:380V, 380V
  • After-Sales Service:Online Video

Base Info

  • Model NO.:YZYX140CJGX
  • Type:Spiral Oil Press
  • Appearance:Uniaxial
  • Press Materials:Sunflower
  • Condition:New
  • Customized:Customized
  • Application:Cooking Oil
  • Spare Parts:Bars, Loops, Screws
  • Product Name:Semi-Automatic Electrical Oil Expeller
  • Transport Package:Wooden Box
  • Specification:ISO, SGS, BV
  • Trademark:GUANGXIN
  • Origin:Sichuan, China
  • HS Code:84792000
  • Production Capacity:400pieces,Month

Description

Oil PlantsProcessing Capacity (t/24h)Oil content of
Dry cakes (%)
Oil yield efficiency (%)Electric power consumption (kw.h/t)Rapeseed9-11≤7.6≥82≤34Cotton seeds9-11≤6.8≥77≤54Soybean8-10≤6.5≥67≤51Peanut9-11≤6.5≥92.3≤34
1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
50-800kg/Hour Edible Vegetables Oil Making Machine/Peanut Oil Expeller

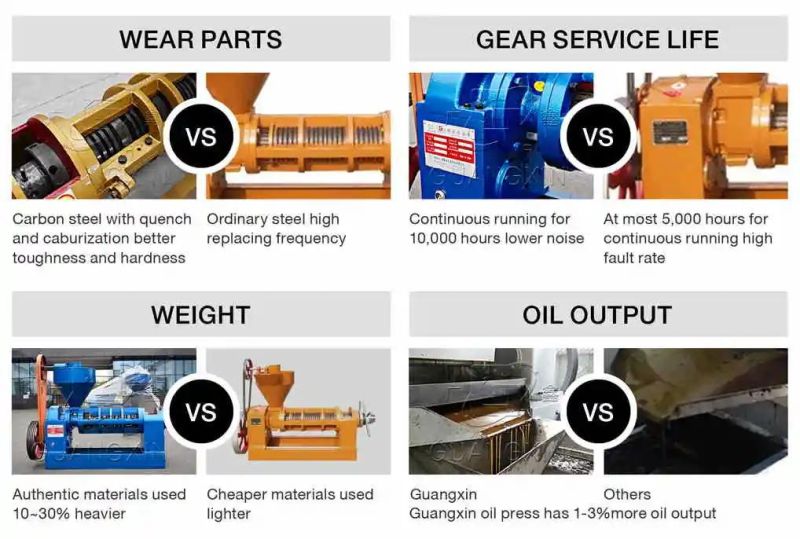

COMPARED WITH PEER
50-800kg/Hour Edible Vegetables Oil Making Machine/Peanut Oil Expeller

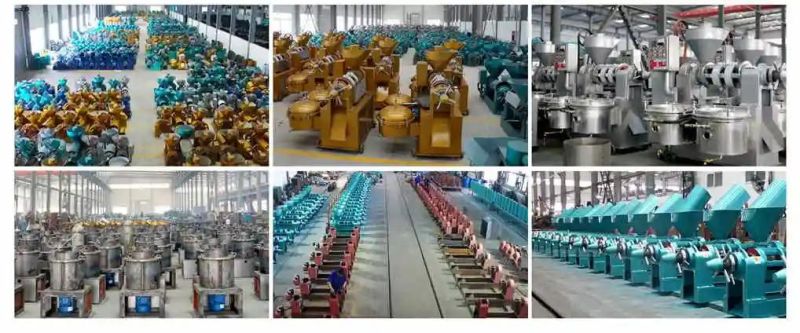

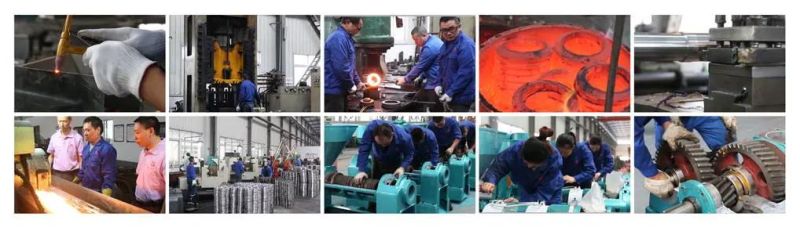

Company Information

50-800kg/Hour Edible Vegetables Oil Making Machine/Peanut Oil Expeller
50-800kg/Hour Edible Vegetables Oil Making Machine/Peanut Oil Expeller
50-800kg/Hour Edible Vegetables Oil Making Machine/Peanut Oil Expeller
50-800kg/Hour Edible Vegetables Oil Making Machine/Peanut Oil ExpellerFAQQ: Are you a factory or trading company ?
A: We are factory with 30year's manufacturing experiences, and we also have our own trading company . our main products including :screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.


Q: How can we verify that you are a factory ?
A: You can add our contact information and we will show our factory to you online.


Q: If i don't know how to operate this machine ? How can i do ?
A: Our machine has been tested ok and fully assembled before shipping, customer just needs to make 2-4hours wear-in and then can work.

Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.


Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 tims to get maximum oil.

Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (we produce seeds roaster heated by economical fuel.)

Q:What serivice do you provide?
A: (1) 1year free warranty, whole lifetime maintenance.
    (2) Supplying wearing parts all year around.
    (3) Supplying technical solutions at any time.
    (4) Helping design and plan the oil plants construction.

    (5) Providing installation video.
    (6) Developing agents with good policies around world.

Q: How can i become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.


We will appreciated if these following 2 tips contained in your inquiry. Tips1.The raw material is:_______ Tips2.The capacity of the machine you need is:______ Thank you and looking forward to your inquiry,we will response immediately.

Make order right now! And why?

One of our clients called us for buying wearing parts and he told us that his machine bought from us in 1990s. Its really! So, don't worry about the quality. Its beter than your think!


30YEARS FACTORY ---------- your honest partner
